_____________________________________________________________________________________________________
ASSEMBLY & OPERATING INSTRUCTIONS
Model No.
Model No.
TABLE OF CONTENTS
SAFETY INSTRUCTIONS ..............................................................................................................
ASSEMBLY INSTRUCTIONS .....................................................................................................
INSTALLATION INSTRUCTIONS.......................................... ............................................
LIGHTING & OPERATING INSTRUCTIONS ........................................................................................
CLEANING & MAINTENANCE .................................................................................................. ........
TROUBLESHOOTING ....................................................................................................................
PARTS LIST .................................................................................................................................
WARRANTY...................................................................................................................................
READ THE FOLLOWING INSTRUCTIONS CAREFULLY AND BE SURE YOUR GRILL IS PROPERLY INSTALLED,
ASSEMBLED AND CARED FOR. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS BODILY
INJURY AND/OR PROPERTY DAMAGE. IF YOU HAVE QUESTIONS CONCERNING ASSEMBLY OR OPERATION,
CONSULT YOUR DEALER, GAS APPLIANCE SERVICE REPRESENTATIVE OR YOUR GAS COMPANY
NOTE TO INSTALLER:
LEAVE THESE INSTRUCTIONS WITH THE CONSUMER AFTER INSTALLATION.
NOTE TO THE CONSUMER
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THIS OUTDOOR COOKING GAS APPLIANCE IS NOT INTENDED TO BE INSTALLED IN OR ON RECREATIONAL
VEHICLES AND/OR BOATS.
Ontario, California 91762
06328

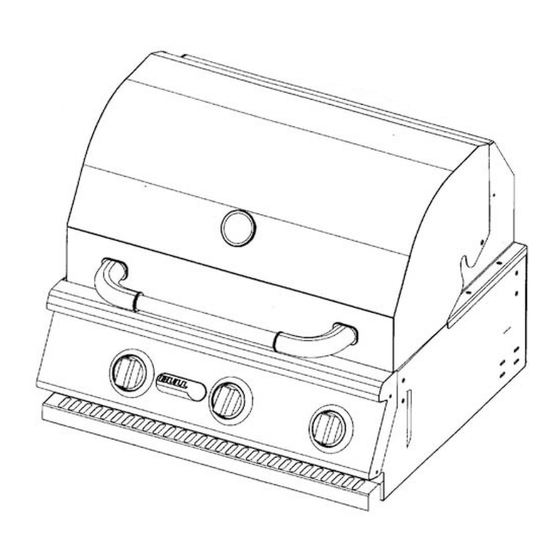

3 Burner Stainless Steel, Built-In LP
06329
3 Burner Stainless Steel, Built-In NG
1
PAGE
2
4
5
10
12
13
14
16
Revision
11/2005
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bull 06328
Summary of Contents for Bull 06328
-
Page 1: Table Of Contents
Ontario, California 91762 _____________________________________________________________________________________________________ ASSEMBLY & OPERATING INSTRUCTIONS Model No. 06328 3 Burner Stainless Steel, Built-In LP Model No. 06329 3 Burner Stainless Steel, Built-In NG TABLE OF CONTENTS PAGE SAFETY INSTRUCTIONS ………………………………………………………………………………..……………… ASSEMBLY INSTRUCTIONS ………………………………………………………………………….………..….. INSTALLATION INSTRUCTIONS…………………………………… ……………………….………..….. LIGHTING & OPERATING INSTRUCTIONS ……………………………………………………………………..……... -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Read carefully before assembling and operating your gas grill This gas grill must be installed in accordance with local codes or, if in an area without local codes, with the latest edition of the National Fuel Gas Code ANSI Z223.1. In Canada, installation must conform to the standard CAN/ CGA 1-b149.1 and/or .2 (Installation Code for Gas Burning Appliances and Equipment) and any local codes. -
Page 3: Natural Gas Safety
NATURAL GAS SAFETY Your Natural Gas grill is designed to operate on natural gas ONLY, at a pressure of 4” water column (W.C.) regulated at the natural gas regulator attached at the back of the grill. Check with your gas utility for local gas pressure and with your local municipality for building code requirements. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS The grill is assembled and fire tested. There are three piece trims need to be assembled for built-in. Install OPTIONAL Rotisserie Kit Remove two screws on left side of grill hood and put motor bracket on it. Replace two bolts back. You can leave this motor bracket all the time. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING YOUR GAS GRILL NOTE TO INSTALLER: Leave these instructions with the consumer for future reference. Your grill must be installed in accordance with all local building codes. SPECIFICATIONS FOR BARBECUE STRUCTURE For Propane Gas LP TANK STORAGE AREA MUST BE ISOLATED FROM GRILL AND VENTED. Do not use any combustible materials for this construction. - Page 6 OUTDOORS NATURAL GAS BBQ INSTALLATION PECIFICATIONS NOTE: Vents must be provided for combustion air on both sides of built-in cabinet. When choosing a location for your gas grill keep in mind that it should never be located under any overhead combustible construction.
- Page 7 OUTDOORS PROPANE GAS BBQ INSTALLATION PECIFICATIONS NOTE: Vents must be provided for combustion air on both sides of built-in cabinet. When choosing a location for your gas grill keep in mind that it should never be located under any overhead combustible construction.
- Page 8 INSPECTING I CLEANING BURNERS AND GAS VALVE ORIFICES By following these cleaning procedures on a timely basis, your grill will be kept clean and working properly with minimum effort. BURNER CLEANING 1. Remove burner from the grill bowl (See drawing on right). Bend a stiff wire (a light-weight coat hanger works well) into a small hook as shown below.
- Page 9 COOKING COMPONENT INSTALLATION IMPORTANT: Before first use wash flame tamers, cooking grids, and warming rack with warm, soapy water. Rinse and dry thoroughly. Season metal surfaces with cooking oil occasionally. (After cooking is completed, turn grill to high setting for NO MORE THAN five minutes to burn off excess grease or food residue) CAUTION: DO NOT LEAVE GRILL UNATTENDED.
-
Page 10: Lighting & Operating Instructions
LIGHTING & OPERATING INSTRUCTIONS LIGHTING PROCEDURES Lighting Main Burner(s): 1. Become familiar with safety guidelines at front of manual. DO NOT SMOKE WHILE LIGHTING GRILL OR CHECKING GAS SUPPLY CONNECTIONS 2. If your grill fuel source is a LP gas cylinder, check to see that cylinder is filled. 3. - Page 11 LIGHTING & OPERATING INSTRUCTIONS Cooking With Indirect Heat: You can cook poultry and large cuts of meat slowly to perfection on one side of the grill by indirect heat from the next burner. The heat from the lighted burner circulates gently throughout the grill, cooking the meat or poultry without any direct flame touching it.
-
Page 12: Cleaning & Maintenance
CLEANING & MAINTENANCE CLEANING THE COOKING GRIDS After cooking, turn control knobs to “OFF” and let grill cool before attempting to clean your cooking grids. Before first use and periodically it is suggested that you wash the cooking grids in a mild soap and warm water solution. You can use a washcloth or a vegetable brush to clean your cooking grids. -
Page 13: Troubleshooting
TROUBLESHOOTING If grill fails to operate properly 1. Turn off gas at source, turn control knobs to “OFF”, and wait five minutes before trying again 2. Check gas supply/connections. 3. Repeat lighting procedure and, if grill still fails to operate properly, TURN “OFF” GAS AT SOURCE, TURN CONTROL KNOBS TO “OFF”, wait for grill to cool, and check the following: a. -
Page 14: Parts List
PARTS LIST Model No. 06328 3 Burner Stainless Steel, LP Model No. 06329 3 Burner Stainless Steel, NG REF# DESCRIPTION REF# DESCRIPTION LID-FRONT Handle End Cap - Right LID-REAR Handle End Cap - Left BOWL ASSEMBLY Trim Kit - Back... - Page 15 ILLUSTRATED PARTS LIST...
-
Page 16: Warranty
LIMITED WARRANTY Bull Outdoor Products, Inc. warrants to the original purchaser at the original site of delivery with proof of purchase of each Outdoor Gas Grill that when subject to normal residential use, it is free from defects in workmanship and materials for the periods specified below. This warranty excludes grills used in rental or commercial applications.
