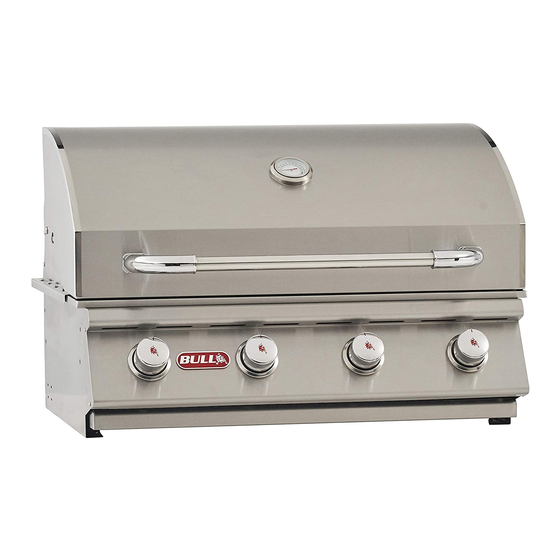

30 INCH GRILL HEADS ASSEMBLY & OPERATING INSTRUCTIONS OUTLAW LONESTAR SELECT ANGUS MODEL #26038 (L.P.) MODEL #87048 (L.P.) MODEL #47628 (L.P.) MODEL #26039 (N.G.) MODEL #87049 (N.G.) MODEL #47629 (N.G.) WARNING DANGER Do not store or use gasoline • If you smell gas: or other flammable liquids •Shut off gas to the appliance.
TABLE OF CONTENTS PAGE # SAFETY INSTRUCTIONS2 GRILL OPERATIONAL SAFETY....................................3 CHECKING FOR GAS LEAKS ....................................4 LIQUID PROPANE GAS SAFETY .................................... 5 LIQUID PROPANE TO NATURAL GAS CONVERSION……………………………………………………………………………………………………..6 NATURAL GAS SAFETY…………………………………………………………………………………………………………………………………………6 INSTALLATION INSTRUCTIONS GRILL LOCATION ........................................7 GRILL VENTILATION ........................................ 7 GRILL VENTILATION WHEN INSTALLED INTO ISLANDS FOR ENCLOSURES………………………………………………………………………..8 LP GAS CONNECTION SPECIFICATIONS FOR ISLANDS AND ENCLOSURE ....................
SAFETY INSTRUCTIONS GRILL OPERATIONAL SAFETY WARNING! FOR YOUR SAFETY, READ THE GUIDELINES BELOW FOR ASSEMBLY AND OPERATION OF YOUR GRILL. DUE TO SPIDER WEBS YOUR GAS GRILL IS ONLY FOR OUTDOOR USE. CAUTION: BURNERS MUST BE INSPECTED AND PROTECT CHILDREN: DO NOT ALLOW CHILDREN TO OPERATE CLEANED BEFORE FIRST USE.
GRILL OPERATIONAL SAFETY (CONTINUED) WARNING! FOR YOUR SAFETY... DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. DO NOT store empty or full spare gas cylinders and/or chemicals under or near this or any other appliance. Keep the fuel hose away from hot surfaces.
VISUALLY INSPECT THE LP HOSE PRIOR TO EACH USE FOR CUTS, CRACKS, EXCESSIVE WEAR OR DAMAGE. IF FOUND ASSEMBLY SHOULD BE REPLACED, USE ONLY THE BULL PART NUMBERS SHOWN IN THE PARTS LIST SUPPLIED WITH THIS UNIT. THE REPLACEMENT HOSE ASSEMBLY SHALL BE THAT SPECIFIED BY THE MANUFACTURER.
LIQUID PROPANE GAS TO NATURAL GAS CONVERSION Gas valves are pre-set at the Bull factory to operate on LP Gas or Natural Gas. If you wish to convert to a different gas type, other than LP or NG, be sure to contact your grill dealer, licensed plumber or authorized service center for further details. Conversion kits are not sold to the general public and require a professional to perform service.
THE LOCATION AND INSTALLATION OF YOUR GRILL PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING YOUR GAS Your Built-in Gas Grill comes to you fully assembled. We strongly recommend professional installation and hook up of the Gas BBQ grill. These instructions will provide you with the measurements necessary for you or your builder to construct a masonry structure for your outdoor gas grill.
GRILL VENTILATION INSTRUCTIONS WHEN USING BUILT-IN CABINETS 1) Vents must be provided for combustion air and ventilation on both sides of built-in cabinet. 2) When choosing a location for your gas grill keep in mind that it should never be located under any overhead combustible construction.
LIQUID PROPANE GRILL INSTALLATION SPECIFICATIONS Vents must be provided for combustion air and ventilation on both sides of built-in cabinet. When choosing a location for your gas grill keep in mind that it should never be located under any overhead combustible construction.
Below are the requirements with supportive illustrations for an LP Tank enclosure and how to install a Tank Retention System which can be obtained through your Bull Dealer: Per CSA the following is required that any built-in cabinet must have enough room for only 1 LP tank.
NATURAL GAS CONNECTION TO GRILL IMPORTANT: Bull Outdoor Products does not recommend the use of any quick connect fittings or lines to the unit. Use of these types of fittings or lines could cause low gas flow and greatly reduce the performance of the unit Do not use Teflon ®...
LIGHT SYSTEM TRANSFORMER INSTALLATION NOTE: Per illustration below, the transformer must be installed at least 6” above the ground to ensure transformer and interior light system longevity. The transformer has mounting holes so you can fasten to the frame inside your island or grill enclosure. Since we don’t know what material, you’ll be mounting to you’ll need to provide your own fasteners to complete.
GRILL ‘FIRST USE’ LIGHTING PROCEDURE • DO NOT SMOKE WHILE LIGHTING GRILL OR CHECKING GAS SUPPLY • CONNECTIONS BECOME FAMILIAR WITH THE SAFETY GUIDELINES AT THE FRONT OF THE MANUAL • DO NOT LEAVE GRILL UNATTENDED DURING USE • DO NOT MOVE GRILL DURING USE •...
Page 14
GRILL STANDARD LIGHTING PROCEDURE DO NOT SMOKE WHILE LIGHTING GRILL OR CHECKING GAS SUPPLY CONNECTIONS! Set ALL BBQ Grill control knobs to “OFF” and open gas supply, LP cylinder or Control Knob Natural Gas Valve. Control Knob ‘OFF’ Position HIGH’ LIGHTING MAIN BURNER(S): 1.
Page 15
TO LIGHT GRILL WITH A FIREPLACE-TYPE MATCH NOTE: To light gas grill with a fireplace-type match, follow steps 1 through 6 above. Remove cooking grid and flame tamer from burner you wish to light. Using provided Lighting Rod to hold a lighted fireplace type match or long-necked butane lighter placing flame near to burner ports.
COOKING COMPONENT INSTALLATION, CAUTION, BEFORE YOU START: Turn off the gas supply at the gas supply source first It is recommended you protective gloves to operate the grill when handling any components with transferred heat temperature. Do not move the grill during use. Check gas valve orifices, burner tubes and burner ports for any obstructions PER DRAWING BELOW: Place stainless steel heat shields on lowest ledge under / between burners in grill insert.
ROTISSERIE SYSTEM INSTALLATION TO ANGUS GRILL 1) The trolley thumb screw should be located on the inside of the grill, screw the knurled nut on next, the counterweight is then added and then screw on the black handle. 2) To adjust the counterweight, loosen the black handle and slide the counterweight up or down to properly position the weight of the food being cooked.
BURNER REMOVAL INSTRUCTIONS Your grill has 4 cast stainless steel burners that have cotter pins to keep the burners in place during shipping. You’ll need to remove the cotter pins to allow burner removal for inspection and or cleaning. The cotter pins can be discarded or retained in case the grill is relocated. If your grill has the gas supply already installed, please follow these safety instructions.
REMOVING CAST SST BURNERS FROM YOUR GRILL (CONTINUED) To remove burners, remove cotter pin and lift the burner out of the retaining hole enough to clear so you slide the burner free from the gas valve tip as shown. To re-install burners, install burner back on gas valve tip far enough to allow the burner retainer post to go back into retaining hole on grill.
INSTALLING BURNERS BACK IN GRILL Note, there’s no need to use the cotter pin while installing the back into position. If is for shipping purposes only. IMPORTANT NOTE Check the burner to make sure it is proper located after replacing. Make sure the valve orifices are inside the burner tubes (see illustration below).
GRILL LIGHTING SYSTEM LIGHT BULB REPLACEMENT INSTRUCTIONS Remove screw with a small Phillips screwdriver. Caution: Glass cover may be loose, ensure the cover is properly supported before completely removing the screw. GLASS COVER There is a metal clip that clamps onto the glass cover and snaps into the light housing on the screw end.
Grease will not be able to drip down into the grease collector and a grease fire could occur. It is that you use Bull Grease Tray Liners for ease clean up and maintenance. STAINLESS STEEL CLEANING AND MAINTENANCE Your Grill’s outstanding lustre and durability is attributed to Stainless Steel construction.
Page 23
CLEANING (CONTINUED) REQUIRED INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS THAT MUST BE FOLLOWED PER ANSI Z210.58-CSA 1.6-2019 SECTION 4.24.2a FOR ALL OUTDOOR COOKING GAS APPLIANCES. I. Installation must conform with local codes or, in the absence of local codes, with either of the following as applicable: a.
TROUBLESHOOTING NEVER SMOKE DURING TROUBLESHOOTING IF GRILL FAILS TO OPERATE PROPERLY 1) Turn off gas at source, turn control knobs to “OFF”, and wait five minutes before trying again. 2) Check gas supply/connections. Repeat lighting procedure. If Grill still fails to operate properly, TURN “OFF” GAS AT SOURCE, TURN CONTROL KNOBS TO “OFF”, wait for grill to cool, and check for the following potential causes below and how to address: MISALIGNMENT OF BURNER TUBE(S) OVER ORIFICE(S) / CORRECTION: Reposition burner tube to properly seat over orifice.
Any item with a next to it requires a serial number) # NO. USED IN WARRANTY PARTS LIST PART DESCRIPTION PERIOD ILLUSTRATION BULL * INDICATES GRILL (YEARS) (NEXT PAGE) PART NO. SERIAL NUMBER REQUIRED 47003 INSERT ASSEMBLY (2016 & OLDER MODELS)
Page 27
OUTLAW GRILL REPLACEMENT PARTS ILLUSTRATION...
LONESTAR SELECT GRILL REPLACEMENT PARTS LIST MODEL #87048 LP & #87049 NG ( Any item with an * next to it requires a serial number) NUMBER USED ON BULL DESCRIPTION WARRANTY ILLUSTRATION, PG 33 PART NO. * SERIAL NUMBER REQUIRED...
Page 29
LONESTAR SELECT GRILL REPLACEMENT PARTS ILLUSTRATION...
ANGUS GRILL REPLACEMENT PARTS LIST MODEL #47628 LP & #47629 NG ( Any item with an * next to it requires a serial number) NUMBER USED ON BULL DESCRIPTION WARRANTY ILLUSTRATION, PG 33 PART NO. * SERIAL NUMBER REQUIRED PERIOD (YEARS) 47003 INSERT ASSEMBLY (2016 &...
Page 31
ANGUS GRILL REPLACEMENT PARTS LIST ILLUSTRATION...
ROTISSERIE SYSTEM PARTS LIST WITH EXPLODED ILLUSTRATION AND INSTALL INSTRUCTIONS PARTS DESCRIPTION MOTOR 16552 W/SWITCH MOTOR MOUNT 16554 BRACKET 16551 30" GRILL SPIT ROD LARGE 4-PRONG SPIT 16553 FORK 16591 SHAFT COLLAR 1/4-20 16587 THUMBSCREW 16675 KEY WASHER 16586 COUNTER-BALANCE BLACK PHENOLIC 16585...
MAY NOT APPLY TO YOU. WHO MAY USE THIS WARRANTY? BULL OUTDOOR PRODUCTS, INC. located at address 1011 East Pine St. Lodi, CA. 95240 ("we") extend this limited warranty only to the consumer who originally purchased the product ("you") at the original site of delivery or installation. It does not extend to any subsequent owner or other transferee of the product.
Page 34
Warranty Policy (Continued) Grill Warranty Periods The following parts are covered for one year on all our current gas grill models: The lid, control panel, grease tray, bezels, knobs, temperature gauge, valves, regulator, flex tubes, rotisserie burner, transformer, and all components of the lighting system. The following parts are covered for three years on all our current gas grill models: The manifold, handle end caps, flame tamers, heat shields, and warming rack.
Page 35
Warranty Policy (Continued) WHAT DOES THIS WARRANTY NOT COVER? This limited warranty does not cover any damage due to: (a) transportation; (b) storage; (c) improper installation or use; (d) use on improper fuel/gas supply; (e) failure to follow the product instructions or to perform any preventive maintenance; (f) modifications; (g) unauthorized repair; (h) normal wear and tear;...
