GB
Table of contents
:
1
MODE - MENUE __________________________________________________________ 26
2
Technical data _____________________________________________________________ 27
2.1
KERN 572 __________________________________________________________________ 27
2.2
KERN 573 __________________________________________________________________ 28
2.3
KERN KB __________________________________________________________________ 29
2.4
KERN FKB _________________________________________________________________ 29
2.5
KERN DS ___________________________________________________________________ 30
3
Fundamental information (general) ___________________________________________ 31
3.1
Intended use_________________________________________________________________ 31
3.2
Inappropriate use ____________________________________________________________ 31
3.3
Guarantee __________________________________________________________________ 31
3.4
Monitoring the test substances__________________________________________________ 31
4
Fundamental safety information ______________________________________________ 32
4.1
Observe the information in the operating instructions ______________________________ 32
4.2
Staff training ________________________________________________________________ 32
5
Transport and storage _______________________________________________________ 32
5.1
Acceptance check ____________________________________________________________ 32
5.2
Packaging___________________________________________________________________ 32
6
Unpacking, installation and commissioning _____________________________________ 32
6.1
Place of installation, place of use ________________________________________________ 32
6.2
Unpacking __________________________________________________________________ 33
6.2.1
Installation _______________________________________________________________________ 33
6.3
Mains supply ________________________________________________________________ 33
6.4
Connecting peripheral equipment _______________________________________________ 33
6.5
Initial start-up _______________________________________________________________ 33
6.6
Adjustment _________________________________________________________________ 33
6.7
Adjusting ___________________________________________________________________ 33
6.7.1
Adjusting for verification (KERN 573) _________________________________________________ 34
6.8
Verification _________________________________________________________________ 34
24
KERN 572/573/KB/DS/FKB
Version 5.1 05/2006
Operating Instructions

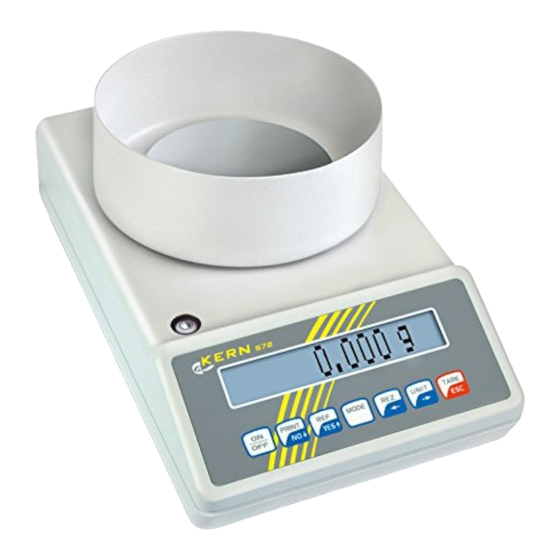

Electronic Precision and Platform Balances
572/573/KB/DS/FKB-BA-defsi-0651
Advertisement
Table of Contents
Related Manuals for KERN KB Series
Summary of Contents for KERN KB Series
-
Page 1: Table Of Contents
Place of installation, place of use ________________________________________________ 32 Unpacking __________________________________________________________________ 33 6.2.1 Installation _______________________________________________________________________ 33 Mains supply ________________________________________________________________ 33 Connecting peripheral equipment _______________________________________________ 33 Initial start-up _______________________________________________________________ 33 Adjustment _________________________________________________________________ 33 Adjusting ___________________________________________________________________ 33 6.7.1 Adjusting for verification (KERN 573) _________________________________________________ 34 Verification _________________________________________________________________ 34 572/573/KB/DS/FKB-BA-defsi-0651... - Page 2 Operation _________________________________________________________________ 35 Display control panel _________________________________________________________ 35 Operation ___________________________________________________________________ 36 7.2.1 Weighing with Tare ________________________________________________________________ 36 7.2.2 Count – Selection Preference Piece ____________________________________________________ 36 7.2.3 Percent % ________________________________________________________________________ 36 7.2.4 Formula Weighing _________________________________________________________________ 36 7.2.5 Tolerance Weighing ________________________________________________________________ 36 7.2.6 Adjust ___________________________________________________________________________ 38 7.2.7...
-
Page 3: Mode - Menue
1 MODE - MENUE MODE CAL? PLACE CAL Mode WEIGHT Manufacture Setting: COUNT? REF=1 N/ Y Mode Mode REF=5 Count?: Mode REF10: REF=10 Mode 9600bd: REF=20 Preselect Mode Units?: g/kg Mode Preselect Tare? 0.000g Mode Autotare: Mode Fast: AUTOTARE? Mode FAST Mode AUTO OFF? -
Page 4: Technical Data
2 Technical data 2.1 KERN 572 KERN 572-31 572-33 572-35 572-45 572-49 572-57 Readout 0,001 g 0,01 g 0,01 g 0,1 g 0,1 g 0,2 g Weighing range 161 g 1.210 g 1.510 g 12.100 g 15.100 g 20.100 g... -
Page 5: Kern 573
2.2 KERN 573 KERN 573-46 573-52 Class of accuracy Readout (d) 0,1 g 0,2 g Verification value (e) Weighing range (max.) 6500 g 13000 g Minimum load (Min) Taring range (subtractive) 6500 g 13000 g Reproducibility 0,1 g 0,2 g Linearity ±0,2 g... -
Page 6: Kern Kb
2.3 KERN KB KERN KB100-3 KB1000-2 KB10000-1 Readout 0,001 g 0,01 g 0,1 g Weighing range 101 g 1010 g 10.100 g Taring range (subtractive) 101 g 1000 g 10.100 g Reproducibility 0,001 g 0,01 g 0,1 g Linearity ±0,003 g ±0,03 g... -
Page 7: Kern Ds
2.5 KERN DS DS16 DS36 DS36 DS65 DS100 DS150 KERN K0.05 S K0.1S K0.1 K0.2 K0.5 K0.5L Readout 0,05 g 0,1 g 0,1 g 0,2 g 0,5 g 0,5 g Weighing range 4.100 g 8.100 g 8.100 g 16.100 g 36.100 g 36.100 g... -
Page 8: Fundamental Information (General)
For this purpose, the answerable user must define a suit- able interval as well as the nature and scope of this check. Information is available on KERN’s home page (www.kern-sohn.com) with regard to the monitoring of balance test substances and the test weights required for this. -
Page 9: Fundamental Safety Information
Observe the information in the operating instructions Please read the operating instructions carefully before erecting and commissioning, even if you already have experience with KERN balances. Staff training The device may only be operated and looked after by trained members of staff. -
Page 10: Unpacking
Electric power supply is by means of the external mains supply circuit. The printed voltage level must comply with the local voltage. Only use original KERN mains supply circuits. The use of other makes is subject to approval by Kern. Connecting peripheral equipment The balance must be disconnected from the mains before connecting or disconnecting additional equipment (printer, PC) to or from the data interface. -
Page 11: Adjusting For Verification (Kern 573)
6.7.1 Adjusting for verification (KERN 573) General Information: Prior to the procedure of verification the balance has to be adjusted. Remark: The adjusting is only possible when not being blocked by the adjusting switch. The switch for this step is located at the bottom of the housing between the two turning feet. -
Page 12: Operation
7 Operation 7.1 Display control panel Keyboard ON / OFF Print weighing result in MODE: No / descending in % and counting mode: Form reference in MODE: Yes / ascending MODE configuration (see mode structure diagram page 2) Formula weighing in MODE: to left Change g-pieces Unit changeover... -
Page 13: Operation
7.2 Operation 7.2.1 Weighing with Tare 7.2.2 Count – Selection Preference Piece 7.2.3 Percent % 7.2.4 Formula Weighing 7.2.5 Tolerance Weighing 572/573/KB/DS/FKB-BA-defsi-0651... - Page 14 572/573/KB/DS/FKB-BA-defsi-0651...
-
Page 15: Adjust
7.2.6 Adjust 7.2.7 Preselect Tare 7.2.8 Auto Tare 7.2.9 Speed 7.2.10 Auto Off 7.2.11 Variable Factor 7.2.12 Preselect Unit 572/573/KB/DS/FKB-BA-defsi-0651... - Page 16 572/573/KB/DS/FKB-BA-defsi-0651...
-
Page 17: Interface Rs 232 C
Baud rate adjustable to 2400, 4800 and 9600 baud (default), 19200 baud Sup-D- 9 pol. is necessary . When working with an interface correct operation is secured only if the corresponding KERN-interface- cable (max. 2m) is used. Description of the jack Sup-D- 9 pol. -
Page 18: Description Of The Data Transfer
7.4.2 Description of the data transfer Structure of each data transfer: Without Numerator: Bit-Nr. Blank or % in the range of zero point. B, 0, , g: Blank or weighing value with unit, depending on the load on the weighing plate. Carriage Return Line Feed With Enumerator:... -
Page 19: Maintenance, Upkeep, Disposal
Loose sample residue/powder can be removed carefully using a brush or hand vacuum cleaner. Remove any spilt material to be weighed immediately. Maintenance, upkeep The device may only be opened by trained service engineers authorised by KERN. Disconnect from the mains supply before opening. Disposal The operating company shall dispose of the packaging and the device in compliance with the valid national or regional law of the operating location. -
Page 20: Declaration Of Conformity
EN 61000-3-3: 1995 + A1: 1998 + A1/A2 1998 +A2:2001 + A14 2000 If a change is made to the above mentioned appliances without consulting KERN this declaration will become invalid. Date: 07/01/2004 Signature: Gottl. KERN & Sohn GmbH Management Gottl. - Page 21 Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è confor- me alle norme di seguito citate. Balance lines: Mark applied EU Directive Standards 89/336EEC EMC EN45501 EN55022 Date: 03.06.2004 Signature: Gottl. KERN & Sohn GmbH Management Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-07433/9933-0,Fax +49-074433/9933-149 572/573/KB/DS/FKB-BA-defsi-0651...
- Page 22 Questa dichiarazione sarà valida solo se accompagnata dal certificato di conformità della parte nominale. Model: EU Directive Standards EC-type-approval Issued by certificate no. 90/384/EEC EN45501 D04-09-019 Date: 03.06.2004 Signature: Gottl. KERN & Sohn GmbH Management Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-07433/9933-0,Fax +49-074433/9933-149 572/573/KB/DS/FKB-BA-defsi-0651...
