Installation instructions weighing bridge
(600-6000 kg)

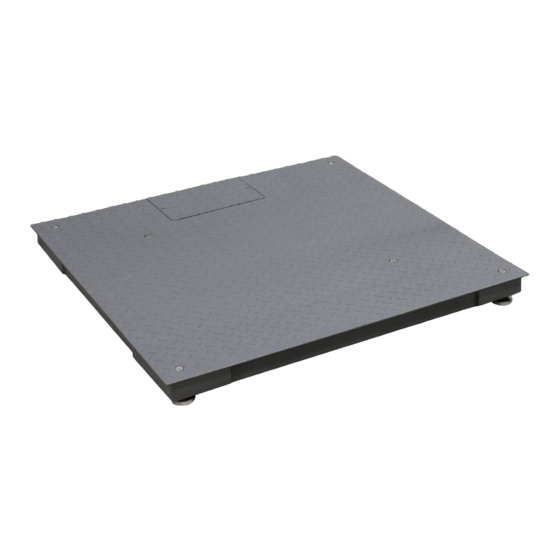

KERN KFP V20
Version 1.4
11/2015
GB
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
KFP V20_600-6000-IA-e-1514
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KFP V20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KERN KFP V20

  • Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Installation instructions weighing bridge (600-6000 kg) KERN KFP V20 Version 1.4 11/2015 KFP V20_600-6000-IA-e-1514...
  • Page 2: Table Of Contents

    KERN KFP V20 Version 1.4 11/2015 Installation instructions weighing bridge (600-6000 kg) Contents General ......................3 Technical data ....................3 Basic Information (General) ................4 Documentation ........................... 4 Proper use ..........................4 Improper Use ..........................4 Warranty ............................. 4 Monitoring of Test Resources ....................5 Basic Safety Precautions ................
  • Page 3: General

    1 General These installation instruction contain all data necessary for placing and commissioning the following weighing bridges: KERN KFP 600V20SNM KERN KFP 600V20NM KERN KFP 1500V20SNM KERN KFP 1500V20NM KERN KFP 3000V20NM KERN KFP 3000V20LNM KERN KFP 6000V20M 2 Technical data...
  • Page 4: Basic Information (General)

    The weighing system unit may only be operated in accordance with the described default settings. Other areas of use must be released by KERN in writing. 3.4 Warranty Warranty claims shall be voided in case •...
  • Page 5: Monitoring Of Test Resources

    In KERN's accredited DKD calibration laboratory test weights and weighing systems may be calibrated (return to the national standard) fast and at moderate cost.
  • Page 6: Unpacking, Setup And Commissioning

    6 Unpacking, Setup and Commissioning 6.1 Installation Site, Location of Use The weighing bridges are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your weighing system.
  • Page 7: Unpacking, Scope Of Delivery

    6.2 Unpacking, Scope of delivery Danger for the back! The weighing bridge is relatively heavy. Always use a suitable lifting device to lift it out of the packaging or to transport it to the required installation site. CAUTION Do not step under the suspended load, risk of injury! ...
  • Page 8 Scope of delivery: • Weighing bridge with assembled connection cable • 4 weighing cell feet • 2 eye bolts • Operating instructions According to the version, for assembling the weighing bridge the following accessories (optional) must be available: (A) 2 access ramps (B ) 1 access ramp and 1 foot plate set (C ) 2 foot plate sets KFP V20_600-6000-IA-e-1514...
  • Page 9: Assembly, Levelling

    6.3 Assembly, levelling Accurate weighing results require a weighing bridge with perfect horizontal alignment. During initial installation and after each change of work area it is necessary to level the weighing bridge. Placing the weighing bridge: 1. Prior to the final placing, install the four weighing cell feet. 2.
  • Page 10 Installation of the weighing bridge in pits for barrier-free access Order the suitable pit frame as accessory. Assembly see installation instructions of the pit frame. KFP V20_600-6000-IA-e-1514...
  • Page 11: Connecting A Display Unit

    6.4 Connecting a display unit Attention Put the connecting cable to the display unit in a manner that it is protected against damage. Description of the connection cable: terminal Color State EXC+ [IN+] voltage + SIG + [OUT+] green signal + SIG -[OUT-] white signal -...
  • Page 12: Operation Limits

    7.1 Operation limits • The weighing bridges are designed extremely robust. However the load limits according to the following table should not be exceeded! • Depending on the type of load receptacle, the static carrying capacity, i.e. the maximum admissible load is: Weighing ranges 600kg 1500kg 3000kg 6000kg...
  • Page 13: Service, Maintenance, Disposal

    Do not use water jet or high-pressure cleaner. 8.3 Service, maintenance  The appliance may only be opened by trained service technicians who are authorized by KERN.  Ensure that the weighing system is regularly calibrated, see chap. 3.5 Testing instruments control.
  • Page 14: Instant Help

    8.5 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Help: Fault Possible cause • Draught/air movement The displayed weight is permanently changing •...
  • Page 15: Service Documentation

    9 Service documentation • This chapter is only intended for a balance specialist! • The weighing bridges are carried out in DMS sensor technology, at every corner a DMS weighing cell is installed. • The analogue-digital transformation occurs in the display unit. Also all the balance and country-specific data are stored there.
  • Page 16 Verification data and tolerances as per OIML 600kg [kg] -0,1 -0,2 -0,3 -0,4 1500kg 0,75 0,25 [kg] -0,25 -0,5 -0,75 1000 1500 3000kg [kg] -0,5 -1,5 1000 2000 3000 6000kg KFP V20_600-6000-IA-e-1514...
  • Page 17: Check And Adjustment Of The Corner Load

    9.2 Check and adjustment of the corner load Check of the corner load: • Place the test weights in the centre of the load plate and tare. • The balance displays -0-. • Place the test weights successively on all four corners.
  • Page 18 Adjustment on the analogue print Adjustment of weighing cell J2 takes place at the potentiometer VR1 and VR2. Adjustment of weighing cell J3 takes place at the potentiometer VR3 and VR4. Adjustment of weighing cell J4 takes place at the potentiometer VR5 and VR6. Adjustment of weighing cell J5 takes place at the potentiometer VR7 and VR8.
  • Page 19: Deadload And Overload Settings

    10 Deadload and Overload settings Deadload** (kg) Kern model Center Overload Corner Overload Loadcell **= already applied preload Protection circa (kg) Protection circa (kg) Capacity (kg) KFP 600V20SNM 100kg 1500 kg 500kg 500kg 500kg KFP 600V20NM 160kg 1500 kg 500kg...
