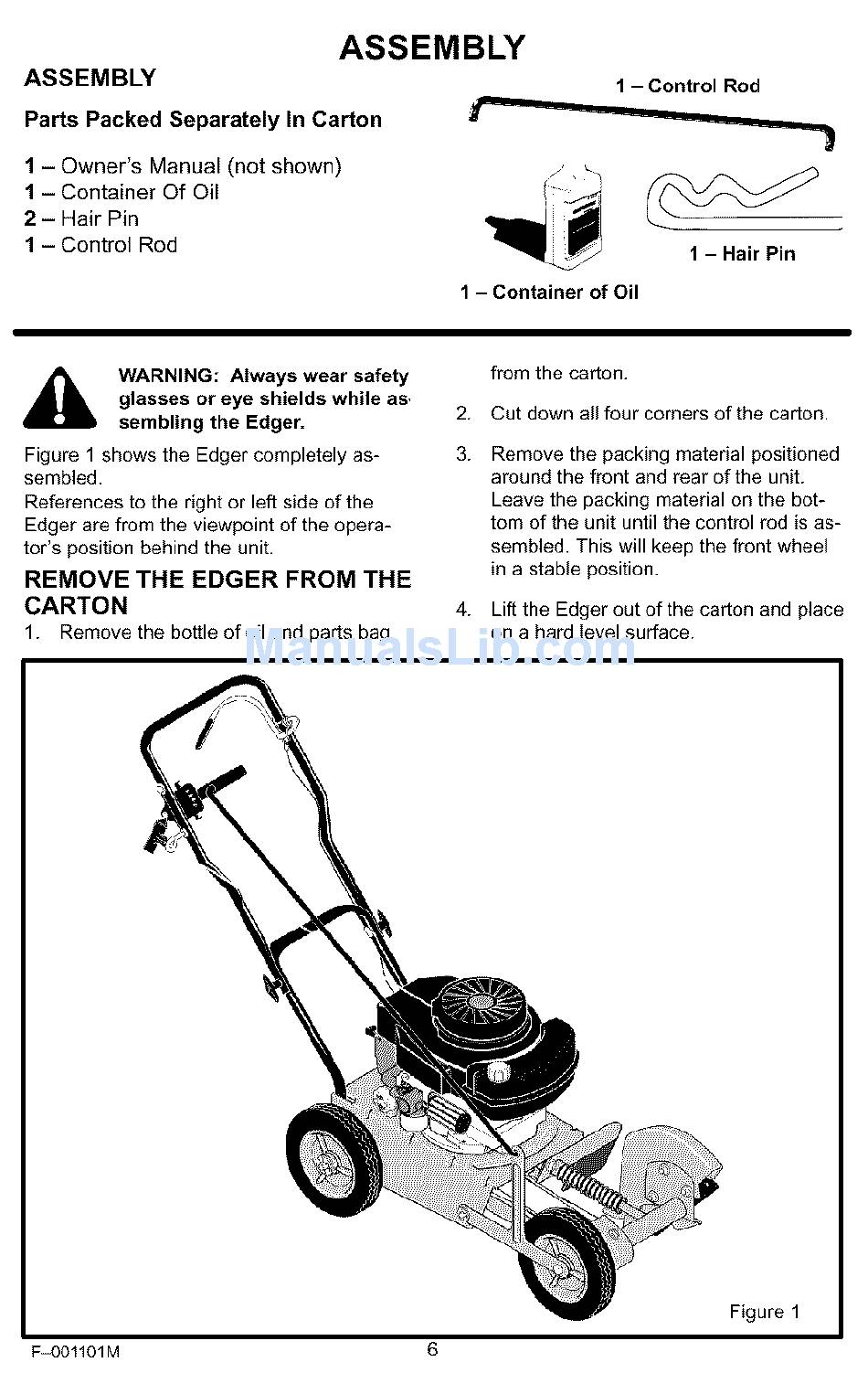

ASSEMBLY
ASSEMBLY
Parts Packed Separately In Carton
1 - Owner's Manual (not shown)
1 - Container Of Oil
2 - Hair Pin
1 - Control Rod
1 - Control Rod
1 - Container of Oil
1 -HairPin
_lb WARNING: Always wear safety
glasses or eye shields while as,
sembling the Edger.
Figure 1 shows the Edger completely as-
sembled.
References to the right or left side of the
Edger are from the viewpoint of the opera-
tot's position behind the unit.
REMOVE THE EDGER FROM THE
CARTON
1. Remove the bottle of oil and parts bag
2.
3.
4.
from the carton.
Cut down all four corners of the carton.
Remove the packing material positioned
around the front and rear of the unit.
Leave the packing material on the bot-
tom of the unit until the control rod is as-
sembled. This will keep the front wheel
in a stable position.
Lift the Edger out of the carton and place
on a hard level surface.
Figure 1
F_OO1101M 6
