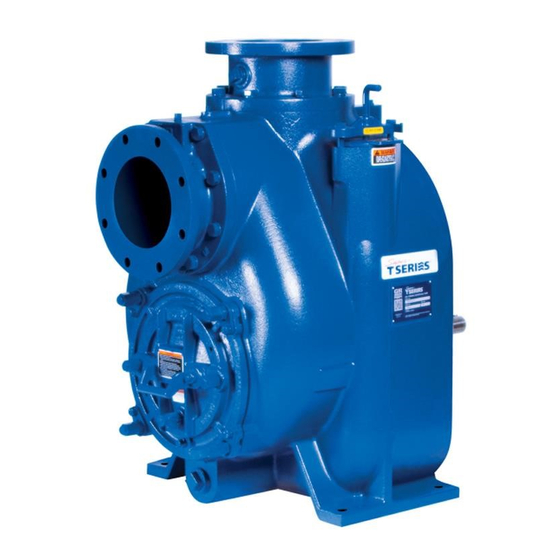

- Page 1 OM-05352-01 July 24, 2002 Rev. G 03‐09‐15 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL WITH PARTS LIST SUPER T SERIES PUMPS MODELS T8A71S-B INCLUDING: /F, /FM GORMAN‐RUPP PUMPS www.grpumps.com 2002 Gorman‐Rupp Pumps Printed in U.S.A.
- Page 2 Register your new Gorman‐Rupp pump online at www.grpumps.com Valid serial number and e‐mail address required. RECORD YOUR PUMP MODEL AND SERIAL NUMBER Please record your pump model and serial number in the spaces provided below. Your Gorman‐Rupp distributor needs this information when you require parts or service. Pump Model: Serial Number:...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..........PAGE I - 1 SAFETY - SECTION A . - Page 4 TABLE OF CONTENTS (continued) BEARING TEMPERATURE CHECK ......... . PAGE C - 4 TROUBLESHOOTING - SECTION D .
-
Page 5: Introduction
SUPER T SERIES OM-05352 INTRODUCTION Thank You for purchasing a Gorman‐Rupp pump. HAZARD AND INSTRUCTION Read this manual carefully to learn how to safely DEFINITIONS install and operate your pump. Failure to do so could result in personal injury or damage to the The following are used to alert maintenance per... -
Page 6: Safety - Section A
SUPER T SERIES OM-05352 SAFETY - SECTION A This information applies to Super T Se riesr basic pumps. Gorman‐Rupp has no control over or particular knowledge of the power source which will be used. This pump is designed to handle liquids Refer to the manual accompanying the containing large entrained solids or power source before attempting to be... - Page 7 OM-05352 SUPER T SERIES Do not operate the pump against a Do not operate the pump without the closed discharge valve for long periods of time. If operated against a closed dis guards in place over the rotating parts. charge valve, pump components will Exposed rotating parts can catch cloth...
-
Page 8: Installation - Section B
SUPER T SERIES OM-05352 INSTALLATION - SECTION B Review all SAFETY information in Section A. specific application. Since the pressure supplied to the pump is critical to performance and safety, Since pump installations are seldom identical, this be sure to limit the incoming pressure to 50% of section offers only general recommendations and the maximum permissible operating pressure as practices required to inspect, position, and ar... -
Page 9: Preinstallation Inspection
OM-05352 SUPER T SERIES PREINSTALLATION INSPECTION POSITIONING PUMP The pump assembly was inspected and tested be fore shipment from the factory. Before installation, inspect the pump for damage which may have oc Death or serious personal injury and curred during shipment. Check as follows: damage to the pump or components can occur if proper lifting procedures a. -
Page 10: Suction And Discharge Piping
SUPER T SERIES OM-05352 (229 mm) must be maintained to permit removal of these gauges are desired for pumps that are not the cover. tapped, drill and tap the suction and discharge lines not less than 18 inches (457,2 mm) from the suction and discharge ports and install the lines. -
Page 11: Suction Lines In Sumps
OM-05352 SUPER T SERIES tight seal. Follow the sealant manufacturer's rec If two suction lines are installed in a single sump, ommendations when selecting and applying the the flow paths may interact, reducing the efficiency pipe dope. The pipe dope should be compatible of one or both pumps. -
Page 12: Discharge Lines
SUPER T SERIES OM-05352 minimize the chance of plugging. DISCHARGE LINES Siphoning In low discharge head applications (less than 30 feet or 9 meters), it is recommended that the by Do not terminate the discharge line at a level lower pass line be run back to the wet well, and located 6 than that of the liquid being pumped unless a si... -
Page 13: Automatic Air Release Valve
OM-05352 SUPER T SERIES AUTOMATIC AIR RELEASE VALVE When properly installed, a Gorman‐Rupp Auto matic Air Release Valve will permit air to escape If a manual shut‐off valve is installed in through the bypass line and then close automati a bypass line, it must not be left closed cally when the pump is fully primed and pumping during operation. -
Page 14: Alignment
SUPER T SERIES OM-05352 DISCHARGE PIPE CLEAN‐OUT COVER INSTALL AIR RELEASE VALVE IN HORIZONTAL POSITION DISCHARGE CHECK VALVE 90_ LONG RADIUS ELBOW SUPPORT PUMP DISCHARGE BRACKET SELF‐PRIMING CENTRIFUGAL PUMP BLEED LINE 1” (25,4 MM) DIA. MIN. (CUSTOMER FUR NISHED) DO NOT EX SUCTION TEND BELOW PUMP LINE... -
Page 15: Coupled Drives
OM-05352 SUPER T SERIES Adjusting the alignment in one direction may alter the alignment in another direc tion. check each procedure after altering alignment. Coupled Drives Figure 5. Aligning Non‐Spider Type Couplings Check parallel adjustment by laying a straightedge across both coupling rims at the top, bottom, and When using couplings, the axis of the power side. -
Page 16: Drive Belt Tensioning
SUPER T SERIES OM-05352 Select pulleys that will match the proper speed ra DRIVE BELT TENSIONING tio; overspeeding the pump may damage both General Rules of Tensioning pump and power source. For new drive belts, check the tension after 5, 20 and 50 hours of operation and re‐tension as re... -
Page 17: Operation - Section C
OM-05352 SUPER T SERIES OPERATION - SECTION C Review all SAFETY information in Section A. 2. The pump has not been used for a consider able length of time. Follow the instructions on all tags, labels and de 3. The liquid in the pump casing has evapo cals attached to the pump. -
Page 18: Operation
OM-05352 SUPER T SERIES Consult the operating manual furnished with the filled, adjust the throttling valve to the required flow power source before attempting to start the power rate. source. If an electric motor is used to drive the pump, re move V‐belts, couplings, or otherwise disconnect the pump from the motor before checking motor Do not operate the pump against a... -
Page 19: Strainer Check
OM-05352 SUPER T SERIES Open the suction line, and read the vacuum gauge gaged to be ejected with great force. Af with the pump primed and at operation speed. ter the pump completely cools, drain the Shut off the pump. The vacuum gauge reading will liquid from the pump by removing the immediately drop proportionate to static suction casing drain plug. - Page 20 OM-05352 SUPER T SERIES few hours, or if it has been pumping liquids con Checking bearing temperatures by hand is inaccu taining a large amount of solids, drain the pump, rate. Bearing temperatures can be measured ac and flush it thoroughly with clean water. To prevent curately by placing a contact‐type thermometer large solids from clogging the drain port and pre...
- Page 21 SUPER T SERIES OM-05352 TROUBLESHOOTING - SECTION D Review all SAFETY information in Section A. Before attempting to open or service the pump: 1. Familiarize yourself with this manual. 2. Lock out or disconnect the power source to ensure that the pump will remain inoperative.
- Page 22 OM-05352 SUPER T SERIES TROUBLE POSSIBLE CAUSE PROBABLE REMEDY Suction intake not submerged at Check installation and correct PUMP STOPS OR FAILS TO DELIVER proper level or sump too small. submergence as needed. RATED FLOW OR Impeller or other wearing parts worn Replace worn or damaged parts.
- Page 23 SUPER T SERIES OM-05352 equipped) between regularly scheduled inspec PREVENTIVE MAINTENANCE tions can indicate problems that can be corrected Since pump applications are seldom identical, and before system damage or catastrophic failure oc pump wear is directly affected by such things as curs.
- Page 24 OM-05352 SUPER T SERIES PUMP MAINTENANCE AND REPAIR - SECTION E MAINTENANCE AND REPAIR OF THE WEARING PARTS OF THE PUMP WILL MAINTAIN PEAK OPERATING PERFORMANCE. STANDARD PERFORMANCE FOR PUMP MODEL T8A71S‐B, Including /F, /FM Based on 70 F (21 C) clear water at sea level Contact the Gorman‐Rupp Company to verify per...
- Page 25 OM-05352 SUPER T SERIES ILLUSTRATION PARTS PAGE Figure 1. Pump Model T8A71S-B ncluding /F, /FM PAGE E - 2 MAINTENANCE & REPAIR...
- Page 26 OM-05352 SUPER T SERIES PARTS LIST Pump Model T8A71S-B ncluding /F, /FM (From S/N 1247920 Up) If your pump serial number is followed by an “N”, your pump is NOT a standard production model. Contact the Gorman‐Rupp Company to verify part numbers.
- Page 27 OM-05352 SUPER T SERIES ILLUSTRATION Figure 2. Repair Rotating Assembly PAGE E - 4 MAINTENANCE & REPAIR...
- Page 28 OM-05352 SUPER T SERIES PARTS LIST Repair Rotating Assembly ITEM PART NAME PART ITEM PART NAME PART NUMBER NUMBER LOCK WASHER J10 15991 IMPELLER 12349 1102H HEX HEAD CAP SCREW B0605-1/2 15991 CART SEAL ASSY 46513-154 LOCK WASHER J06 15991 ADJ SHIM SET 5091 17090 BEARING CAP...
- Page 29 OM-05352 SUPER T SERIES PUMP AND SEAL DISASSEMBLY AND REASSEMBLY Before attempting to open or service the Review all SAFETY information in Section A. pump: 1. Familiarize yourself with this man ual. Follow the instructions on all tags, label and decals 2.
- Page 30 SUPER T SERIES OM-05352 Back Cover and Wear Plate Removal The impeller (1) should be loosened while the rotat ing assembly is still secured to the pump casing. (Figure 1) Before loosening the impeller, remove the seal cav ity drain plug (8B) and drain the seal lubricant. This The wear plate (6) is easily accessible and may be will prevent the oil in the seal cavity from escaping serviced by removing the back cover assembly...
- Page 31 OM-05352 SUPER T SERIES use them to press the rotating assembly into the packed with it. If improvised tools are used, be sure pump casing until the bearing housing is free. they are heavy enough for safe use and will not damage the pump.
- Page 32 SUPER T SERIES OM-05352 Shaft and Bearing Removal and Disassembly (Figure 2) Most cleaning solvents are toxic and When the pump is properly operated and main flammable. Use them only in a well ven tained, the bearing housing should not require dis tilated area free from excessive heat, assembly.
- Page 33 OM-05352 SUPER T SERIES tilated area free from excessive heat, be replaced any time the shaft and bear sparks, and flame. Read and follow all ings are removed. precautions printed on solvent contain The bearings may be heated to ease installation. ers.
- Page 34 SUPER T SERIES OM-05352 Seal Installation (Figures 2 and 5) When installing the bearings onto the shaft, never press or hit against the outer race, balls, or ball cage. Press only on the Most cleaning solvents are toxic and inner race. flammable.
- Page 35 OM-05352 SUPER T SERIES RETAINER SEAL PLATE SPRING IMPELLER O‐RINGS SLEEVE O‐RING BELLOWS SHAFT SLEEVE IMPELLER SHAFT ROTATING STATIONARY ELEMENT ELEMENT OIL SEAL IMPELLER SHIMS STATIONARY SEAT DRIVE BAND Figure 6. Cartridge Seal Assembly covering the threads. Check to ensure that the shaft threads are free of any tape residue and clean as required before proceeding with seal installa...
- Page 36 SUPER T SERIES OM-05352 proper clearance as described in Impeller Instal O‐RING ENGAGED WITH SEAL PLATE lation and Adjustment. BORE If necessary to reuse an old seal in an emer gency, carefully separate the rotating and station ary seal faces from the bellows retainer and sta tionary seat.
- Page 37 OM-05352 SUPER T SERIES Slide the rotating portion of the seal (consisting of Proceed with Rotating Assembly Installation be the integral shaft sleeve, spring centering washer, fore installing the impeller capscrew and washer spring, bellows and retainer, and rotating element) (26 and 27).
- Page 38 SUPER T SERIES OM-05352 in the mounting slot in the suction flange (21). Align grease. Clean any scale or debris from the contact the adaptor with the flange hole, and secure the as ing surfaces in the pump casing that might inter sembly with the check valve pin (23).
- Page 39 OM-05352 SUPER T SERIES back cover. Remove the rotating assembly adjust Remove the fill cover assembly (31) and fill the ing shims, then reinstall the hardware securing the pump casing with clean liquid. Reinstall the fill rotating assembly to the pump casing. Perform the cover and tighten it.
