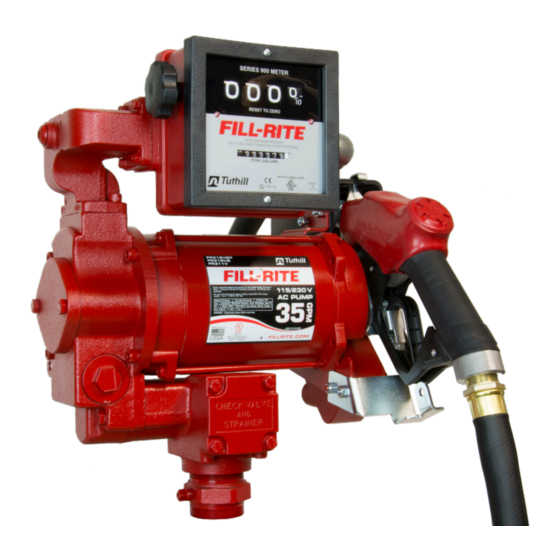

Tuthill FILL-RITE FR311VN Installation And Operation Manual

Tuthill FILL-RITE FR311VN Installation And Operation Manual

Fuel transfer pumps

Advertisement

FR300V SERIES FUEL TRANSFER PUMPS
Installation and operation manual
MADE IN
USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FILL-RITE FR311VN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tuthill FILL-RITE FR311VN

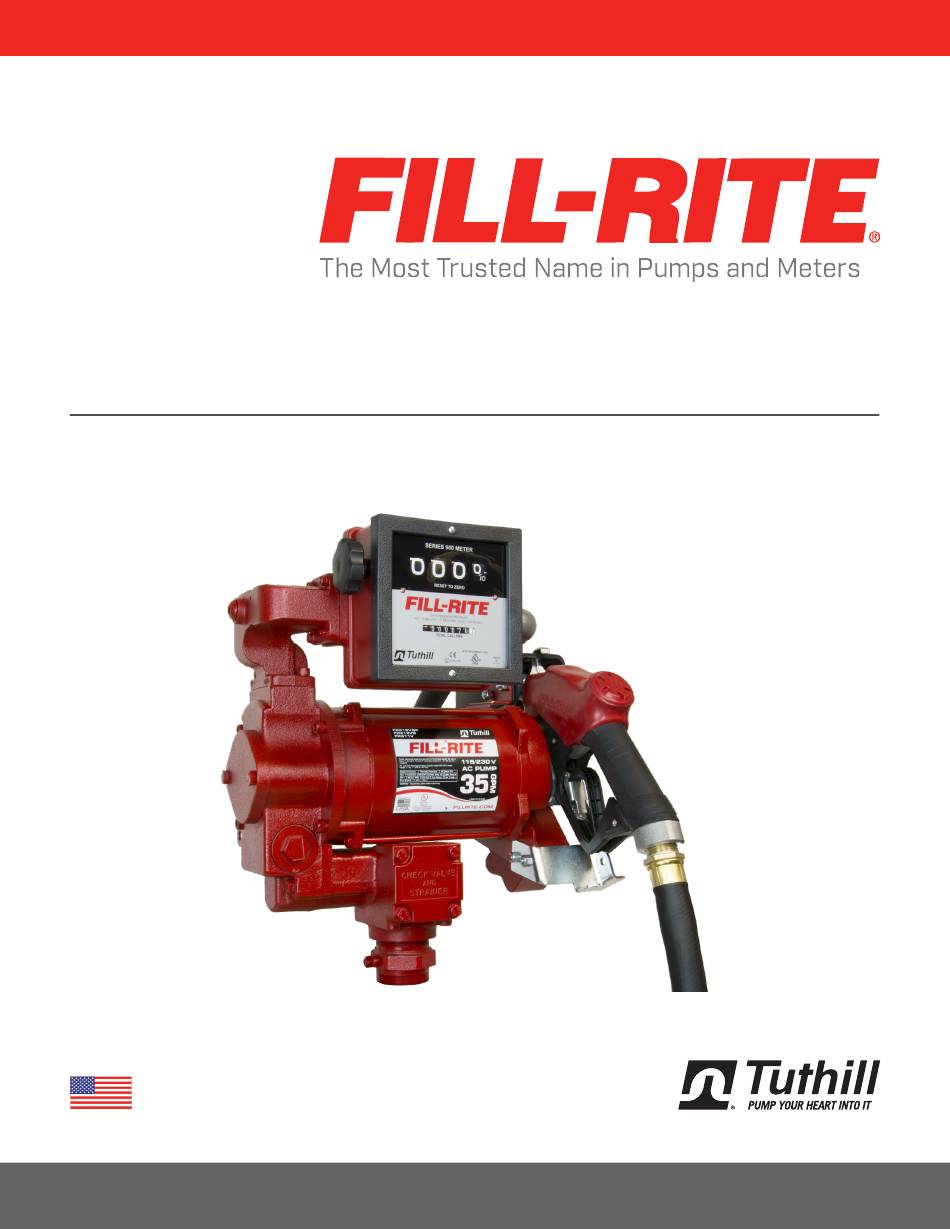

  • Page 1 FR300V SERIES FUEL TRANSFER PUMPS Installation and operation manual MADE IN...
  • Page 2: Table Of Contents

    | FR300V SERIES FUEL TRANSFER PUMPS Table of Contents Thank You! ...................2 Warranty Policy ..................2 About This Manual ................3 Safety Information ................3 Installation ..................3-4 Anti-Siphon Device ................5 Bung Adapter and Suction Pipe Installation ..........5 Nozzle Boot Installation ................5 Electrical Wiring ...................6 Wiring Procedure ..................6 Operating Instructions ................6 Pad Locking ..................6...
  • Page 3: About This Manual

    INSTALLATION AND OPERATION MANUAL About This Manual From initial concept and design through its final production, your Fill-Rite pump is built to give you years of trouble-free use. To insure it provides that service, it is critical that you read this entire manual prior to attempting to install or operate your new pump. Become familiar with the terms and diagrams, and pay close attention to the highlighted areas with the following labels: WARNING! Emphasizes an area in which personal injury or even death may result from failure to follow instructions properly.
  • Page 4 | FR300V SERIES FUEL TRANSFER PUMPS CAUTION! Threaded pipe joints and connections should be sealed with the appropriate sealant or sealant tape to minimize the possibility of leaks. Typical Skid Tank Installation SKID TANK INSTALLATION Materials • 1-1/4" pipe cut to a length that will terminate at least 3" from the bottom of the tank when installed into the tank adapter with the tank adapter installed into the tank flange (see SKID TANK INSTALLATION diagram).
  • Page 5: Anti-Siphon Device

    INSTALLATION AND OPERATION MANUAL CAUTION! Threaded pipe joints and connections should be sealed with the appropriate sealant or sealant tape to minimize the possibility of leaks. Anti-Siphon Device Your FR300V series pump comes from the factory ready to install an anti-siphon tube back to the tank. ANTI-SIPHON LINE An anti-siphon device (a.k.a.
  • Page 6: Electrical Wiring

    | FR300V SERIES FUEL TRANSFER PUMPS Electric Wiring WARNING! Electrical wiring should be performed ONLY by a licensed electrician in compliance with local, state, and national electrical code NEC/ANSI/NFPA 70, NFPA30, and NFPA 30A, as appropriate to the intended use of the pump. Threaded rigid conduit, sealed fittings, and conductor seal should be used. The pump must be properly grounded.
  • Page 7: Operating Instructions

    INSTALLATION AND OPERATION MANUAL Operating Instructions Padlocking 1. Reset Meter to “0” (if applicable). Your Fill-Rite pump nozzle can be padlocked for added security. With the pump turned off, 2. Remove dispensing nozzle from nozzle boot. and the nozzle in the stored position, a padlock 3.
  • Page 8: Troubleshooting

    Troubleshooting The following Troubleshooting guide is provided to offer basic diagnostic assistance in the event you encounter abnormal service from your Tuthill product. WARNING! DO NOT open or attempt to repair the motor on your FR300V series pump. Opening the motor case can compromise the integrity of the Explosion Proof construction and will void any existing warranty and certification (UL listing).
  • Page 9: Accessories

    INSTALLATION AND OPERATION MANUAL Troubleshooting (continued) Symptom Cause Solution 1. No Power Check incoming power. 2. Switch failure Refer to warranty policy. Motor inoperative 3. Motor failure Refer to warranty policy. 4. Thermal protector failure Refer to warranty policy. 5. Incorrect/loose wiring Check wiring.
  • Page 10: Replacement Parts Information

    | FR300V SERIES FUEL TRANSFER PUMPS Replacement Parts Information For repairs or routine maintenance, Fill-Rite offers the parts you need. The following parts diagram and list covers all applicable parts for your Fill-Rite product. WARNING! DO NOT open or attempt to repair the motor on your FR300V series pump. Opening the motor case can compromise the integrity of the Explosion Proof construction and will void any existing warranty and certification (UL listing).
  • Page 11 INSTALLATION AND OPERATION MANUAL FR300V / FR310V / FR311V / FR319V Parts List Kit KIT300RG and Seal Kit KIT700SL Detail FR311V Parts List FR319V Parts List The FR311V configuration adds a 901C Series mechanical meter, inlet meter flange, out- The FR319V configuration adds a 900CD or 900CDP series digital meter, inlet meter let meter flange, the associated attaching hardware, and gaskets.
  • Page 12: 300Ve Model Information

    EN IEC 60079-0:2018, Ed 7 “Explosive atmospheres – Part 0: Equipment – II 2 G General requirements” Ex db h IIA T4 Gb Tuthill EN 60079-1:2014, Ed 7 “Explosive atmospheres – Part 1: Equipment protection by FM09ATEX0075X 8825 Aviation Drive flameproof enclosures “d””...
