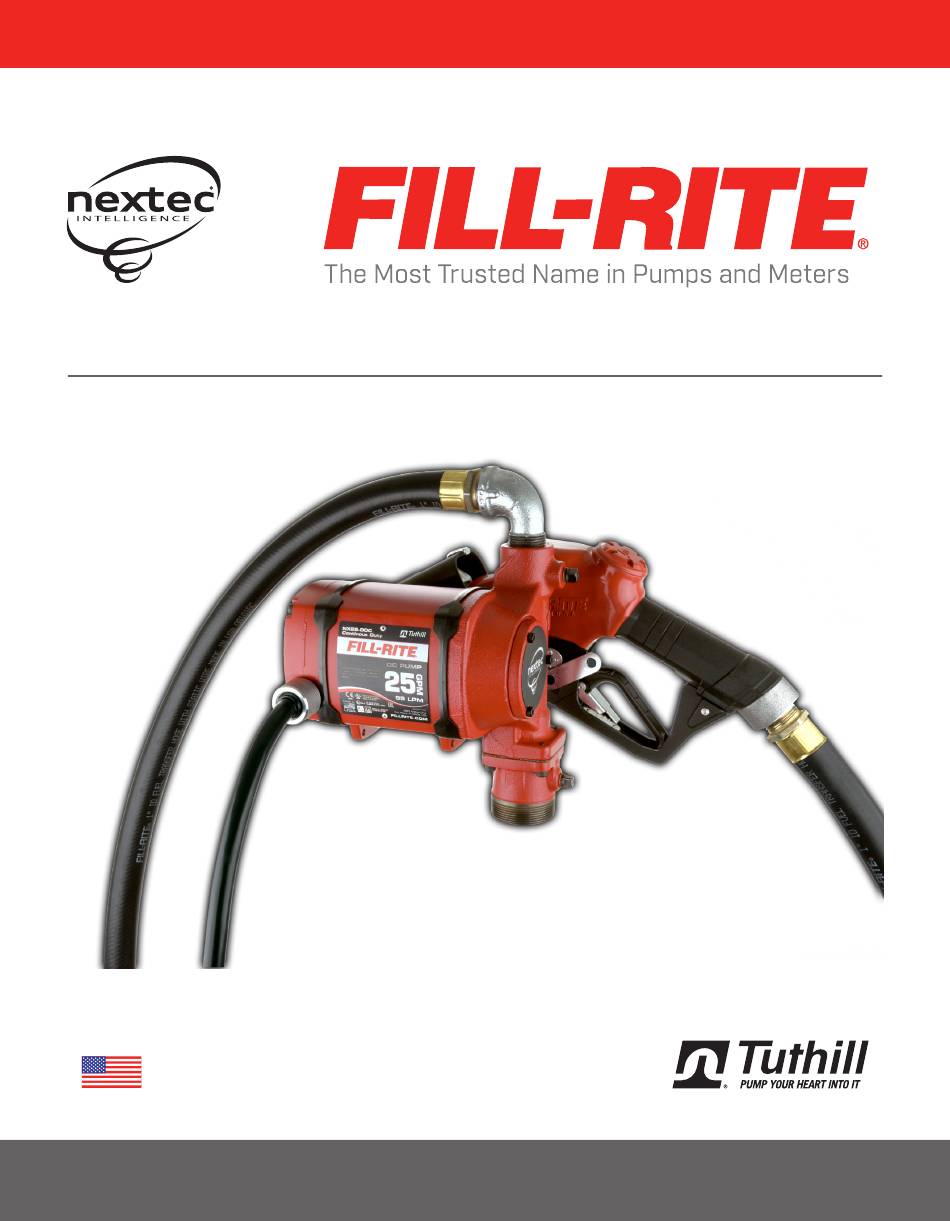

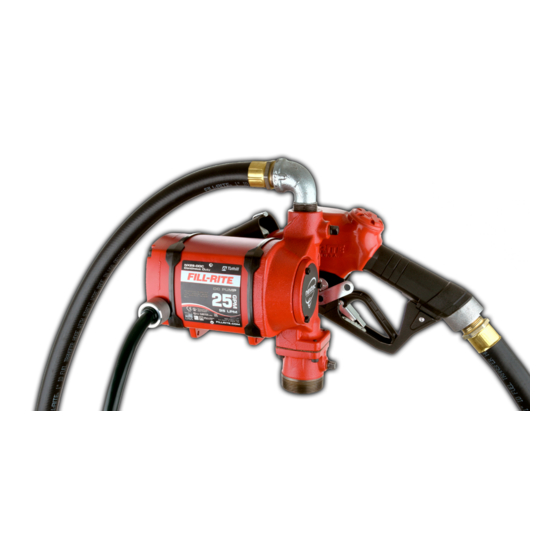

- Page 1 NX25-DDC SERIES DC FUEL TRANSFER PUMPS Installation and Operation Manual This manual contains English language only. Visit www.fillrite.com to download more languages. MADE IN...
-
Page 2: Table Of Contents
* Proof of purchase should be presented to place of purchase End users must contact the place where they purchased the product to process a warranty. “Place of purchase” is defined as any authorized Tuthill Transfer Systems Distributor, including any and all retail stores, mail order houses, catalogue houses, on-line stores, commercial distributors. -
Page 3: Unique Nextec Features
At Tuthill, your satisfaction with our products is paramount to us. If you have questions or need assistance with your product, please contact us at 1-800-634-2695 (M-F 8 AM–6 PM ET). -
Page 4: Fueling Safety
| NX25-DDC SERIES DC FUEL TRANSFER PUMP CAUTION! This product is not suited for use with fluids intended for human consumption or fluids containing water. Materials of construction are not food grade. Water will cause rust and corrosion in the pump housing. If water enters the pump, flush immediately with a petroleum product (gasoline, diesel, light oil, etc) to eradicate residual water. -
Page 5: Nozzle Boot Installation
The mounting foot is bolted to the bottom of the pump using the four supplied socket head cap screws. Mount the foot with the bolt flanges inboard of the mounts on the pump as illustrated. Torque to 50 in lb. with 4 mm hex key. fillrite.com | tuthill.com... -
Page 6: Anti-Siphon Device
| NX25-DDC SERIES DC FUEL TRANSFER PUMP Anti-Siphon Device ANTI-SIPHON INSTALLATION NX25-DDC pumps come from the factory ready to install an anti-siphon tube back to the tank. An anti-siphon device (a.k.a. vacuum breaker) is important because it Anti-Siphon Line will break a liquid siphon if there is an open nozzle or a leaking hose below the fluid level in the tank when the pump is turned off. -
Page 7: Dc Power Connection
The locking link is located on the nozzle side of the pump, and can be pivoted into position to work with a variety of nozzles. Use the appropriate position and hole to lock your nozzle securely to your NX25-DDC pump. Locking Link fillrite.com | tuthill.com... -
Page 8: Operational Safety
| NX25-DDC SERIES DC FUEL TRANSFER PUMP Operational Safety DANGER! DO NOT use pump in enclosed areas when pumping hazardous or explosive fluids. Pumping area should be well ventilated. Concentrated vapors in an enclosed area are noxious and highly explosive! WARNING! NEVER disconnect the power cable from the pump while pump is switched on or connected to a power source. -
Page 9: Dimensional Information
INSTALLATION AND OPERATION MANUAL NX25-DDC Dimensional Information All measurements are in inches [millimeters]. Bung Mount Dimensional Information Foot Mount Dimensional Information fillrite.com | tuthill.com... -
Page 10: Technical Information
| NX25-DDC SERIES DC FUEL TRANSFER PUMP Technical Information Accessories Accessories Description Motor Specification N100DAU13 1" Ultra Hi Flow Automatic Nozzle Power - DC 12, 24, 12/24 12 - 24 VDC HP (horsepower) rating 1/3 HP N100DAU12G 1“ Hi-Flow Automatic Nozzle (Diesel) Power cable length 20’... -
Page 11: Servicing The Bypass Valve
WARNING! It is critical that the locking tab be seated in the indentation in the bypass valve retainer as illustrated. Failure to do so can cause the Retainer to come off when operating in bypass mode, potentially damaging the pump, or ejecting upward through the pump outlet while servicing. Figure 3 Figure 4 Figure 1 Figure 2 Figure 5 Figure 6 fillrite.com | tuthill.com... -
Page 12: Replacement Parts Information
PER PART PRINTS kit321sw UNLESS OTHERWISE SPECIFIED NOTICE THIS DRAWING AND THE PRINCIPLES AND ELEMENTS OF DESIGN EMBODIED THEREIN ARE THE EXCLUSIVE PROPERTY OF TUTHILL CORPORATION, TUTHILL TRANSFER SYSTEMS AND ARE NOT TO DIMENSIONS ARE IN INCHES 9/15/2017 DATE THIRD ANGLE... -
Page 13: Exploded View
INSTALLATION AND OPERATION MANUAL NX25-DDC Exploded View Bung Mount Configuration KIT321NB KIT320SL KIT321RG KIT321SW KIT321BG Foot Mount Configuration KIT321SW KIT320SL KIT321RG fillrite.com | tuthill.com... -
Page 14: Troubleshooting
| NX25-DDC SERIES DC FUEL TRANSFER PUMP Troubleshooting DANGER! Disconnect all power prior to performing any service or maintenance. Failure to disconnect the power may cause electrical shock, or unexpected starting of the motor, resulting in injury or death. WARNING! DO NOT open or attempt to repair the motor on your NX25-DDC series pump. Opening the motor case can compromise the integrity of the Explosion Proof construction and will void any existing warranty and certification (UL listing). -
Page 15: Intelligent Tones
DANGER! DO NOT open or attempt to repair the motor on your Tuthill pump. Return it to the place of purchase for service. Opening the motor case will compromise the integrity of the Explosion Proof construction and void any existing warranty, approvals, and certifications (i.e.: ATEX, UL listing, CE, etc.). -
Page 16: Safety Testing Certifications
The fasteners used to assemble the flame-proof enclosure are of a property class (grade) 12.9. Manufacturer is to be contacted for information on the dimensions of the flameproof joints. Tuthill Corporation | 8825 Aviation Drive Fort Wayne, Indiana 46809 P (800) 634-2695 | (260) 747-7524 | F (800) 866-4681 www.tuthill.com | www.fillrite.com | www.sotera.com...
