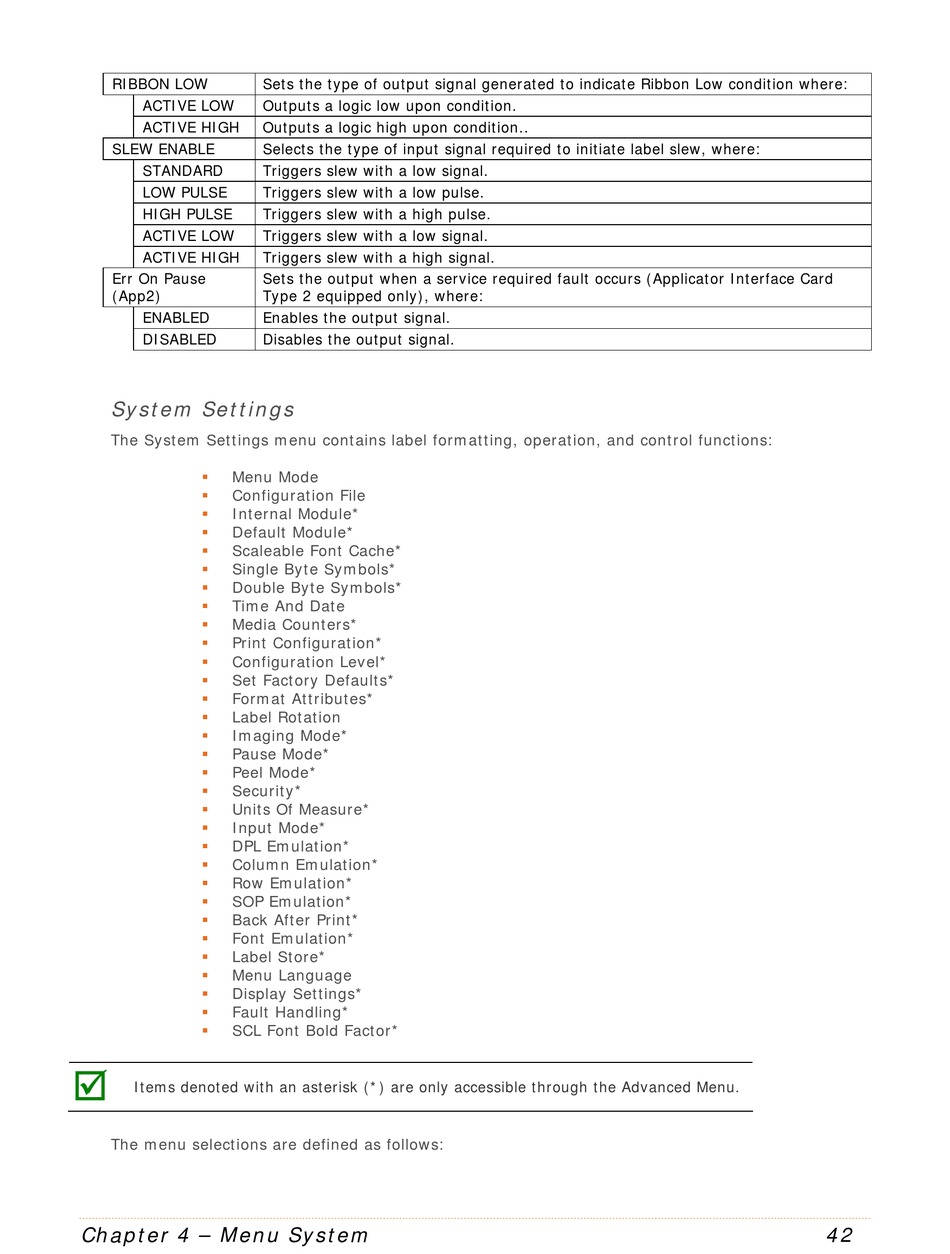

Datamax I-Class Mark II I-4212E/203 Operator's Manual page 48

RIBBON LOW
ACTIVE LOW
ACTIVE HIGH
SLEW ENABLE
STANDARD
LOW PULSE
HIGH PULSE
ACTIVE LOW
ACTIVE HIGH
Err On Pause
(App2)
ENABLED
DISABLED
System Settings
The System Settings menu contains label formatting, operation, and control functions:
Menu Mode

Configuration File

Internal Module*

Default Module*

Scaleable Font Cache*

Single Byte Symbols*

Double Byte Symbols*

Time And Date

Media Counters*

Print Configuration*

Configuration Level*

Set Factory Defaults*

Format Attributes*

Label Rotation

Imaging Mode*

Pause Mode*

Peel Mode*

Security*

Units Of Measure*

Input Mode*

DPL Emulation*

Column Emulation*

Row Emulation*

SOP Emulation*

Back After Print*

Font Emulation*

Label Store*

Menu Language

Display Settings*

Fault Handling*

SCL Font Bold Factor*


Items denoted with an asterisk (*) are only accessible through the Advanced Menu.
The menu selections are defined as follows:
Chapter 4 – Menu System
Sets the type of output signal generated to indicate Ribbon Low condition where:
Outputs a logic low upon condition.
Outputs a logic high upon condition..
Selects the type of input signal required to initiate label slew, where:
Triggers slew with a low signal.
Triggers slew with a low pulse.
Triggers slew with a high pulse.
Triggers slew with a low signal.
Triggers slew with a high signal.
Sets the output when a service required fault occurs (Applicator Interface Card
Type 2 equipped only), where:
Enables the output signal.
Disables the output signal.
42
