Vollrath Insta Cut 3.5 Operator's Manual

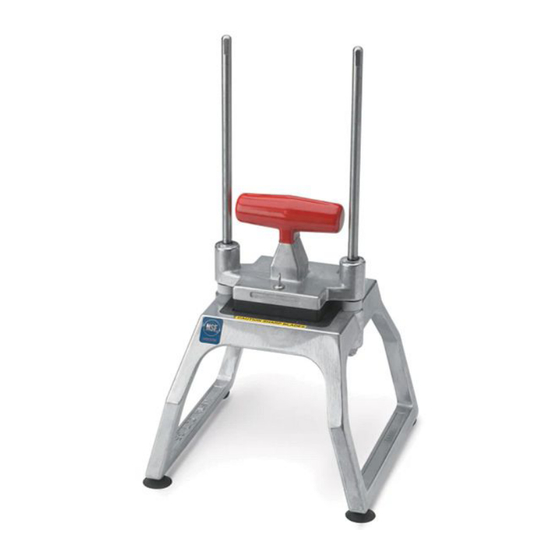

Insta Cut® 3.5 Slicer, Dicer, Wedger, and Corer
Thank you for purchasing this Vollrath® product! Save this
manual for reference and the packaging in case shipping is
necessary.
SAFETY PRECAUTIONS
To help ensure safe use, please read and fully understand
this manual and all safety messages before operation!
WARNING
Warning indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Caution indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.

NOTICE: addresses practices not related to physical injury.
To reduce risk of injury or damage to the unit
• Check unit before each use to ensure it is clean.
• Inspect for broken, nicked, or dull blades; replace as needed.
• Ensure Pusher Block and Blade Assemblies align and match.
• Only use unit if bumpers are in place and the lowered
Pusher Head rests completely on them.
• Use tabletop models on a level, smooth surface,
• Mount wall unit securely to studs using proper hardware.
• Lubricate Guide Rods lightly with mineral oil, Petro-Gel, or
food-grade lubricant; cooking oil becomes sticky and could
permanently damage the unit.
• Operate in non-public areas, away from children—and attend
the unit during use.
• Only operate if functioning properly and undamaged.
FUNCTION AND PURPOSE
Vollrath® Insta Cut® 3.5 manual food processor is intended
for slicing, dicing, wedging, and coring soft vegetables and
fruits. It is not intended for hard root vegetables such as
carrots and sweet potatoes.
Operator's Manual
Tabletop Wall- Pusher Pusher
Block & Block &
Mount
Blade
Tabletop
15000 15016 15059
15001 15017 15060
15002 15018 15061
— — 15085
15003 15019 15050
15005 15021 15052
15006 15022 15053
15007 15023 15054
15008 15024 15055
15009 — 15087
15010 15026 15058
Accessories
4425
UNPACKING THE UNIT
1. Remove all packing material, tape, and protective plastic.
2. Clean any left over glue residue.
BEFORE FIRST USE
• Clean the unit per the Cleaning and Maintenance section.
INSTALLING THE WALL-MOUNTED MODEL
1. Secure base to studs with four (4) ¼" screws of proper length; if
not possible, proper anchors and screws must be used.
Blade Description
Only
Blade
Wall-
Mount
15081 15062 ¼" (6.4) Dice
15082 15063 ⅜" (9.5) Dice
15083 15064 ½" (12.7) Dice
15086 ¼ x ½ (6.4 x 12.7) Dice
15084
15073 15065 4-Section Wedge
15075 15067 6-Section Wedge
15076 15068 8-Section Wedge
15077 15069 10-Section Wedge
15078 15070 12-Section Wedge
15079 15071 6-Section Core
15080 15072 8-Section Core
Description
Food Processor Blade-Cleaning Brush
Part 2350022-1 10/5/2023
