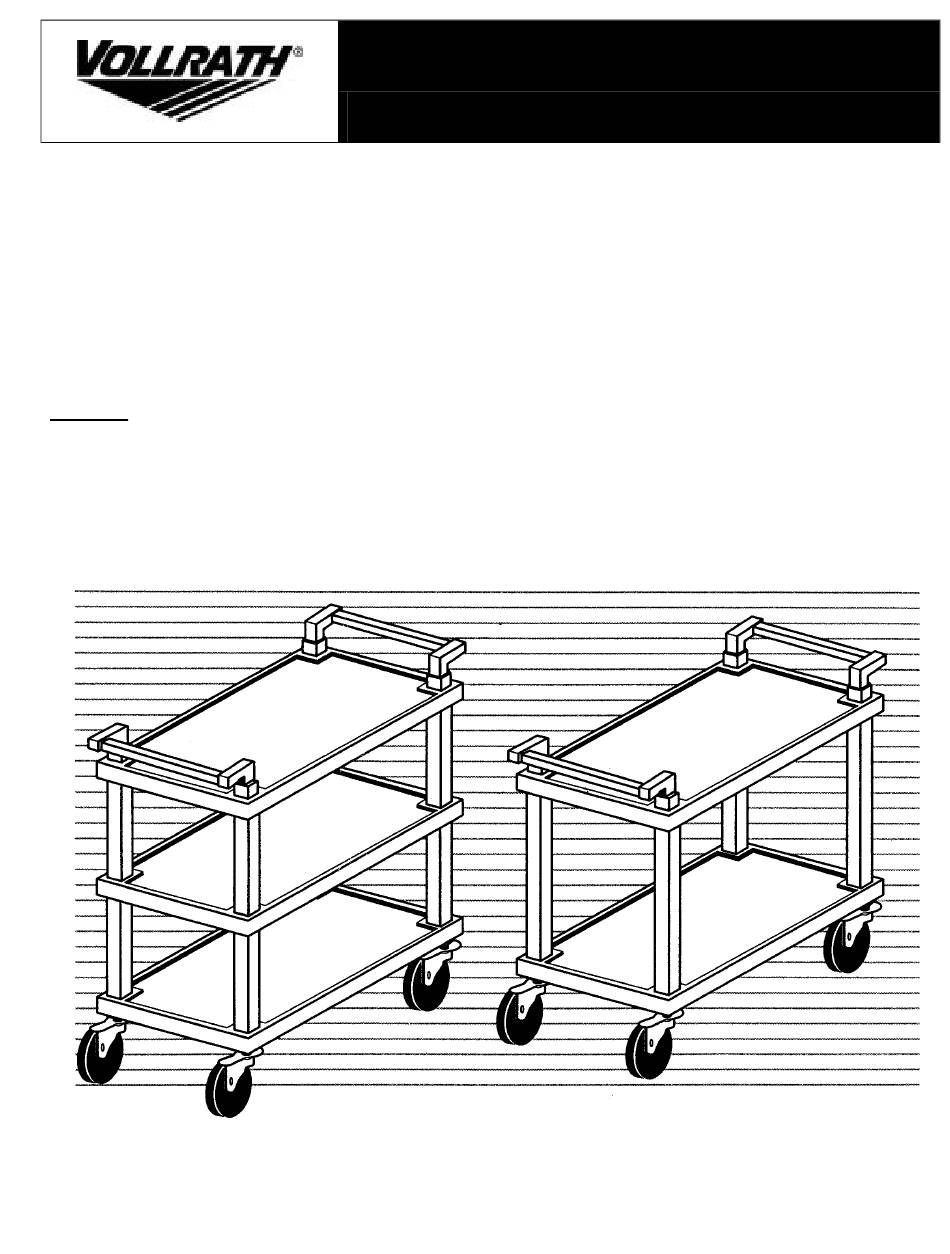

- Page 1 OWNER’S MANUAL KD PLASTIC CARTS Assembly Instructions and Parts List MODELS: 97101 — 2 Shelf KD Plastic Cart 97102 — 3 Shelf KD Plastic Cart Form No. 21814 Rev. B 1/04...
- Page 2 OWNER’S MANUAL KD Plastic Cart ASSEMBLY INSTRUCTIONS STEP 3 Insert second group of support tubes over each projection of STEP 1 second shelf — refer to Step 1. Lay shelf on flat surface (smooth side up). Insert a support tube over each projection as shown. Place the hammer block Hammer Block into a support tube and with a rubber mallet, pound down gently until support tube bottoms out against shelf.
- Page 3 OWNER’S MANUAL KD Plastic Cart STEP 8 STEP 6 Flip cart over as shown. Insert a handle tube into one (1) Flip cart over. Insert caster plug into each corner projection. handle support, right side and one (1) handle support, left Place hammer block over caster plug and with a rubber side.
- Page 4 Socket (metal) 21800 Caster 4″ Diameter 21960 Handle Support, Right Side --Not Shown-- 21963 Hammer Block The Vollrath Company, L.L.C. Vollrath of Canada, Ltd. 1236 North 18 Street 6320 Danville Road, Unit 1 Sheboygan, WI 53082-0611 Mississauga, Ontario L5T 2L7 U.S.A.
