Summary of Contents for audiophony 10752

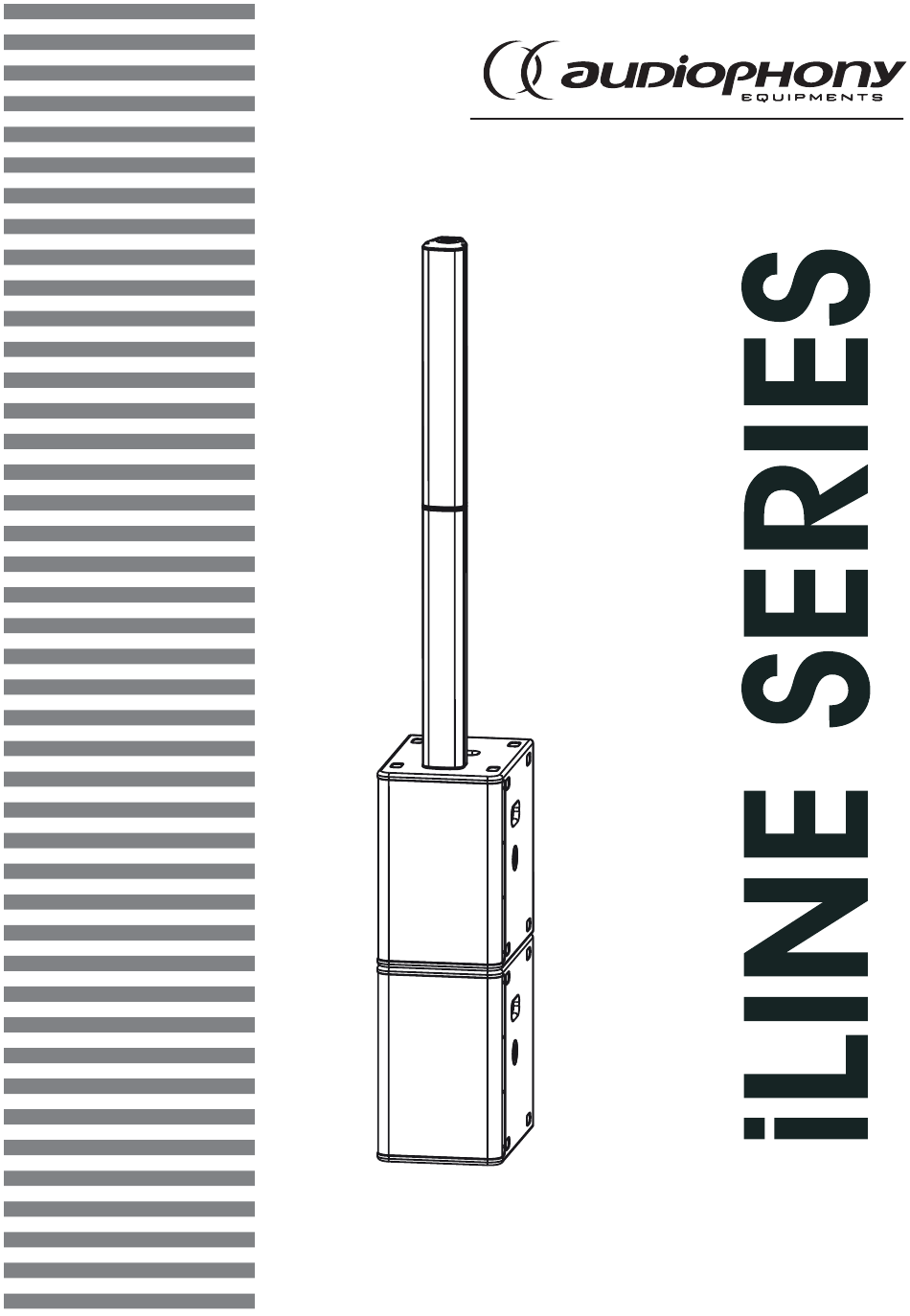

  • Page 1 USER GUIDE 10752/10753/10754/10755/10756/10757/10758/10759/10760/10761/10762/ 10763/10764/10767/10768/10773 - Version 1.0 /07-2017...
  • Page 2: Important Safety Information

    iLINE Series - Column speakers system with active and passive subwoofers 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations.
  • Page 3 iLINE Series - Column speakers system with active and passive subwoofers Instructions and recommendations 1 - Please read carefully : plates, etc... We strongly recommend to read carefully and understand the safety instructions before attempting to operate this unit. 10 - Electric power supply : This product can only be operated according to a very specific 2 - Please keep this manual : voltage.

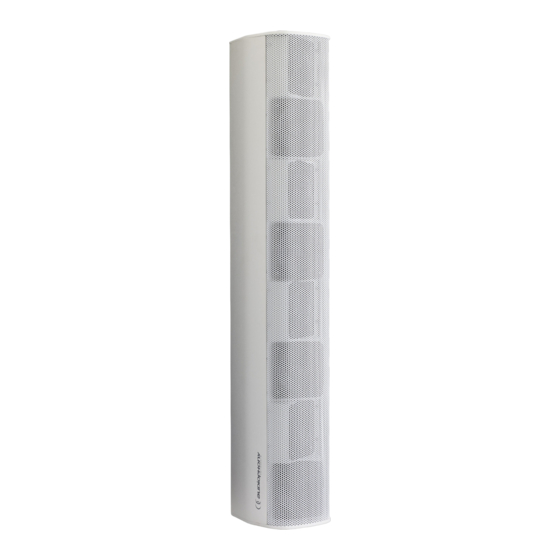

  • Page 4 iLINE Series - Column speakers system with active and passive subwoofers 2 - iLINE series components (except fixation systems and covers) 2 - 1 : Column speakers Page 4...
  • Page 5 iLINE Series - Column speakers system with active and passive subwoofers 2 - 2 : Subwoofers iLINEsub12A - 10761 iLINEsub12P - 10763 -700W + 700W / 4Ω Active subwoofer -400W / 8Ω Passive subwoofer -4-point Speakon input / output lowband/and -4-point Speakon input / output bass/full range full range -Costumizable DSP...
  • Page 6 iLINE Series - Column speakers system with active and passive subwoofers 2 - 4 : Wall brackets These brackets are designed for iLINE23, iLINE43 and iLINE83 column speakers These speakers are supplied with a 35mm baseplate, which needs to be changed in order to fit these wall brackets. 180°...
  • Page 7: Installation And Use

    iLINE Series - Column speakers system with active and passive subwoofers 3 - Installation and use 3 - 1 : Installation Please make sure you are using an even and stable surface. iLINEsub12A and iLINEsub12P subwoofers can be set either horizontally or vertically.
  • Page 8 iLINE Series - Column speakers system with active and passive subwoofers Mode 2 Power : 720W (1440W max.) Max. SPL : 123dB iLINE83B iLINE83B iLINEsub12A Mode 3 Power : 1020W (2040W max.) Max. SPL : 127dB iLINE83B iLINE83B iLINEsub12P Speakon/Speakon cable Speakon/Speakon reference iLINEcord60 cable reference...
  • Page 9 iLINE Series - Column speakers system with active and passive subwoofers 3 - 2 : Power connection The power socket of your iLINEsub12A is a Powercon © Neutrik ® The blue plug is used for power connection. The grey plug is used to transfer power to other units. Caution: max power via this plug is 20A (4600W at 240V).
  • Page 10 iLINE Series - Column speakers system with active and passive subwoofers Stereo mode Instrument CD Player Main power Main power Page 10...
  • Page 11 iLINE Series - Column speakers system with active and passive subwoofers Double-subwoofer mode Full range Bass iLINEcord60 - 10764 4-point Speakon cord - 60 cm When using two subwoofers (iLINEsub12A and iLINEsub12P), they must be connected together PASSIVE SUBWOOFER 400W RMS / 8 Ohms via the optionnal iLINEcord60 cord.
  • Page 12 DSP parameters are factory set in order to ensure optimal performances. UR485 CAUTION: Altering the DSP settings may cause severe damage to your loudspeakers. Audiophony cannot be held responsible for any damage caused to loudspeakers after altering these settings. Page 12...
  • Page 13: Amplification Module

    iLINE Series - Column speakers system with active and passive subwoofers 4 - Amplification module Line-level balanced output via Female XLR Line-level balanced output via Male XLR DSP input/output via RJ45 socket. Indicator LED: RS485 Protocole. -ON : Turns on upon activation of your device -CLIP : Turns on when the output level is critical...
  • Page 14: Technical Specifications

    iLINE Series - Column speakers system with active and passive subwoofers 6 - Technical specifications Page 14...
  • Page 16 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com AUDIOPHONY ®...
