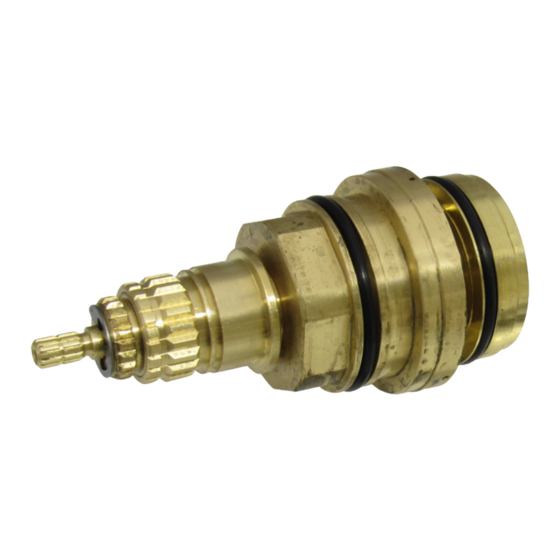

  • Page 1 Thermostatic Cartridge Thermostatic Cartridge Thermostatic Cartridge Thermostatic Cartridge SK1850 SK1850 SK1850 SK1850- - - - 2 2 2 2 Service Instruction Service Instruction Service Instruction Service Instruction P P P P l l l l e e e e a a a a s s s s e e e e k k k k e e e e e e e e p p p p t t t t h h h h e e e e s s s s e e e e i i i i n n n n s s s s t t t t r r r r u u u u c c c c t t t t i i i i o o o o n n n n s s s s f f f f o o o o r r r r f f f f u u u u t t t t u u u u r r r r e e e e r r r r e e e e f f f f e e e e r r r r e e e e n n n n c c c c e e e e...
  • Page 2 Before starting any servicing please isolate your water supply by either; Before starting any servicing please isolate your water supply b y either; Before starting any servicing please isolate your water supply b Before starting any servicing please isolate your water supply b y either;...
  • Page 3 9. Now that the cartridge is removed from the valve in order to service the cartridge you will need to remove the large circlip which is situated between the top of the Brass nut and the bottom of the exposed spindles. 10.
  • Page 4 13. Once the circlip has been removed, push the small spindle through the remainder of the cartridge, then replace all visible O rings, then reverse action in re-assembling cartridge and control assembly. 14. Now that all of the seals have been replaced and re greased the cartridge will need to be re assembled. Re assemble the spindle following the below drawings.
  • Page 5 Installation conditions outside operating parameters. Refer to specification section. Winter conditions - If using combination boiler system and shower output temperature is low, please contact Bristan for guidance. fluctuating or reduced flow Check the shower handset, hose and filters for any blockage.
  • Page 6 Bristan Spare Part Numbers Bristan Spare Part Numbers Bristan Spare Part Numbers Bristan Spare Part Numbers Seal Kit - SK1850-1 Complete Cartridge – SK1850-2 Thermostat & Piston – SK1500-3...
  • Page 7 Notes Use this page for any notes that you have regarding the servicing of your shower valve.
  • Page 8 Helpline Helpline 0844 701 6273 0844 701 6273 0844 701 6273 0844 701 6273 Bristan Group Limited Birch Coppice Business Park, Dordon, Tamworth, Staffordshire B78 1SG A Masco Company Website: www.bristan.com Telephone: 0844 7016 274 Facsimile: 0844 701 6275 Email: enquire@bristan.com...
