Resume: Continue operating in
•
the same condition as before.
Pwr Off?: Turns off the transmitter.
•
• Rf On?: Begin transmitting the RF
signal.
Backlit: The LCD backlight is set
•
to come on when any button on
the control panel is pressed, then
stay on for either 30 seconds or 5
minutes, or to stay on all the time..
The unit can also be turned off from any
menu or screen on the LCD by holding
the power button in for the duration of
the countdown.

Battery Condition

An icon on the Main Window indicates
the remaining power of the transmitter
batteries. This battery gauge is most
accurate with the typical voltage drop
across the life of alkaline and dry cell
lithium batteries.
b 23
7
A
601.000
-40
-20 0
Rechargeable batteries give little or no
warning when nearing depletion. If you
use rechargeable batteries in the HHa,
we recommend trying fully charged
batteries first, noting the length of time
that the batteries will run the unit, and
in the future using somewhat less than
that time to determine when the battery
needs to be replaced. The Venue and
other receivers from Lectrosonics offer a
timer function to assist in this process.

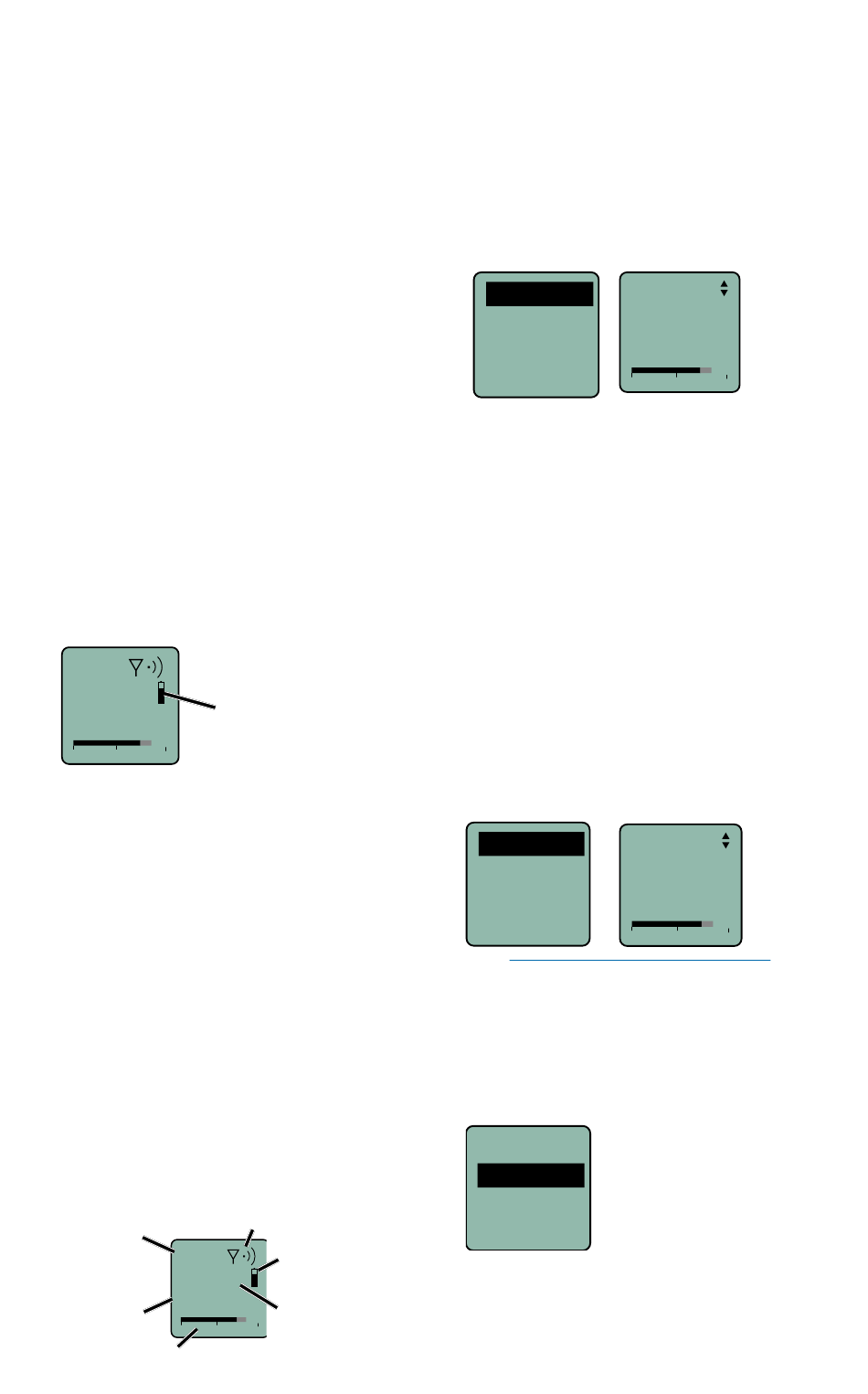

Menus and Screens

The Main Window displays the following
information:
Hex Code for
Operating
frequency
b 23
7
A
Operating
601.000
frequency
in MHz
-40
Audio level
4
Battery Gauge
Icon indicates whether RF
output is turned on or off
Battery condition
Function of the
side button
-20 0
1) Press the MENU/SEL button to
enter the setup menu. Use the UP/
DOWN buttons to highlight the
menu item.
2) Press the MENU/SEL button to en-
ter the setup screen for that item.
Use the UP/DOWN buttons to
select the desired value or mode.
Gain
Freq.
ProgSw
Rolloff
3) Press the MENU/SEL button to
save this setting and return to the
previous screen.
4) Press the BACK button to return to
the Main Window.
Gain
This setting is very important since it will
determine the audio signal to noise ratio
and dynamic range that the wireless
system will deliver. Gain must be set
according to the individual voice, the mic
capsule in use and the handling tech-
nique of the user. LEDs in the control
panel facilitate accurate gain adjustment.
Gain
Freq.
ProgSw
Rolloff
IMPORTANT: See the section
About Setting Audio Gain on
page 6 for details.
Freq.
The operating frequency
Gain
is normally determined
Freq.
using the scanning
function in the receiver
ProgSw
or with coordination
Rolloff
software. The frequency
is shown on the transmitter LCD display
in MHz and with a hexadecimal code
that is used on most Lectrosonics
receivers.
LECTROSONICS, INC.
Gain
25
-40 -20 0
Gain
25
-40 -20 0
