Lectrosonics HHa/E01 Quick Start Manual page 7

Programmable Switch
Functions

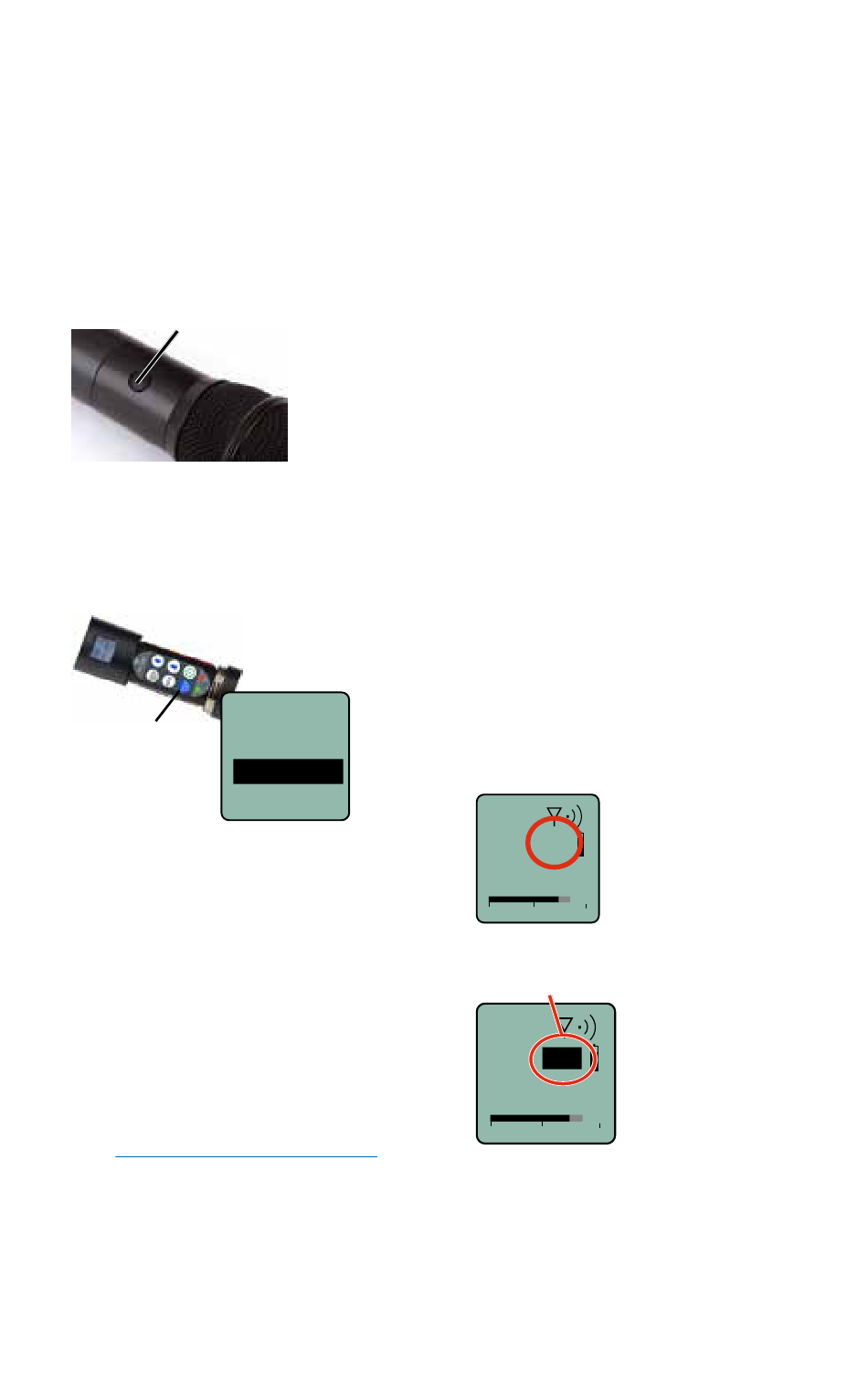

A special button (the Side Button)
on the outside of the housing can be
configured to provide several different
functions, or to be inoperative.
The ProgSw on the control panel opens
a setup screen to select the function of
the Side Button.
Side Button
The ProgSw menu provides a scrollable
list of the available functions. Us the UP/
DOWN arrows to highlight the desired
function and press BACK or MENU/SEL
to select it and return to the main menu.
Side Button
Setup Switch
Talkback is a "push to talk" function that
is active only while the button is pressed.
The talkback function provides a com-
munication channel when used with a
receiver equipped with this function,
such as a Venue Wideband receiver
with firmware Ver. 5.2 or higher. When
pressed and held in, the side button
re-directs the audio output to a differ-
ent audio channel on the receiver. As
soon as the switch is released, audio is
returned to the program channel.
NOTE: The Talkback function
is only available in the Digital
Hybrid compatibility mode. An
error message will appear if
Talkback is selected while in
another mode.
www.lectrosonics.com
Functions:
• TalkBack
• Power
• Cough
• Push To Talk
• Mute
• (none)
Press the
Programmable Switch
or select ProgSw on
the main menu.
Gain
Freq.
ProgSw
Rolloff
Power turns the power on and off.
Hold the button in until the countdown
sequence from 3 to 1 is completed. The
power will then be turned off.
Cough is a momentary mute switch. Au-
dio is muted while the button is held in.
Push to Talk is a momentary talk switch.
Audio is transmitted while the button is
held in (opposite of cough).
Mute is a "push on/push" off function
that toggles on and off each time the
Side Button is pressed. The mute func-
tion defeats the audio in the transmitter,
so it works in all compatibility modes and
with all receivers.
(none) disables the switch.
For detailed information on setting
up the Talkback function and the
Venue receiver, refer to the Installa-
tion Guide for the Venue Wideband
Receiver.
Main Window Displays
for Mute and
Talkback Functions
The function of the Side
b 23
Button is displayed in
7
A
TB
the LCD Main Window.
601.000
-40 -20
0
Talkback
When the Side Button
Reverse video
is pressed, the function
b 23
will be active and the
7
A
LCD will display an
TB
indication.
601.000
-40 -20
0
Talkback active
