With the unit turned on, a brief push of
the Power Button will reveal a menu al-
lowing you to choose between Resume,
Rf On?, and Pwr Off?. Use the UP/
DOWN buttons to select one of these
menu items, then press the MENU/SEL
button to confirm this action.
Resume
Pwr Off
Rf On?
Backlit
Resume: Continue operating in
•
the same condition as before.
• Rf On?: Begin transmitting the RF
signal.
Pwr Off?: Turns off the transmitter.
•
The unit can also be turned off from any
menu or screen on the LCD by holding
the power button in for the duration of
the countdown.

Battery Condition

An icon on the Main Window indicates
the remaining power of the transmitter
batteries. This battery gauge is most
accurate with the typical voltage drop
across the life of alkaline and dry cell
lithium batteries.
5
A
623.400
-40 -20 0
Rechargeable batteries give little or no
warning when nearing depletion. If you
use rechargeable batteries in the HH,
we recommend trying fully charged
batteries first, noting the length of time
that the batteries will run the unit, and
in the future using somewhat less than
that time to determine when the battery
needs to be replaced. The Venue and
other receivers from Lectrosonics offer a
timer function to assist in this process.
4
Battery Gauge
Navigating Menus
and Screens

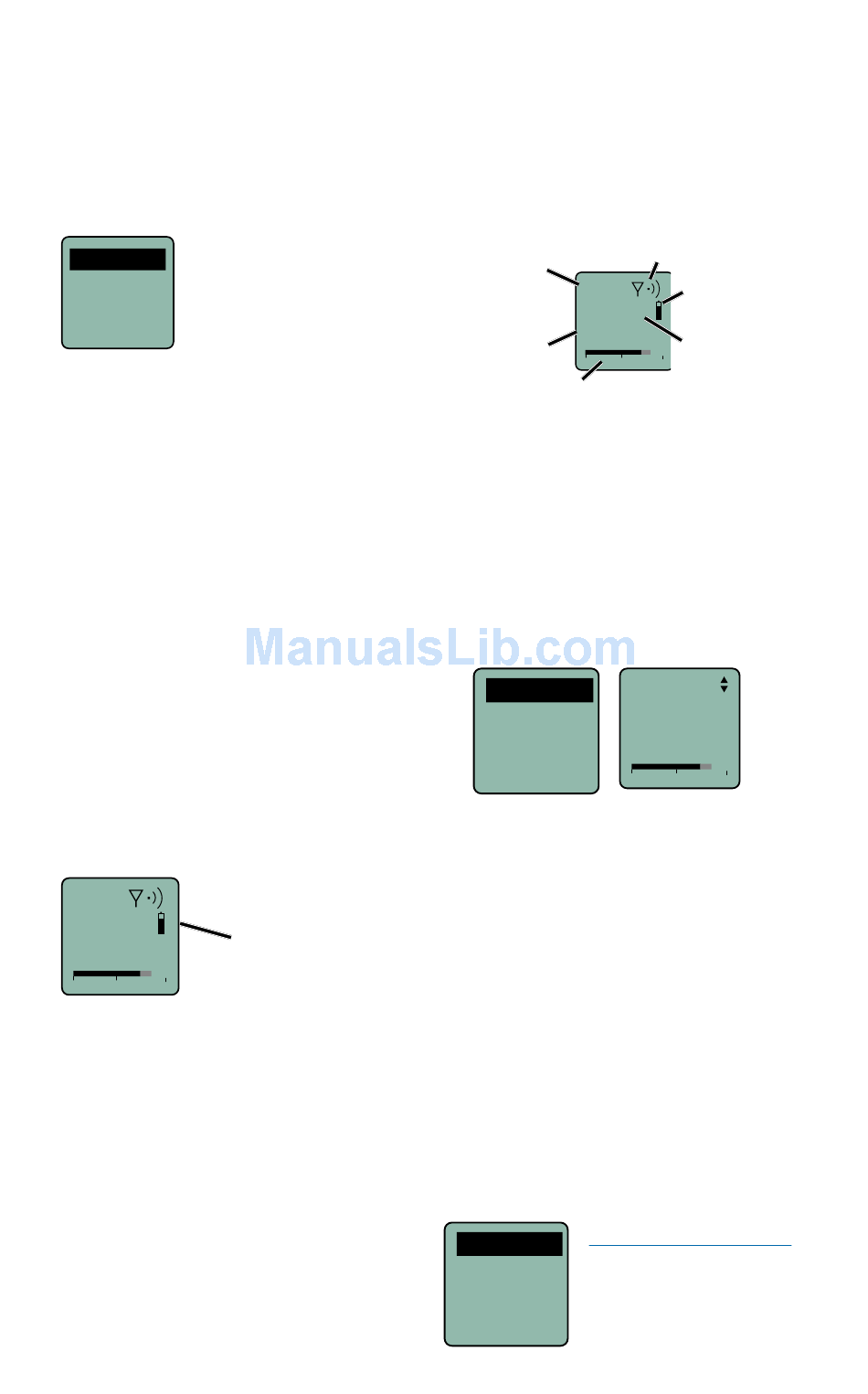

The Main Window displays the following
information:
Hex Code for
Operating
frequency
5
A
Operating
623.400
frequency
in MHz
-40
Audio level
1) Press the MENU/SEL button to
enter the setup menu. Use the UP/
DOWN buttons to highlight the
menu item.
2) Press the MENU/SEL button to en-
ter the setup screen for that item.
Use the UP/DOWN buttons to
select the desired value or mode.
Gain
Freq.
ProgSw
Rolloff
3) Press the MENU/SEL button to
save this setting and return to the
previous screen.
4) Press the BACK button to return to
the Main Window.
Gain
This setting is very important since it will
determine the audio signal to noise ratio
and dynamic range that the wireless
system will deliver. Gain must be set
according to the individual voice, the mic
capsule in use and the handling tech-
nique of the user. LEDs in the control
panel facilitate accurate gain adjustment.
Gain
NOTE: See "About Setting
Freq.
Audio Gain" pg 6.
ProgSw
Rolloff
LECTROSONICS, INC.
Icon indicates whether RF
output is turned on or off
Battery condition
TB
Function of the
-20 0 side button
Gain
25
-40
-20 0
