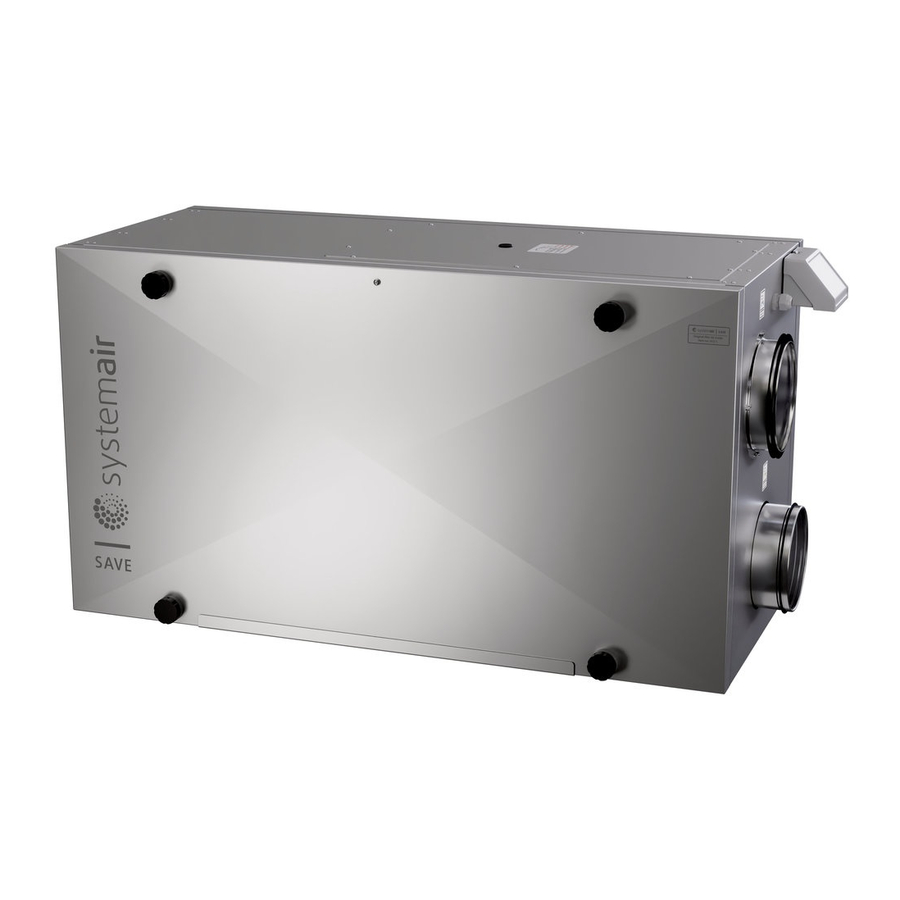

Contents Overview ............1 4.7.3 Checking the roof cowl (if fitted)........14 General Description ........1 4.7.4 Checking and cleaning the Warranty ..........1 duct system ......14 Type label..........1 Troubleshooting..........15 Warnings............1 Electrical data ..........16 Operation ............2 Disposal and recycling ........16 SAVE LIGHT control panel ......2 3.1.1 Indicators .........2...
For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit.
| Operation Warning • This product is not intended to be used by children or people with reduced physical or mental ability or lack of experience and knowledge, if no instruction concerning the use has been given by the person responsible for their safety or that this person is supervising the operation.
Operation | Refresh Auto — flashing High Normal (Minimum) (Maximum) slowly Automatic The fan can be Fan speed – 25% Fan speed – 45% Fan speed – 70% Sets speed of airflow control. set to Off by both supply and activating extract air fans Available only...
| Operation SAVE CONNECT solution (mobile application and Internet access module) has a similar menu structure and functionality as SAVE TOUCH control panel, so this section can also be used as a guide for the mobile application. 3.2.1 Common symbols The following selection symbols are common and are present in most menu pages: On and Off slider to activate or Back button to return to a previous...
Operation | Touch HELP button to know more about the alarm. To clear the alarm, touch ACKNOWLEDGE button. Note: The underlying cause of the alarm must be resolved first otherwise the alarm will appear again. If the problem continues contact your installation company or place of purchase. 3.2.4 Quick Information screen Quick information screen can be shown instead of a sleep...
Page 10
| Operation Duration have to be set for temporary user modes. SAVE VSR 300/500 will return to its previous working mode after the set time expires. Note: AUTO mode is available for selection only if the optional Demand Control, Week Schedule and/or external fan control functions are activated.
Operation | Icon Text Description Sets speed of both supply and extract air fans to Maximum levels to replace Refresh indoor air with a fresh air in a short period of time. Set duration in minutes. Sets speed of supply air fan to High level and extract air fan to Low level to increase air pressure within the apartment for better smoke extraction through Fireplace the chimney.
| Operation 3.2.8 To set a week schedule While in home screen, touch menu icon and select Week Schedule. The menu is locked by default. Enter a password (default password is 1111). Touch icon at the bottom left corner of the screen to add a new schedule or press EDIT button to modify already added schedule.
1. It is recommended to do this every 5 years and is normally carried out by authorized companies specialized in this area. • Use original spare parts from Systemair only. • Scan the code on the type label to find a spare part list.
| Maintenance To access internal components Danger • Make sure that the Mains supply to the unit is disconnected before performing any maintenance or electrical work! Loosen the four knobs and loosen the Philips screw to open the side cover. Fig.
Maintenance | 4.3.1 To reset the filter change time Once filter is changed, it is necessary to reset filter time. Go to Filter menu (see 3.2.2 Home screen overview, page 4, pos. E) or if filter alarm is present, click on alarm status line (see 3.2.2 Home screen overview, page 4, pos. 5) and select filter alarm.
| Maintenance 1. Stop the unit by disconnecting the mains. 2. Open and remove the side cover. See figure 4.2. 3. Disconnect the rotor power supply and the rotor sensor. Both cables are found beside the rotor. 4. Loosen mounting screws at the bottom (1). Note: In VSR 500 unit the mounting screws are located at the top.
Maintenance | The motor bearings are life time lubricated and mainte- nance free. Even if the required maintenance, such as changing of fil- ters is carried out, dust and grease may slowly build up in- side the fans. This will reduce the efficiency. The fans may be cleaned as illustrated in below procedure.
| Maintenance In case both welded belts break it is possible to use joint nipple as a temporarily quick repair solution until the welded belt can be replaced with a new one. Depending of how the unit is installed, it may be not necessary to remove the heat exchanger package in order to temporary repair a broken drive belt if the belt pulley can be accessed.
Troubleshooting | The duct runs should therefore be cleaned/changed when necessary. Steel ducts can be cleaned by pulling a brush soaked in hot soapy water through the duct via diffuser/louvre openings or special inspection hatches in the duct sys- tem (if fitted). It is recommended to do this every 5 years and is normally carried out by authorized companies specialized in this area.
| Electrical data 3. Check that the anti vibration lists are fitted to the mounting bracket and to the back of the unit. 4. Check that the rotor belt is not slipping if the unit has rotating heat exchanger. Electrical data VSR300 VSR500 Model...
