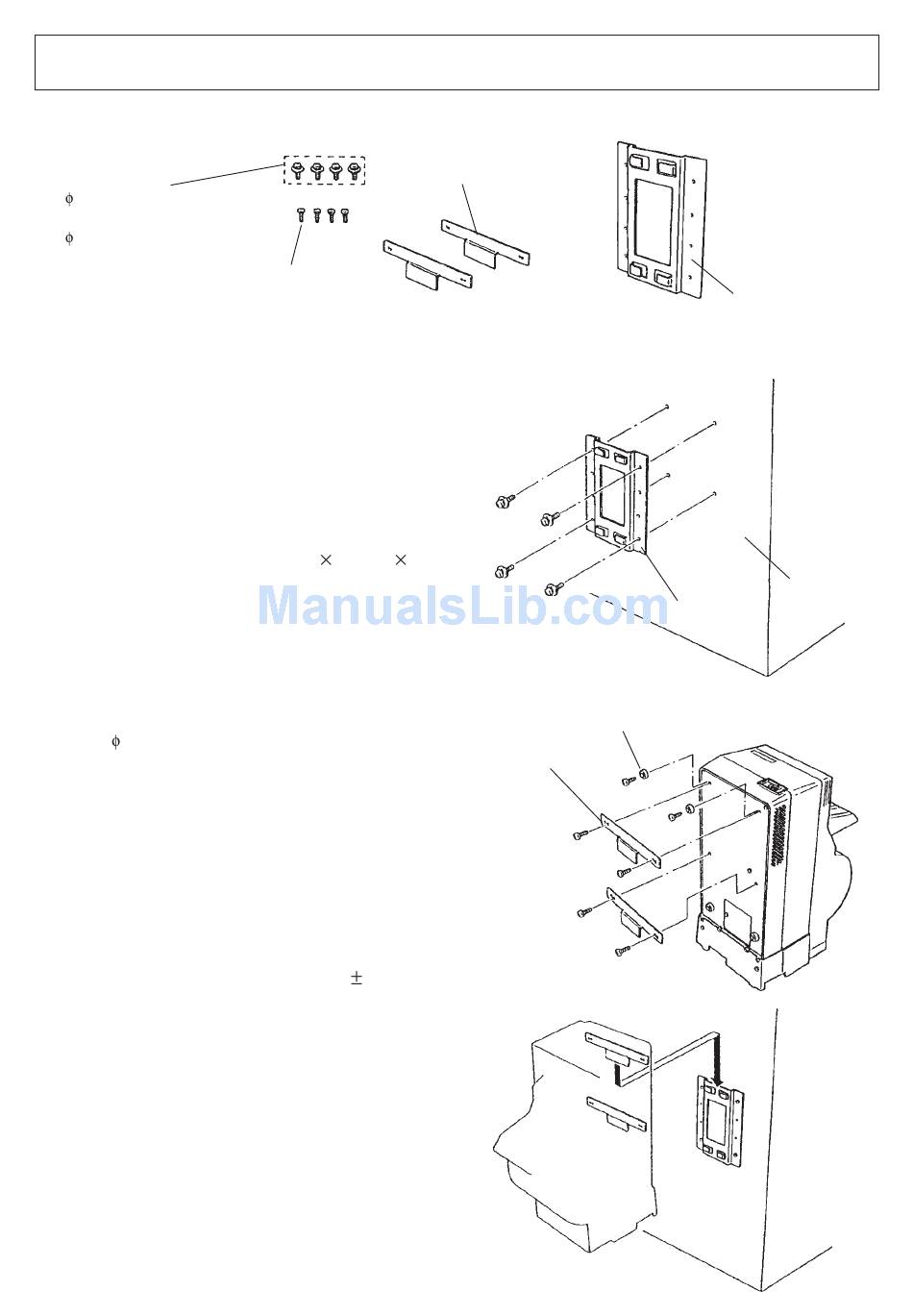

HOW TO ATTACH THE WALL METAL FITTINGS OF SP349

1. Unpacking

: Confirm that all accessories are
included.
Not supplied
4mm screws(4)
Please prepare these
4mm screws by yourself.

2. Attaching procedure

Note1) Unplug the power plug from the outlet.
Note2) Select a position on the wall which is not
subjected to mechanical shocks or water
drops. Also confirm that the wall is
sufficiently wide for attaching the bracket.

2-1 How to attach the bracket

If attachment of the bracket on the wall is
1
not possible,first fix a wooden plate whose
size is more than 120mm 170mm 5mm.
Apply the bracket and mark the positions
2
of the screw holes.
Drill screw holes in the marked positions.
3
Firmly tighten and fix the bracket to the
4
wall with screws.
Attach and fix the bracket with the four
4mm screws.
Please prepare screws of sufficient length
to sccure the bracket.

2-2 How to attach the holder plate

Remove the rubber foot.
1
Firmly tighten the two accessory screws
2
M3 in the direction shown in the figure to
attach the two holder plate onto the printer.
Tightening torque : 9kg fcm 1kg fcm

2-3 Setting

Slide the printer main unit downward from
the top of the bracket so that the holder
plate guides it to a secure position.
Holder plates(2)
M3 screws(4)
:
Bracket
Rubber foot
Holder plate
Bracket(1)
Wall material
80822265
