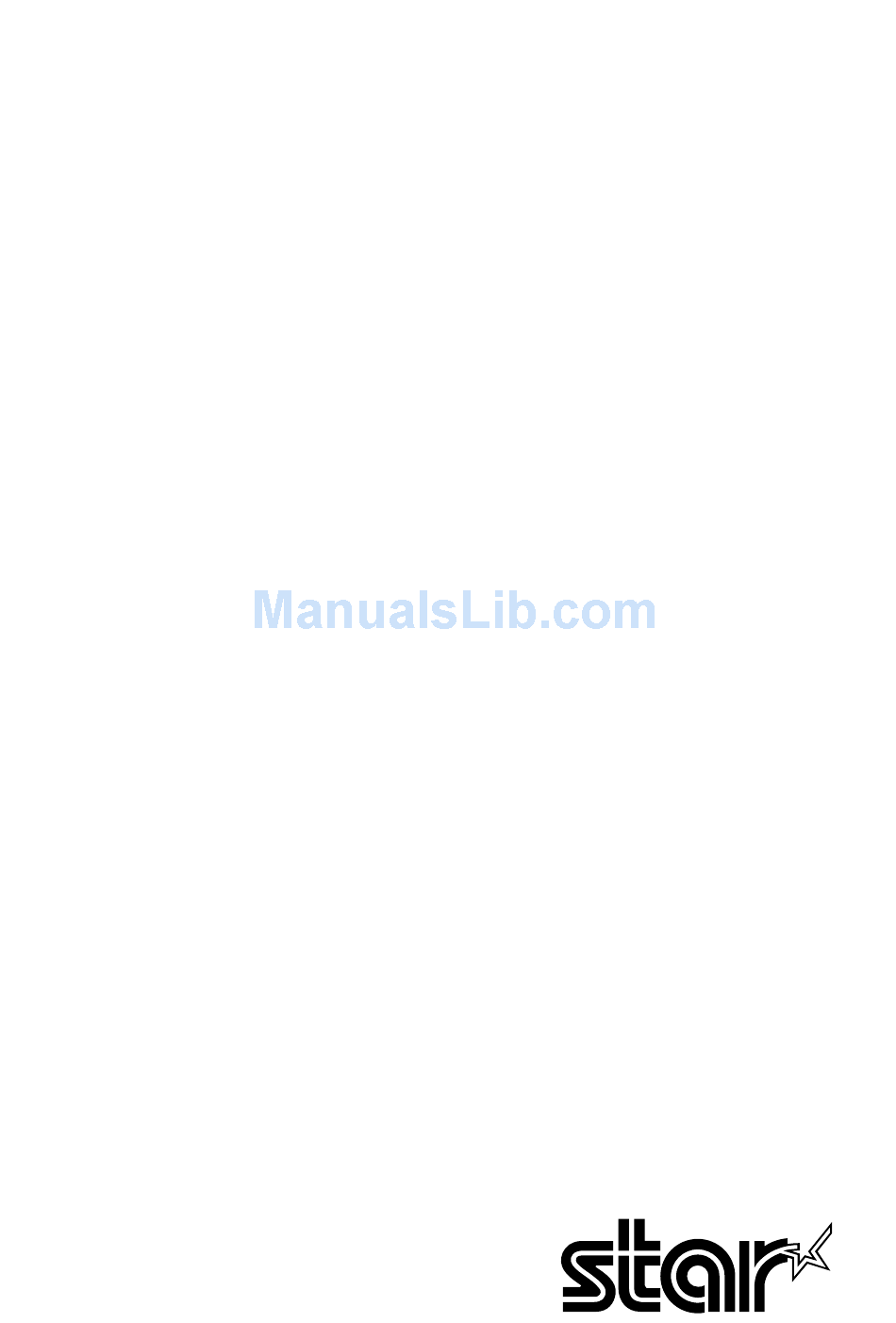

  • Page 1 DOT MATRIX PRINTER SP312F SP342F-A INSTALLATION MANUAL GUIDE D’INSTALLATION AUFSTELLANLEITUNG MANUALE DI INSTALLAZIONE...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. UNPACKING AND INSTALLATION ... 2 1-1. Unpacking ... 2 1-2. Handling Notes ... 2 2. PARTS IDENTIFICATION AND NOMENCLATURE ... 3 3. FERRITE CORE INSTALLATION ... 4 4. CONNECTING THE INTERFACE CABLE ... 6 4-1. Serial Interface Cable ... 6 4-2.

  • Page 4: Unpacking And Installation

    5. Do not attempt to print when the paper or ribbon cartridge are not loaded in the printer as this could damage the print head. 6. Use only roll paper that is not glued to the core.

  • Page 5: Parts Identification And Nomenclature

    2. PARTS IDENTIFICATION AND NOMENCLATURE Fig. 2-1 External view of the printer (SP312) – 3 –...

  • Page 6: Ferrite Core Installation

    NOTE: Take special care when following the procedures listed below. A ferrite core noise filter for the cash drawer drive cable comes packed with the printer. The ferrite core is normally packed so it is opened, as shown in Fig. 3-2. If you...
  • Page 7 Clamp the ferrite core onto the cash drawer drive cable, looping the cable as shown in Fig. 3-2. When installing the ferrite core be careful not to damage the cable. The ferrite core should be anchored firmly in place with the fastener that comes with it, as shown in Fig.

  • Page 8: Connecting The Interface Cable

    2 Insert the connector of the interface cable into the connector on the printer and the other end of the in- terface cable into the connector for the host computer. 3 Next, tighten the screws on the con- nectors.
  • Page 9 TABLE DES MATIÈRES 1. DÉBALLAGE ET INSTALLATION ... 8 1-1. Déballage ... 8 1-2. Remarques concernant la manipulation ... 8 2. IDENTIFICATION DES PIÈCES ET NOMENCLATURE ... 9 3. INSTALLATION DU NOYAU EN FERRITE ... 10 4. CONNEXION DU CÂBLE D’INTERFACE ... 12 4-1.

  • Page 10: Déballage Et Installation

    1. DÉBALLAGE ET INSTALLATION 1-1. Déballage Après avoir déballé l’appareil, vérifiez si vous disposez bien de tous les accessoi- res illustrés ci-après. 1-2. Remarques concernant la manipulation 1. Installez l’appareil sur un support ou sur une table dont la surface est plate et uniforme.

  • Page 11: Identification Des Pièces Et Nomenclature

    2. IDENTIFICATION DES PIÈCES ET NOMENCLATURE Fig. 2-1 Vue externe de l’imprimante (SP312) – 9 –...

  • Page 12: Installation Du Noyau En Ferrite

    3. INSTALLATION DU NOYAU EN FERRITE N.B.: Effectuez cette installation avec beaucoup de soin. Un filtre antibruit en noyau en ferrite destiné au câble de commande d’un tiroir-caisse est livré avec l’imprimante. Le noyau en ferrite devrait normale- ment être ouvert, comme illustré à la figure 3-2.
  • Page 13 Brider le noyau en ferrite au câble de commande du tiroir-caisse après avoir fait une boucle avec le câble, comme illustré à la figure 3-2. En montant le noyau en ferrite, veillez à ne pas endommager le câble. Le noyau en ferrite doit être maintenu fermement en place à l’aide de l’attache livrée, comme illustré...

  • Page 14: Connexion Du Câble D'interface

    4. CONNEXION DU CÂBLE D’INTERFACE 4-1. Câble d’interface sériel Fig. 4-1 Connexion du câble d’interface en série 4-2. Câble d’interface parallèle Fig. 4-2 Connexion du câble d’interface en parallèle 1 Mettez l’ordinateur hôte et l’imprimante hors tension. 2 Insérez un des connecteurs du câble d’interface dans la prise de l’imprimante et l’autre dans la prise de l’ordinateur hôte.
  • Page 15 INHALTSVERZEICHNIS 1. AUSPACKEN UND AUFSTELLUNG ... 14 1-1. Auspacken ... 14 1-2. Hinweise zum Umgang ... 14 2. BESCHREIBUNG UND BEZEICHNUNG DER GERÄTETEILE .. 15 3. INSTALLATION DES FERRITKERNS ... 16 4. ANSCHLUSS DES SCHNITTSTELLENKABELS ... 18 4-1. Serielles Schnittstellenkabel ... 18 4-2.

  • Page 16: Auspacken Und Aufstellung

    1. AUSPACKEN UND AUFSTELLUNG 1-1. Auspacken Überprüfen Sie den Kartoninhalt, und vergewissern Sie sich, daß alle unten abgebildeten Teile vorhanden sind. 1-2. Hinweise zum Umgang 1. Stellen Sie den Drucker auf einem flachen, aber festen Untergrund auf. 2. Schließen Sie keine anderen elektrischen Geräte, die elektrische Störungen erzeugen (wie z.B.

  • Page 17: Beschreibung Und Bezeichnung Der Geräteteile

    2. BESCHREIBUNG UND BEZEICHNUNG DER GERÄTETEILE Abb. 2-1 Außenansicht des Druckers (SP312) – 15 –...

  • Page 18: Installation Des Ferritkerns

    3. INSTALLATION DES FERRITKERNS HINWEIS: Führen Sie die folgenden Arbeiten besonders sorgfältig aus. Ein Ferritkern-Rauschfilter für das Kassenschubladen-Treiberkabel wird mit dem Drucker mitgeliefert. Der Ferritkern ist normalerweise so verpackt, daß er offen ist, wie in der Abbildung 3-2 gezeigt. Wenn Sie fest- stellen, daß...
  • Page 19 Den Ferritkern auf das Kassentreiberkabel klemmen, und das Kabel so mit einer Schleife befestigen, wie in der Abbildung 3-2 gezeigt. Beim Installieren des Ferritkerns darauf achten, das Kabel nicht zu beschä- digen. Der Ferritkern soll fest mit dem mitgelieferten Plastikhalterungsband befe- stigt werden, wie in der Abbildung gezeigt 3-3 und 3-4 gezeigt.

  • Page 20: Anschluss Des Schnittstellenkabels

    4. ANSCHLUSS DES SCHNITTSTELLENKABELS 4-1. Serielles Schnittstellenkabel Abb. 4-1 Anschließen des seriellen Schnittstellenkabels 4-2. Paralleles Schnittstellenkabel Abb. 4-2 Anschließen des parallelen Schnittstellenkabels 1 S c h a l t e n S i e s o w o h l d e n Hostcomputer als auch den Drucker aus.
  • Page 21 1. DISIMBALLAGGIO E INSTALLAZIONE ... 20 1-1. Disimballaggio ... 20 1-2. Note sul maneggio ... 20 2. IDENTIFICAZIONE DELLE PARTI E NOMENCLATURA ... 21 3. INSTALLAZIONE DEL NUCLEO IN FERRITE ... 22 4. COLLEGAMENTO DEL CAVO INTERFACCIA ... 24 4-1. Cavo interfaccia seriale ... 24 4-2.

  • Page 22: Disimballaggio E Installazione

    1. DISIMBALLAGGIO E INSTALLAZIONE 1-1. Disimballaggio Dopo aver disimballato l’unità, controllare che tutti gli accessori siano inclusi nella confezione. Fig. 1-1 Disimballaggio (SP312) 1-2. Note sul maneggio 1. Installare l’unità su un appoggio o un tavolo dalla superficie piana e regolare. 2.

  • Page 23: Identificazione Delle Parti E Nomenclatura

    2. IDENTIFICAZIONE DELLE PARTI E NOMENCLATURA Fig. 2-1 Vista esterna della stampante (SP312) – 21 –...

  • Page 24: Installazione Del Nucleo In Ferrite

    3. INSTALLAZIONE DEL NUCLEO IN FERRITE NOTA: Fare particolare attenzione durante l’esecuzione dei procedimenti sotto indicati. Un filtro disturbi a nucleo in ferrite per il cavo pilota registro di cassa è imbal- lato insieme alla stampante. Il nucleo di ferrite ènormalmente im- ballato aperto, come mostrato nella Fig.
  • Page 25 Fissare il nucleo in ferrite al cavo pilota registro di cassa, avvolgendo il cavo come mostrato nella Fig. 3-2. Quando si installa il nucleo in ferrite, fare attenzione a non danneggiare il cavo. Il nucleo in ferrite deve essere ancorato saldamente in posizione con il fermo in dotazione, come mostrato nella Fig.

  • Page 26: Collegamento Del Cavo Interfaccia

    4. COLLEGAMENTO DEL CAVO INTERFACCIA 4-1. Cavo interfaccia seriale Fig. 4-1 Collegamento del cavo interfaccia seriale 4-2. Cavo interfaccia parallelo Fig. 4-2 Collegamento del cavo interfaccia parallelo 1 Spegnere sia il computer ospite che la stampante. 2 Inserire il connettore del cavo interfaccia nel connettore sulla stam- pante e l’altro capo del cavo interfaccia nel connettore sul com-...

  • Page 27: Dip Switch Setting

    Setting the buffer size Backed up RAM Paper out detection function *1 If you use a parallel interface printer, Switch 1-4 is used for switching the auto cutting control mode. For details, see Switch 3-4 described on the following page. (SP342) *2 The addressable mode is valid only when the optional RS-422A serial interface is mounted.
  • Page 28 DIP-SW 2 Switch Function Character code table (Not used) Setting the paper width (Not used) International character set Character code table (switches 2-1, 2-2) Switch U.S.A. & Europe International character set (Switches 2-6, 2-7 and 2-8) Switch U.S.A. France Germany England Denmark Sweden DIP-SW 3 (For serial interface type only) Switch Function...
  • Page 29 Data transmission rate (baud rate) Baud rate 150 bps 300 bps 600 bps 1200 bps 2400 bps 4800 bps 9600 bps DIP SW 4 (For serial interface type only) Function DC1, DC3 Switch invalid mode #1 #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14 valid mode OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON ON OFF OFF ON ON OFF OFF ON ON OFF OFF ON ON OFF ON ON ON OFF OFF OFF OFF ON ON ON ON OFF OFF OFF...

  • Page 30: Connectors And Signals (Serial Interface)

    Signal ground Not connected This pin is used when using the op- tional interface board. This signal changes to “SPACE” when the printer is ready to receive data. (The signal line is same as pin 20.) Not connected. — Signal ground When a printer error occurs (such as paper out, mechanical error, etc.), this...
  • Page 31 (In this instance, the printer does not check the signal.) Data transmission request signal. When the printer is ready to receive data, this signal changes to “SPACE”. Data transmission request signal. When the printer is ready to receive data, this signal changes to “SPACE”.

  • Page 32: Interface Connections (Serial Intefface)

    Interface Connections (Serial Intefface) The following is a basic example of interface connections. (For interface connections, refer to the specifications for the respective interface.) An IBM PC type serial port is shown in below. Printer Side F–GND S–GND FAULT Example of interface connections for an IBM PC...
  • Page 33 A 9 microsecond LOW pulse acknowledges re- ceipt of the data. When this signal goes to LOW, the printer is ready to accept data. When the printer is in one of the conditions below, “HIGH” is set. 1. Data is being entered.

  • Page 34: Peripheral Unit Drive Circuit

    Peripheral Unit Drive Circuit 6-P modular jack connecter AC power cable: [Drive output 24V, max. 1.0 A] Drive circuit Approx. 155 cm long – 32 –...
  • Page 36 ELECTRONIC PRODUCTS DIVISION STAR MICRONICS CO., LTD. 536 Nanatsushinya, Shimizu, Shizuoka, 424-0066 Japan Tel: 0543-47-0112, Fax: 0543-48-5013 Please access the following URL http://www.star-micronics.co.jp/service/ frame_sp_spr_e.htm for the lastest revision of the manual. OVERSEAS SUBSIDIARY COMPANIES STAR MICRONICS AMERICA, INC. 1150 King Georges Post Road, Edison, NJ 08837-3729 U.S.A.
