Summary of Contents for Avery Weigh-Tronix PC-802

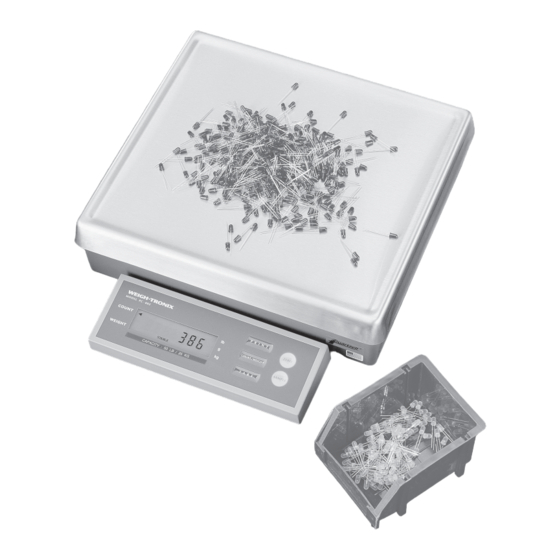

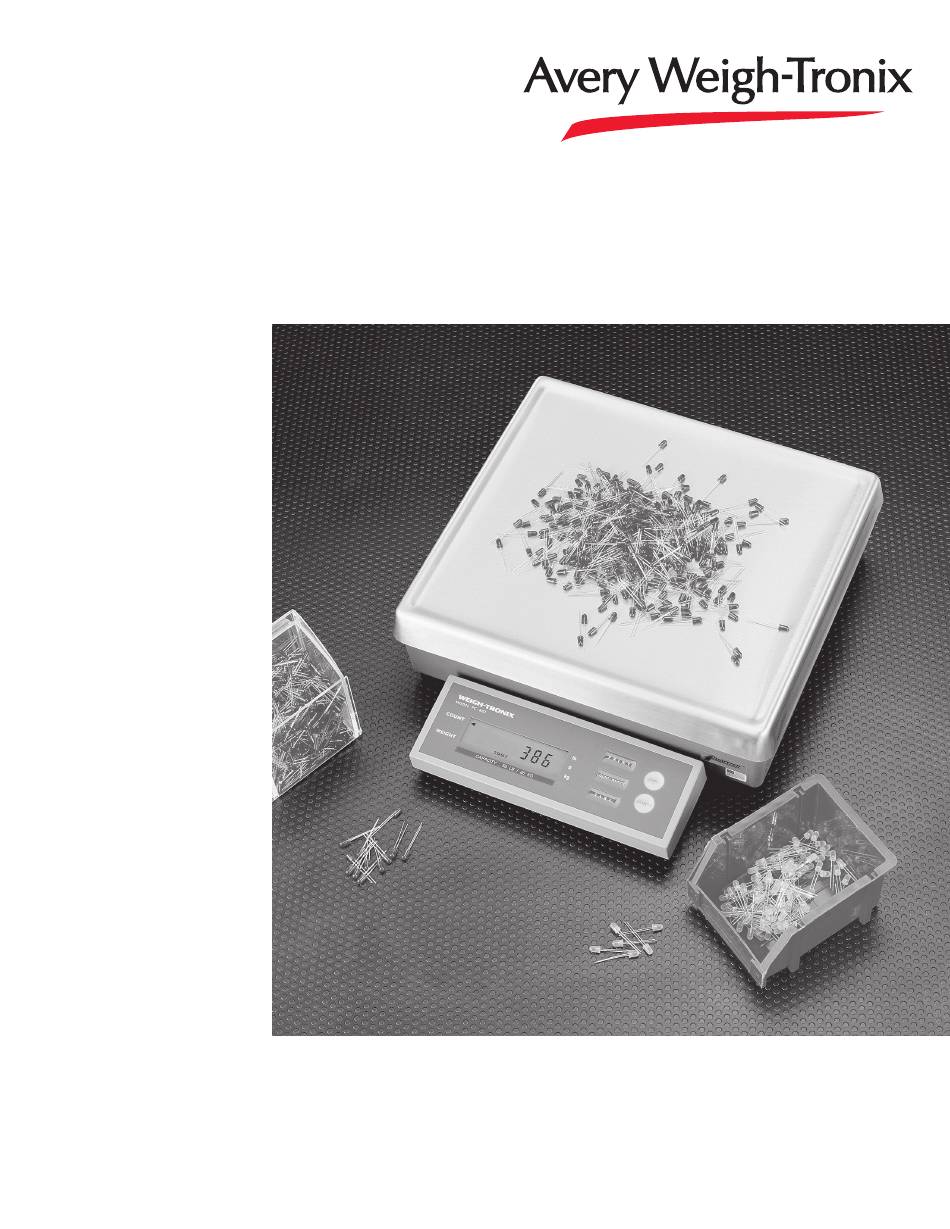

- Page 1 PC-802 Counting Scale User’s Manual...
- Page 2 CAUTION Risk of electrical shock. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. Avery Weigh-Tronix reserves the right to change specifications at any time. 09/28/05 802_U.P65 PN 29672-0014i e2 Printed in USA PC-802 Counting Scale User's Manual...
-
Page 3: Table Of Contents
Operation as a Scale ..............7 Operation as a Counting Scale............8 Bulk Sampling ................ 8 Dribble Sampling ..............9 Serial Communications ................10 Preset Print Formats..............11 Computer Protocol............... 12 Error Messages ..................13 PC-802 Counting Scale User's Manual... -
Page 4: Specifications
15VDC at 300mA from a 117VAC 60Hz inline transformer Optional 12VDC lead acid battery Bidirectional RS-232 output with selectable baud rate Output: Operating environment: 14° to 104° F (-10° to 40° C) 10 to 90% relative humidity, non-condensing PC-802 Counting Scale User's Manual... -
Page 5: Introduction
See the PC-802 Service Manual for details on configuration and calibration. This scale also has an RS-232 I/O channel for communication with appropriate remote devices. Keyboard and Display Figure 1 shows the keyboard and display of the PC-802. The keyboard has five keys: • ZERO • TARE •... -
Page 6: Key Functions
Scale Setup and Operation Scale Setup Unpacking the scale The PC-802 comes with the AC transformer in place beneath the scale. Plug the unit into a grounded 120VAC source. Battery power option If you are going to use the optional DC battery power, remove the trans-... -
Page 7: Operation As A Scale
The PC-802 can be used as a bench scale or as a counting scale. The Operation as a Scale annunciators indicate when you are in the weight mode or count mode and when the unit is configured for pounds or kilograms. -
Page 8: Operation As A Counting Scale
1, 2 , 5, 10, 25, 50 mode when you press the or 100. See the COUNT/WEIGHT key. PC-802 Service Manual for configu- ration instructions. When you press the SAMPLE 2. Place 10 sample parts on the key, the PC-802 performs an scale at the same time. -
Page 9: Dribble Sampling
Wait for the scale to stabilize and press the SAMPLE key. . . StAndbY is displayed while the scale updates the piece weight. If the sample meets the minimum accuracy, the count will be dis- played. PC-802 Counting Scale User's Manual... -
Page 10: Serial Communications
LB and the time and date line. If your printer is not equipped with time and date capability, the time and date line will not appear on the label. Time and date line only appear if the printer has time and date capability. PC-802 Counting Scale User's Manual... -
Page 11: Preset Print Formats
= WWWW.WW<SP>UU<CR><LF> (Net = or Gross =) Count = CCCCCCC<CR><LF> Piece Wt = .PPPPPP<SP>UU<CR><LF> Format 6 Fixed length (nine digits) displayed weight with units. sxxxxx.xx uu<CR> (s = positive (a space) or negative (-) weight) Format 7 COUNT: CCCC<SP>PCS<CR><LF> PC-802 Counting Scale User's Manual... -
Page 12: Computer Protocol
4) HML ..represents three bytes of scale status information as described on the next page. 5) Value entered is assumed to be in same units of measure as what the scale is currently in. 6) Display messages are limited to seven characters. PC-802 Counting Scale User's Manual... -
Page 13: Error Messages
Remove the weight or the cause of unstable weight and press the ZERO key. If condition persists try relocating scale and/or power down and retry. If condition continues, contact your Avery Weigh-Tronix representative. PC-802 Counting Scale User's Manual... - Page 14 PC-802 Counting Scale User's Manual...
- Page 15 PC-802 Counting Scale User's Manual...
- Page 16 Pointe Claire, QC H9R 4R7 Canada Weigh Bar is a registered trademark ® Telephone: 514-695-0380 of Avery Weigh-Tronix and may be registered in certain jurisdictions. Toll free: 800-561-9461 All brands and product names used Facsimile: 514-695-6820 within this document are trademarks www.weigh-tronix.ca...
