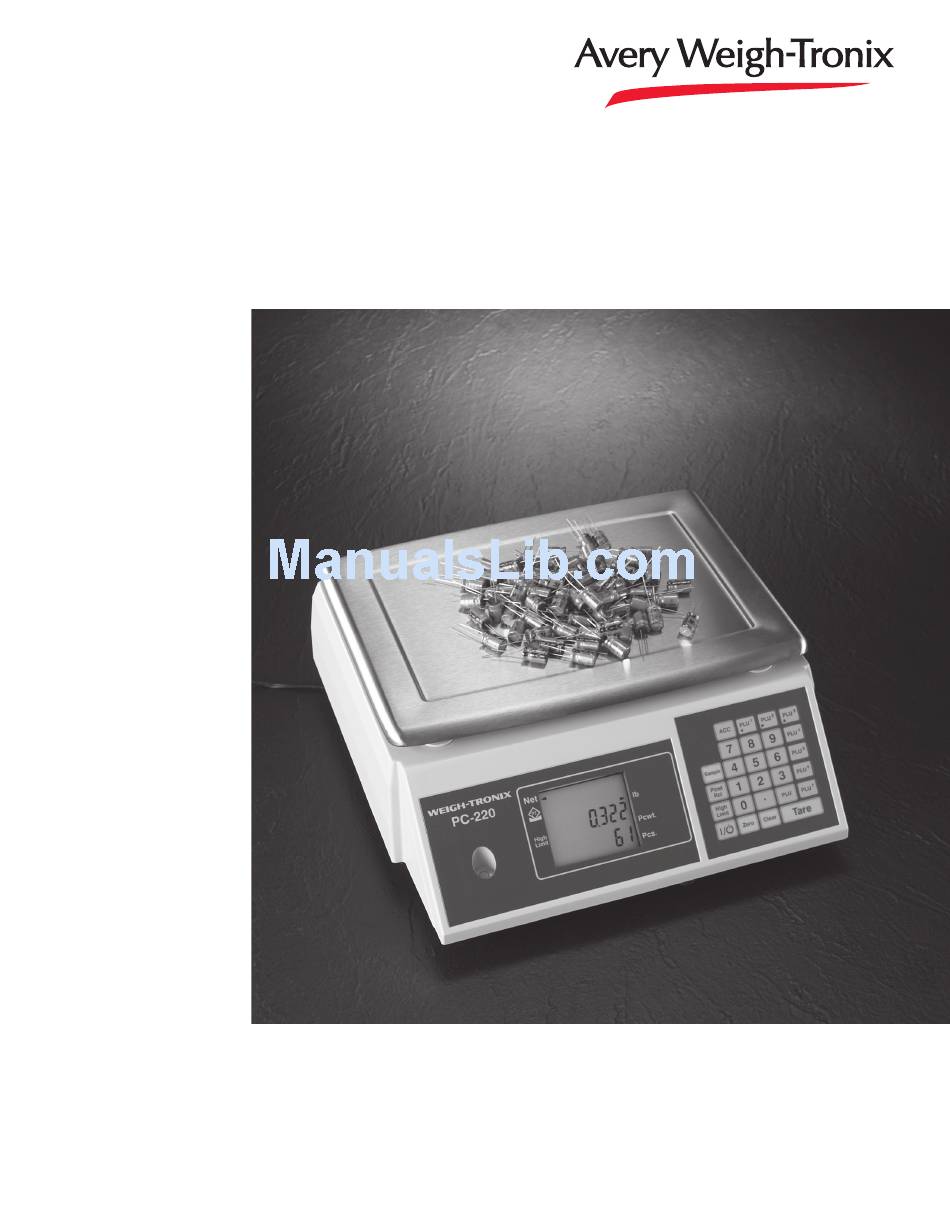

  • Page 1 PC-220 Counting Scale User’s Manual...
  • Page 2 Risk of electrical shock. Do not remove cover. No user service- able parts inside. Refer servicing to qualified service personnel. Weigh-Tronix reserves the right to change specifications at any time. 12/13/04 PC220_U.P65 PN 29772-0013D e1 Printed in USA PC-220 Counting Scale User’s Manual...

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................ 5 Installation ..........................5 Sleep Mode ..........................5 Error Messages ........................5 PC-220 Front Panel ........................ 6 Keypad ..........................6 Display ..........................6 Using the Scale ..........................8 Zeroing the Scale ........................8 Using the Clear Key ........................ 8 Clearing a Numeric Entry ......................
  • Page 4 PC-220 Counting Scale User’s Manual...

  • Page 5: Introduction

    Introduction This manual covers the operation of the PC-220 parts counting scale by Weigh-Tronix. Major sections of the manual begin with black barred text as seen above. Minor section headings appear in the left column along with important notes and warnings.

  • Page 6: Pc-220 Front Panel

    PC-220 Front Panel The front panel of the PC-220 is made up of the keypad, for entering information, and the display. The keypad of the PC-220 is shown in Figure 1. The display window is shown in Figure 2. Keypad...
  • Page 7 For example, when in net weighing mode a small triangle will appear pointing at the word Net. When you are in the counting mode the screen will display the information shown in Figure 3. Figure 3 Count mode display information PC-220 Counting Scale User’s Manual...

  • Page 8: Using The Scale

    Tare key, the action negative weight. may not take place. Try pressing Tare again. Place the tared object and the items to be weighed on the scale. . . The net weight of the items is displayed. PC-220 Counting Scale User’s Manual...

  • Page 9: Cancelling A Tare

    The number of items is Short key press = 1 beep shown on the bottom line of the Long key press = 2 beeps display. 4. The scale is now ready for counting. PC-220 Counting Scale User’s Manual...

  • Page 10: Reverse Sampling

    Weight Clearing the Active Piece Short press the Pcwt/Rcl key and short press the Clear key while the piece weight is displayed. The piece weight is deleted and the weight is Weight displayed. PC-220 Counting Scale User’s Manual...

  • Page 11: Using The High Limit Alarm

    If you want the PLU to be available through one of the 7 hot keys on the front panel you must choose a number between 1 and 7(inclusive). . . The PLU is created and stored. PC-220 Counting Scale User’s Manual...

  • Page 12: Recalling A Plu Using The Plu Key

    Clearing a PLU Using weight on the scale long press the a PLU hot key Clear key then long press the hot key you want cleared. . . The information from that memory slot is cleared. PC-220 Counting Scale User’s Manual...

  • Page 13: Accumulator Function

    The PC-220 has an accumulator feature which allows you to add together Accumulator Function or accumulate counts of items to keep a running total of items counted so far. You can store up to 9999 accumulations and a total count of 9,999,999.

  • Page 14: Management Mode

    Management Mode Management mode is a menu structure you enter to set various options in the PC-220. The display will look similar to that shown in Figure 4 when you are in management mode. Figure 4 Management mode display sample...

  • Page 15: Beeper Alarm

    0 = Quiet 1 = Loud Go to branch 20, sub-branch 01 Changing Backlight Time 0 = always off 1 = 5 seconds 2 = 1 minute 3 = 5 minutes 4 = always on PC-220 Counting Scale User’s Manual...

  • Page 16: Changing Sleep Time

    100 - 1000 = % of initial sampling size (200) Go to branch 61, sub-branch 02 Changing Automatic Resampling Range 0 = automatic resampling off 100 - 1000 = % of initial sampling size (0) PC-220 Counting Scale User’s Manual...

  • Page 17: Changing A Plu Item Weight

    Enter the tare weight Enter the number of decimal places (grams shown below) Go to PLU branch number (example shown is PLU 5), sub-branch 4. Protecting a PLU 0 = Not protected 1 = Protected PC-220 Counting Scale User’s Manual...
  • Page 18 PC-220 Counting Scale User’s Manual...
  • Page 19 PC-220 Counting Scale User’s Manual...
  • Page 20 Smethwick, West Midlands England B66 2LP Tel: +44 870 90 34343 Fax: +44 121 224 8183 Email: info@awtxglobal.com Web site:www.averyweigh-tronix.com Avery Weigh-Tronix Canada, ULC 217 Brunswick Boulevard Pointe Claire, QC H9R 4R7 Canada Telephone: 514-695-0380 Toll free: 800-561-9461 Facsimile: 514-695-6820 www.weigh-tronix.ca...
