Summary of Contents for Transpak MERCURY TP-702-59

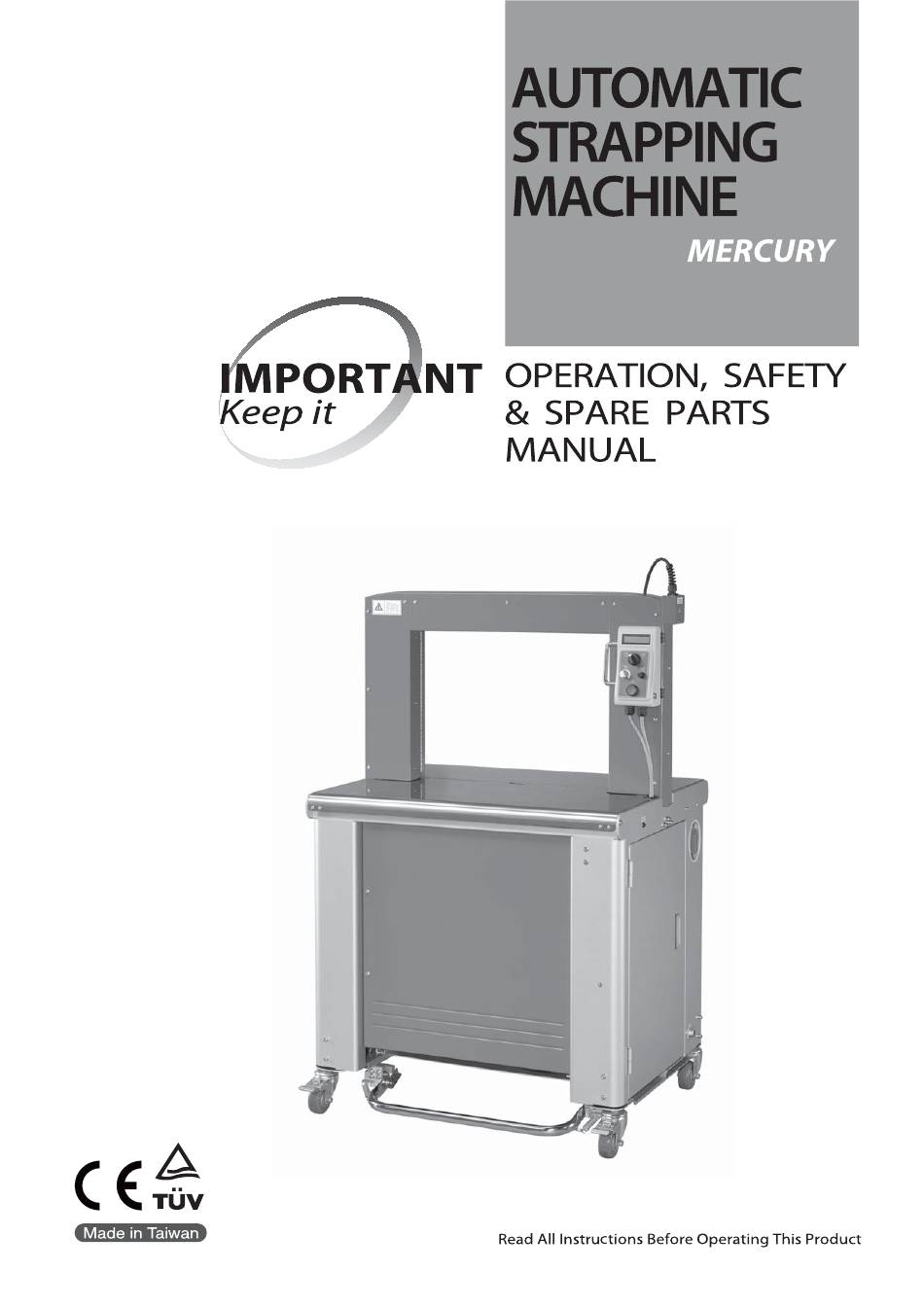

  • Page 1 See Pages TP-702 Original Instruction 05/2017...
  • Page 2: Table Of Contents

    CONTENTS PART I General Safety Instructions ............... A1 1.1 Basic Operation ................. A1 1.2 Basic Safety Precautions ............A1 1.3 Safety Instructions Governing Specific Operational Phases ..A2 1.4 Warning of Electrical Dangers ..........A3 1.5 Grounding Instructions Shall Include the Following ....A3 1.6 Before Operating ...............
  • Page 3 2.6 Technical Specification ............. A9 Preparation Before Operating the Machine ........A11 3.1 Shipping ................... A11 3.2 Transportation & Centre of Gravity ......... A11 3.3 Construction Layout ..............A12 3.4 Installation ................A13 3.5 Operation Space ...............A15 3.6 Operating Elements ..............A16 3.7 Instructions for Loading PP Strap ..........A18 3.8 Auto Strap Feeding Process ............A20 4.
  • Page 4 5.6 Adjustment on Tensioning Rollers for High Tension ....A31 6. Troubleshooting................A32 7. Maintenance ..................A34 PART II 1. Wiring Diagram ……………………………………………………..B1 PART III 1. Strapping Head Unit ………………………...………………………C1 2. Bandway Unit ……………………………………………..……….C43 3. Accumulator Unit ………………………………………………….C69 4. Reel Control Group ………………………………………………..C95 5.
  • Page 5: Part I

    PART I...
  • Page 6: General Safety Instructions

    1 General Safety Instructions 1.1 Basic Operation Read the operation and safety manual prior to using the strapping machine.  The operation and safety manual should remain attached to the machine at all times.  The machine may only be operated in accordance with its designated use. ...
  • Page 7: Safety Instructions Governing Specific Operational Phases

    1.3 Safety Instructions Governing Specific Operational Phases Avoid unsafe operation of the equipment.  The machine is only to be operated when it is in good running order. Only operate the  equipment in a safe manner; all protective and safety devices must be in place and fully functional.
  • Page 8: Warning Of Electrical Dangers

    1.4 Warning of Electrical Dangers Immediately remove power to the machine in case of trouble in the electrical system.  Replace a fuse with one with the same style and ratings; pay particular attention to matching the specified current. Any electrical work performed on the equipment must be conducted by a skilled ...
  • Page 9: Before Operating

    1.6 Before Operating Read the instruction manual before operating the machine for your safety.  Wear eye protection and safety gloves before operating this machine.  Eye protection must be worn Safety gloves must be worn Verify that the power line voltage is correct. ...
  • Page 10: Signs And Symbols

    1.9 Signs and Symbols Meaning Symbol Warning for dangerous voltage! Contact with live electrical parts will result in severe injury or death. Warning for hot surface! Welding area is approximately 270 520℉ Allow sufficient time for the heater to cool down before any work in welding area.
  • Page 11: Machine Information

    2 Machine Information 2.1 Areas of Application The strapping machine is to be used for strapping packages, cartons, paper boxes, newspapers, magazines and those materials using a polypropylene (PP) strapping for stabilizing purposes when in transportation. Be careful for rigidity of working materials, and don’t try to pack agri-foodstuffs or other such material.
  • Page 12: Storage

    The user should refer to a professional expert or relevant authority to prevent the dangerous substance/ gas emitted by suitable means according to local /national environmental/health codes/regulations. 2.3 Storage The store room must be dry.  Do not expose the machine to extreme cold or heat environment. ...
  • Page 13: Safety Devices

    2.5 Safety Devices Danger! Operate the machine only when all safety devices are at their place and are functioning correctly. The machine has been constructed in accordance with the applicable legal regulations. The machine is reliable in operation. Nevertheless the machine may constitute a danger if it is operated in improper or undue condition.
  • Page 14: Technical Specification

    If it is necessary to make adjustments inside the machine during operation, after a strap jam for example, the rear table top can be unscrewed. Observe caution as the machine is still fully functional with the covers removed. When the front table top is opened, safety switch B6 is activated.
  • Page 15 2.6.2 Technical Data (Option) Strap width 5mm, 6mm, 9mm Strap thickness 0.35mm up to 0.65mm (0.014” – 0.026”) Coil diameter 200mm (8” nominal) Strap coil diameter Outside diameter 420mm (16.5”) Width(Face) 190mm (7.5”) Minimum – 820mm (32.3”) Table height Maximum – 920mm (36.2”) Minimum –...
  • Page 16: Preparation Before Operating The Machine

    3 Preparation Before Operating the Machine 3.1 Shipping The equipment is delivered in transport units. Each transport unit is loaded onto a wooden pallet, secured by polyester strapping. 3.2 Transportation & Centre of Gravity The machine must be secured on a pallet for transportation.
  • Page 17: Construction Layout

    Danger to Lift! Suspend loads can fall down. By inappropriate mounting or fracture of hoisting device the load can fall down and cause serious injuries or death. Do not step under suspended loads! Use appropriate hoisting devices and fasteners. 3.3 Construction Layout 1.
  • Page 18: Installation

    15. Feed Motor M2 16. Tension Motor M3 17. Strap Accumulator Motor M4 18. Automatic Feed Motor M5 19. Proximity Sensor SQ1 20. Proximity Sensor SQ2 21. Proximity Sensor SQ3 22. Fan (M11) 23. Heater 24. Photo Eye (Option) 25. Timer Box (Option) 26.
  • Page 19 c. Have M7-4-101200 Shaft threading from inside of the machine and then lift the Reel Group and move the Gas Spring to make the PIN also goes through the hole and use 2 Allan Key with 3mm to fix THS0508N+PW05+SW05 all together. M7-4-101200+THS0508N +SW05+PW05 PW05...
  • Page 20: Operation Space

    4. After positioning the machine ready for working, be sure to lock two front casters (with brake) to avoid machine’s movements. 5. When moving the machine, be sure to un-lock the two lockable casters. Re-lock the two casters after re-positioning the machine. 6.
  • Page 21: Operating Elements

    3.6 Operating Elements 1. Main Power Switch: Provides the machine with power. Switch to “1” position for turning the main power on. After strapping, switch it to “0” to turn off the machine. 2. LCD Display: Indicates strapping condition of machine and error massages.
  • Page 22 7. Reel Release Switch: To release the dispenser for easily taking out strapping from it. 8. Foot Bar (Front): To initiate a strapping cycle. To clear up machine fault. (reset) 9. Foot Pedal Switch (Option): To initiate a strapping cycle. To clear up machine fault.
  • Page 23: Instructions For Loading Pp Strap

    11. Foot Bar (Rear)(Option): To initiate a strapping cycle. To clear up machine fault. (reset) 3.7 Instructions for Loading PP Strap 3.7.1 Specifications Polypropylene Strap Width: 5, 6 or 9mm Thickness: 0.35-0.65 mm (0.014” –0.026”) Note: Strap coil should not be heavier than 12kg (27 lbs). Too heavy strap would damage the Reel support system.
  • Page 24 3.7.2 Strap Reel Installation 1. Open the side door on the right of the machine (fig. 1). 2. Lift the reel handle up all the way to Handle the end (fig. 1). 3. Release the Reel Nut Handle by pressing and turning it to the left. 4.
  • Page 25: Auto Strap Feeding Process

    3.8 Auto Strap Feeding Process 1. Turn Main Power Switch on the right side of machine to the right (at 1 position), and press Start Switch. 2. Open the side door on the right. 3. Press “Reel Release Switch A” and pull out around 90cm strap. 4.
  • Page 26 Guide roller D Lever F Roller E Fig. e Fig. f Fig. g Caution: If strap is fed more than 6cm ahead the rollers, it could make Auto Strap Feeding failed. 8. Close the side door and press Start Switch. Machine will complete the Auto Strap Feeding in 5 sec.
  • Page 27: Operating The Machine

    4. Operating the Machine Switch Main Power Switch to After switching on the strapping machine, heater Position “1” starts to warm up and LCD display continues to be on until the heater reaches its operating temperature (about 2 minutes). Heater warms up and LCD Caution! display keeps on lightening Machine will not operate until heater reaches to...
  • Page 28: Function Encoder

    4.3 Function Encoder Ready LCD display will show various timers such as cooling time, timer 1, timer 2…etc. After pressing the function encoder for over 2 seconds, Press encoder turn the knob to choose the timer needed to be over 2S changed.
  • Page 29: Adjustments

    5. Adjustments 5.1 Strap Amount in the Accumulator Box The machine has been already well set for storing enough amount of strap in accumulator Box. However, some adjustments may be required, depending on the actual quality or thickness of the strap used. The strap supply in the accumulator box should be sufficient for about 2-5 strapping cycle.
  • Page 30: Adjustment For Feeding Pressure To The Accumulator Box

    5.2 Adjustment for Feeding Pressure to the Accumulator Box The machine has been already well set for enough feeding pressure offering enough strength for pulling strap from strap coil to accumulator box. It might be necessary for some adjustments to increase feeding pressure if you are using smooth strap. When it’s necessary for increasing the feeding pressure, please loosen the Nut A and turn Nut C upwards to increase the strength of Spring B.
  • Page 31: Adjustment For Heater Temperature

    5.3 Adjustment for Heater Temperature The machine has been already well set for proper heater temperature. It might be necessary to do some adjustments according to temperature in working environment, and the quality of P.P. strap to ensure better sealing efficiency. Turn ‘’A’’...
  • Page 32 2. Adjusting “M7-1-311500 Adjusting Plate” only for 5mm and 6mm. Loosen #25 HBS0412N×2 to remove #11 M7-1-310001 Upper Guide Ass'y (For 5-6mm) from the machine. Then loosen FMS0408×4 on it and take a piece of p.p. strap which would be running by this machine for properly adjusting M7-1-311500 Adjusting Plate (Only 5-6mm).
  • Page 33 3. Adjusting “Right Strap Guide” Loosen the screws on the “Right Strap Guide” and take it out. Then loosen the 2 screws B (HBS0408N) and adjust A according to the strap. Be sure D is about 0.1mm wider than the strap. After adjustment, tighten screws B and put the “Right Strap Guide”...
  • Page 34: Adjustment For Feeding/Reversing Pressure

    5. Adjusting Strap Amount in the Accumulator Box Different strap widths might have effects on the strap amount in the accumulator box. Please do the adjustment according to 5.1 if necessary. 5.5 Adjustment for Feeding/Reversing Pressure The upper table rear was screwed by captive screws. To take it out, please loosening the captive screws about 5mm first and then lift the end side of rear side up and slide it out.
  • Page 35 1. Adjusting the Pressure for Feeding The machine is already well set for proper feeding pressure. However, according to different strap characteristics (such as smoother surface or different thickness), some adjustments for feeding pressure are still necessary. If short feed problem happens a lot, and it is a result of improper feeding pressure, please do the following adjustments: Loosen Nut B and turn Nut A clockwise to increase the feeding pressure.
  • Page 36: Adjustment On Tensioning Rollers For High Tension

    5.6 Adjustment on Tensioning Rollers for High Tension The machine is already well set for proper pressure for high tension. However, according to different strap characteristics (such as smoother surface or different thickness), some adjustments on pressure for high tension might be necessary. When insufficient strapping tension occurs even the Soft-High tension switch is at “high”...
  • Page 37: Troubleshooting

    6. Troubleshooting The LCD display would flash and show failure message when machine is not working due to malfunction. Message shown on the LCD could be follows: 1. Reminder message: a. Push Start: Please press the Start Switch to make machine function. This is especially necessary after the Safety Switch is released or after you just turn on the machine.
  • Page 38 ○ ○ b-1. Open Upper Table Front Ass'y M7-5-210001/M7-5-220001. b-2. Lift up the Lever ○ (M7-2-101400/M7-2-101410) with left hand and take out the Cover ○ (M7-1-311201/M7-1-311211) for the Upper Guide with right hand at the same time. b-3. Take out the jammed strap and cut it. b-4.
  • Page 39: Maintenance

    7. Maintenance Warning: Before any maintenance or repairs on the machine, set the Main Power Switch to "O" (OFF). Wait about 5 minutes for cooling down the heater to avoid burns with this area. 1. Cleaning and Lubrication The high reliability and long service life of the strapping machine will depend on regular cleaning and maintenance.
  • Page 40 Weekly: Lubricate front bar, press bar, rear bar and shafts in arch weekly. Please refer to the following mesh areas for instruction. Before lubricating, be sure to clean the parts first to avoid mixing oil and debris which might have a bad effect on machine’s function. Check the machine by strapping several bundles for any failures.
  • Page 41 6 Months : (or 500,000 strapping cycles) Check heating element, replace and re-adjust it if necessary. Check strap cutter in sealing head, replace it if necessary. Check if the connector at wiring housing to printed circuit board is firmly fixed. Check if the safety switch on front table or right door functions well.
  • Page 42 3. After you loosen the nuts, turn the Heater Bracket back to its original position. 4. Take out the Heater Ass’y and make sure the insulations stay intact. If any of insulation fall and get broken, please replace with new one to avoid welding problem. 5.
  • Page 44 PART II...
  • Page 45: Wiring Diagram

    1. Wiring Diagram -B1-...
  • Page 46 -B2-...
  • Page 47 -B3-...
  • Page 48 -B4-...
  • Page 49 -B5-...
  • Page 50 -B6-...
  • Page 51 -B7-...
  • Page 52 -B8-...
  • Page 53 -B9-...
  • Page 54 -B10-...
  • Page 55 -B11-...
  • Page 56 PART III...
  • Page 58: Strapping Head Unit

    STRAPPING HEAD UNIT M7-1-900063 M7-1-900073 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-900063 Strapping Head Unit (For 5-6mm) M7-1-900073 Strapping Head Unit (For 9mm) M7-1-100023 Cam Group (For 5-6mm) SEE PAGE C3 M7-1-100041 Cam Group (For 9mm) M7-1-200000 Bar Guide Group SEE PAGE C19 M7-1-300002 Feed Group (For 5-6mm)
  • Page 59 CAM GROUP M7-1-100023 M7-1-100041 (SQ3) (SQ2) (SQ1) SEE PAGE C168 #14 SEE PAGE C164 #11 -C3-...
  • Page 60 CAM GROUP M7-1-100023 M7-1-100041 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-100023 Cam Group (For 5-6mm) M7-1-100041 Cam Group (For 9mm) M7-1-101101 Strapping Head Frame M7-1-101200 Guide Ejector Plate (L) M7-1-101300 M7-1-101400 Ejector Plate (R) M7-1-101500 Shaft M7-1-101600 Collar M7-1-101700 Cover M7-1-101800 Sensor Base M7-1-101900...
  • Page 61 CAM GROUP M7-1-100023 M7-1-100041 REF. PART NO. DESCRIPTION Q'TY REMARKS HN08 HN, M8 THS0508N THS, M5×8 (N) SW, M3 SW03 SW, M3 (Option) SW05 SW, M5 SW06 SW, M6 SW08 SW, M8 PW03 PW, M3 (Option) PW05 PW, M5 PW06C PW, M6 (C) HB0620 HB, M6×20...
  • Page 62 -C6-...
  • Page 64 1-1-1 GEAR BOX AND CAM ASS'Y M7-1-110002 M7-1-110020 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-110002 Gear Box and Cam Ass'y (For 5-6mm) M7-1-110020 Gear Box and Cam Ass'y (For 9mm) M7-1-111100 Retracting Cam M7-1-111200 Tension Cam M7-1-111300 Heater Cam Front Bar Cam M7-1-111400 M7-1-111500 Press Bar Cam...
  • Page 66 1-1-2 M1 MOTOR ASS'Y M7-1-120000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-121100 Gear Box Support M1 Motor M7-1-221100 HBS0520N HBS, M5×20 (N) SW05 SW, M5 KYC0210 Key, 2×10 -C10-...
  • Page 67 SLIDE TABLE FRAME ASS'Y 1-1-3 M7-1-130002 M7-1-130030 43 or 44 -C11-...
  • Page 68 1-1-3 SLIDE TABLE FRAME ASS'Y M7-1-130002 M7-1-130030 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-130002 Slide Table Frame Ass'y (For 5-6mm) M7-1-130030 Slide Table Frame Ass'y (For 9mm) M7-1-131102 Slide Table Frame M7-1-131200 Shaft Switch Lever M7-1-131301 M7-1-131401 Sensor Plate M7-1-131500 Spring Base M7-1-131600 Slide Table...
  • Page 70 1-1-4 HEATER ARM ASS'Y M7-1-140000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-141100 Heater Crank M7-1-141200 Heater Shaft M7-1-141200S Heater Shaft (Stainless Steel Model)(Option) M7-1-141300 Heater Bracket M7-1-141300S Heater Bracket (Stainless Steel Model)(Option) M7-1-141400 Terminal Bracket M7-1-141500 Isolator WA-030501 Washer ( 5.5× 18 t=3) M7-1-140101 Heater Set TA-073...
  • Page 72 1-1-5 EXHAUST FAN ASS'Y M7-1-150000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-151100 Fan Bracket T5-1-12370 T7-6-10930 Fan Cover TMS0412N TMS, M4×12 (N) HBS0410N HBS, M4×10 (N) SW04 SW, M4 PW04 PW, M4 HN04 HN, M4 -C16-...
  • Page 74 1-1-6 BLOCK ASS'Y T7-1-16000 REF. PART NO. DESCRIPTION Q'TY REMARKS T7-1-10891 Block BR635ZZ Bearing, 635ZZ SP0516 Spring Pin, 5×16 -C18-...
  • Page 76 BAR GUIDE GROUP M7-1-200000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-201100 Bar Guide M7-1-201200 Bar Guide Lid M7-1-201200S Bar Guide Lid (Stainless Steel Model)(Option) M7-1-201300 Cutter Holder M7-1-201300S Cutter Holder (Stainless Steel Model)(Option) M7-1-201400 Strap Guide M7-1-201400S Strap Guide (Stainless Steel Model)(Option) M7-1-210001 Front Bar Ass'y SEE PAGE C21...
  • Page 78 1-2-1 FRONT BAR ASS'Y M7-1-210001 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-210001 Front Bar Ass'y M7-1-210001S Front Bar Ass'y (Stainless Steel Model)(Option) M7-1-211101 Front Bar M7-1-211101S1 Front Bar (Stainless Steel Model)(Option) TA-073 Spring Hook TA-078 Spring T7-1-13121 Plunger BRNART6VR Bearing, NART6VR SP0318 Spring Pin, 3×18 SP0616...
  • Page 80 1-2-2 PRESS BAR ASS'Y M7-1-220000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-220000 Press Bar Ass'y M7-1-220000S Press Bar Ass'y (Stainless Steel Model)(Option) M7-1-221200 Press Bar M7-1-221200S1 Press Bar (Stainless Steel Model)(Option) TA-073 Spring Hook TA-078 Spring T7-1-13121 Plunger BRNART6VR Bearing, NART6VR SP0318 Spring Pin, 3×18 SP0616...
  • Page 82 1-2-3 REAR BAR ASS'Y M7-1-230000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-230000 Rear Bar Ass'y M7-1-230000S Rear Bar Ass'y (Stainless Steel Model)(Option) M7-1-231100 Rear Bar M7-1-231100S Rear Bar (Stainless Steel Model)(Option) TA-073 Spring Hook TA-078 Spring T7-1-13121 Plunger BRNART6VR Bearing, NART6VR SP0318 Spring Pin, 3×18 SP0616...
  • Page 83 FEED GROUP M7-1-300002 M7-1-300012 SEE PAGE C163 #11 -C27-...
  • Page 84 FEED GROUP M7-1-300002 M7-1-300012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-300002 Feed Group (For 5-6mm) M7-1-300012 Feed Group (For 9mm) M7-1-301300 Bearing Housing M7-1-301400 Guide Wheel (For 5-6mm) Guide Wheel (For 9mm) M7-1-301410 M7-1-301500 Spacer (For 5-6mm) M7-1-301510 Spacer (For 9mm) M7-1-300100 Feeding Motor (M2) Set M7-1-310001...
  • Page 86 1-3-1 UPPER GUIDE ASS'Y M7-1-310001 M7-1-310011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-310001 Upper Guide Ass'y (For 5-6mm) M7-1-310001S Upper Guide Ass'y (Stainless Steel Model) (For 5-6mm)(Option) M7-1-310011 Upper Guide Ass'y (For 9mm) M7-1-310011S Upper Guide Ass'y (Stainless Steel Model) (For 9mm)(Option) M7-1-311103 Upper Guide (For 5-6mm)
  • Page 88 1-3-2 ASSISTANT ROLLER ASS'Y M7-1-320001 M7-1-320011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-320001 Assistant Roller Ass'y (For 5-6mm) M7-1-320011 Assistant Roller Ass'y (For 9mm) M7-1-321100 Assistant Roller Bracket (For 5-6mm) M7-1-321100S Assistant Roller Bracket (Stainless Steel Model)(For 5-6mm)(Option) M7-1-321110 Assistant Roller Bracket (For 9mm) M7-1-321110S Assistant Roller Bracket (Stainless Steel Model)(For 9mm)(Option)
  • Page 90 1-3-3 FEEDING ARM ASS'Y M7-1-330000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-331100 Feeding Arm M7-1-331200 Linkage M7-1-331300 Shaft M7-1-331400 Collar M7-1-331500 Spring Hook T7-1-64130 Return Spring BR6901ZZ Bearing, 6901ZZ HBS0616N HBS, M6×16 (N) HBS0640N HBS, M6×40 (N) PMS0420 PMS, M4×20 HN04 HN, M4 HN06...
  • Page 92 1-3-4 RETRACTING ARM ASS'Y M7-1-340000 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-341100 Retracting Arm M7-1-341200 Shaft TA-073 Spring Hook BR635ZZ Bearing, 635ZZ MB1015 Metal Bushing, 1015 HBS0516N HBS, M5×16 (N) HB0612 HB, M6×12 SW05 SW, M5 SW06 SW, M6 PW05 PW, M5 PW06B PW, M6 (B)
  • Page 93 TENSION GROUP M7-1-400002 M7-1-400012 SEE PAGE C164 #11 -C37-...
  • Page 94 TENSION GROUP M7-1-400002 M7-1-400012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-400002 Tension Group (For 5-6mm) M7-1-400012 Tension Group (For 9mm) M7-1-401100 Tension Guide Wheel (For 5-6mm) M7-1-401100S Tension Guide Wheel (Stainless Steel Model) (For 5-6mm)(Option) M7-1-401110 Tension Guide Wheel (For 9mm) M7-1-401110S Tension Guide Wheel (Stainless Steel Model) (For 9mm)(Option)
  • Page 96 1-4-1 TENSION CRANK ASS'Y M7-1-410001 M7-1-410011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-410001 Tension Crank Ass'y (For 5-6mm) M7-1-410011 Tension Crank Ass'y (For 9mm) M7-1-411100 Assistant Roller (For 5-6mm) M7-1-411100S Assistant Roller (Stainless Steel Model) (For 5-6mm)(Option) M7-1-411110 Assistant Roller (For 9mm) M7-1-411110S Assistant Roller (Stainless Steel Model) (For 9mm)(Option)
  • Page 98 1-4-2 TENSION ARM ASS'Y M7-1-420001 M7-1-420011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-1-420001 Tension Arm Ass'y M7-1-420011 Tension Arm Ass'y (For 9mm, Tension 45kg) (Option) M7-1-421101 Tension Arm M7-1-421200 Shaft M7-1-421400 Spring Support M7-1-421510 Spring Spring (For 9mm, Tension 45kg)(Option) M7-1-421520 M7-1-421600 M7-1-421700...
  • Page 99: Bandway Unit

    BANDWAY UNIT M7-2-900002 M7-2-900012 (For 850W~1850W) -C43-...
  • Page 100 BANDWAY UNIT M7-2-900002 M7-2-900012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-900002 Bandway Unit (For 5-6mm) M7-2-900002S Bandway Unit (Stainless Steel Model) (For 5-6mm) M7-2-900012 Bandway Unit (For 9mm) M7-2-900012S Bandway Unit (Stainless Steel Model) (For 9mm) M7-2-100001 Arch Group SEE PAGE C45 M7-2-100001S Arch Group (Stainless Steel Model) M7-2-200002...
  • Page 101 ARCH GROUP M7-2-100001 SEE PAGE C124, C127 #20 (For 1000H) -C45-...
  • Page 102 ARCH GROUP M7-2-100001 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-100001 Arch Group M7-2-100001S Arch Group (Stainless Steel Model) M7-2-101300 Rod (For 550W) M7-2-101310 Rod (For 650W) M7-2-101320 Rod (For 850W) M7-2-101330 Rod (For 1050W) M7-2-101340 Rod (For 1250W) M7-2-101350 Rod (For 1650W) M7-2-101390 Rod (For 1850W) M7-2-101400...
  • Page 103 ARCH GROUP M7-2-100001 REF. PART NO. DESCRIPTION Q'TY REMARKS WT163015 Thrust Washer (For 400H/500H) Thrust Washer (For 600H) Thrust Washer (For 800H/1000H) BRCF8 Bearing, CF8 BRNAST6 Bearing, Nast6 (For 850W~1850W) MB0806 Metal Bushing, 0806 KYA050510 Key, 5×5×10 HBS0516N HBS, M5×16 (N) HBS0516S HBS, M5×16 (Stainless Steel Model) HBS0616N...
  • Page 104 -C48-...
  • Page 105 BANDWAY GROUP M7-2-200002 M7-2-200012 -C49-...
  • Page 106 BANDWAY GROUP M7-2-200002 M7-2-200012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-200002 Bandway Group (For 5-6mm) M7-2-200002S Bandway Group (Stainless Steel Model) (For 5-6mm) M7-2-200012 Bandway Group (For 9mm) M7-2-200012S Bandway Group (Stainless Steel Model) (For 9mm) M7-2-201300 Cover (L) M7-2-201300S Cover (L)(Stainless Steel Model) M7-2-201400 Adjusting Plate...
  • Page 107 BANDWAY GROUP M7-2-200002 M7-2-200012 REF. PART NO. DESCRIPTION Q'TY REMARKS NTE03S NTE, M3 (Stainless Steel Model)(For 550W~1050W) NTE, M3 (Stainless Steel Model)(For 1250W/1650W/1850W) SW04 SW, M4 SW04S SW, M4 (Stainless Steel Model) SW06 SW, M6 (For 550W/650W) SW, M6 (For 850W~1850W) 16~25 SW06S SW, M6 (Stainless Steel Model)
  • Page 108 -C52-...
  • Page 109 STRAP TRACK FRAME ASS'Y 2-2-1 M7-2-210002 M7-2-210012 -C53-...
  • Page 110 2-2-1 STRAP TRACK FRAME ASS'Y M7-2-210002 M7-2-210012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-210002 Strap Track Frame Ass'y (For 5-6mm) M7-2-210002S Strap Track Frame Ass'y (Stainless Steel Model)(For 5-6mm) M7-2-210012 Strap Track Frame Ass'y (For 9mm) M7-2-210012S Strap Track Frame Ass'y (Stainless Steel Model)(For 9mm) M7-2-201101 Strap Track (For 5-6mm)
  • Page 111 2-2-1 STRAP TRACK FRAME ASS'Y M7-2-210002 M7-2-210012 REF. PART NO. DESCRIPTION Q'TY REMARKS Shaft (Stainless Steel Model) (For 1250W/1650W/1850W)(Option) T7-2-20172 Spring T7-2-20172S Spring (Stainless Steel Model)(Option) T7-2-20180 Bracket PW05B PW, M5 (B)(For 550W~1050W) PW, M5 (B)(For 1250W/1650W/1850W) T7-2-20171 Spring (For 1250W/1650W/1850W) T7-2-20171S Spring (Stainless Steel Model) (For 1250W/1650W/1850W)(Option)
  • Page 112 -C56-...
  • Page 113 ARCH COVER GROUP M7-2-300001 -C57-...
  • Page 114 ARCH COVER GROUP M7-2-300001 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-300001 Arch Cover Group M7-2-300001S Arch Cover Group (Stainless Steel Model) M7-2-301101 Arch Cover RH (For 400H) M7-2-301101S Arch Cover RH (Stainless Steel Model) (For 400H) M7-2-301111 Arch Cover RH (For 500H) M7-2-301111S Arch Cover RH (Stainless Steel Model) (For 500H)
  • Page 115 ARCH COVER GROUP M7-2-300001 REF. PART NO. DESCRIPTION Q'TY REMARKS MV-6-20220 Proximity Sensor (X19)(SQ6)(Option) SEE PAGE C163 T7-2-20470 Support Rod (For 1250W/1650W/1850W) M7-2-301400 Arch Cover LH (For 400H) M7-2-301400S Arch Cover LH (Stainless Steel Model) (For 400H) M7-2-301410 Arch Cover LH (For 500H) M7-2-301410S Arch Cover LH (Stainless Steel Model) (For 500H)
  • Page 116 ARCH COVER GROUP M7-2-300001 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-304000 Brush (Upper)(For 550W) M7-2-304010 Brush (Upper)(For 650W) M7-2-304020 Brush (Upper)(For 850W) M7-2-304030 Brush (Upper)(For 1050W) M7-2-304040 Brush (Upper)(For 1250W) M7-2-304050 Brush (Upper)(For 1650W) M7-2-304070 Brush (Upper)(For 1850W) M7-2-301600 Arch M7-2-301600S Arch (Stainless Steel Model) M7-2-301700...
  • Page 117 ARCH COVER GROUP M7-2-300001 REF. PART NO. DESCRIPTION Q'TY REMARKS SW05 SW, M5 (For 550W/650W/1250W) SW, M5 (For 850W/1050W/1650W/1850W) SW05S SW, M5 (Stainless Steel Model)(For 850W/1050W/1650W/1850W) SW06 SW, M6 (For 550W/650W) SW, M6 (For 850W/1050W) SW, M6 (For 1250W/1650W) SW, M6 (For 1850W) SW06S SW, M6 (Stainless Steel Model) SW04...
  • Page 118 -C62-...
  • Page 120 2-3-1 BLOCK ASS'Y M7-2-310000 (For 550W~1050W) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-301200 Block BR635ZZ Bearing, 635ZZ HBS0516N HBS, M5×16 (N) PW05 PW, M5 SW05 SW, M5 -C64-...
  • Page 121 CONNECTING ROD GROUP M7-2-400010 (For 850W/1050W)
  • Page 122 CONNECTING ROD GROUP M7-2-400010 (For 850W/1050W) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-401211 Connecting Rod M7-2-401300 Connector M7-2-401400 Slant Block M7-2-401500 Bracket (Left) M7-2-401600 Bracket (Right) M7-2-401700 Collar T7-2-20560 Swivel Head, NHS06 MB1715 Metal Bushing, 1715 HSS0506GN HSS, M5×6 (G)(N) HBS0616N HBS, M6×16 (N) HBS0620N...
  • Page 123 CONNECTING ROD GROUP M7-2-400000 (For 1250W/1650W/1850W)
  • Page 124 CONNECTING ROD GROUP M7-2-400000 (For 1250W/1650W/1850W) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-2-401100 Bracket M7-2-401201 Connecting Rod M7-2-401300 Connector M7-2-401400 Slant Block TC-025 Spring H42-1227 Washer T7-2-20560 Swivel Head, NHS06 MB1512 Metal Bushing, 1512 THS0620N THS, M6×20 (N) HBS0620N HBS, M6×20 (N) HBS0630N HBS, M6×30 (N) HBS0635HN...
  • Page 125 ACCUMULATOR UNIT M7-3-900003 M7-3-900013...
  • Page 126: Accumulator Unit

    ACCUMULATOR UNIT M7-3-900003 M7-3-900013 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-900003 Accumulator Unit (For 5-6mm, 550W) M7-3-900003S Accumulator Unit (Stainless Steel Model) (For 5-6mm, 550W) M7-3-900013 Accumulator Unit (For 9mm, 550W) M7-3-900013S Accumulator Unit (Stainless Steel Model) (For 9mm, 550W) M7-3-900033 Accumulator Unit (For 5-6mm, 650W~1050W) M7-3-900033S...
  • Page 127 ACCUMULATOR UNIT M7-3-900003 M7-3-900013 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-300032 Accumulator Box Group (For 5-6mm, 650W~1050W) M7-3-300032S Accumulator Box Group (Stainless Steel Model)(For 5-6mm, 650W~1050W) M7-3-300042 Accumulator Box Group (For 9mm, 650W~1050W) M7-3-300042S Accumulator Box Group (Stainless Steel Model)(For 9mm, 650W~1050W) M7-3-300053 Accumulator Box Group (For 5-6mm, SEE PAGE C91...
  • Page 128 -C72-...
  • Page 129 STRAP AMOUNT CONTROL GROUP M7-3-100001 M7-3-100011 (SQ4) -C73-...
  • Page 130 STRAP AMOUNT CONTROL GROUP M7-3-100001 M7-3-100011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-100001 Strap Amount Control Group (For 5-6mm, 550W~1050W) M7-3-100011 Strap Amount Control Group (For 9mm, 550W~1050W) M7-3-100031 Strap Amount Control Group (For 5-6mm, 1250W/1650W/1850W) M7-3-100041 Strap Amount Control Group (For 9mm, 1250W/1650W/1850W) T7-3-10150 Shaft...
  • Page 131 AUTO STRAP FEEDING GROUP M7-3-200001 M7-3-200011...
  • Page 132 AUTO STRAP FEEDING GROUP M7-3-200001 M7-3-200011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-200001 Auto Strap Feeding Group (For 5-6mm, 550W~1050W) M7-3-200011 Auto Strap Feeding Group (For 9mm, 550W~1050W) M7-3-200032 Auto Strap Feeding Group (For 5-6mm, 1250W/1650W/1850W) M7-3-200042 Auto Strap Feeding Group (For 9mm, 1250W/1650W/1850W) M7-3-201100 Guide Block (For 5-6mm)
  • Page 133 AUTO STRAP FEEDING GROUP M7-3-200001 M7-3-200011 REF. PART NO. DESCRIPTION Q'TY REMARKS MCO-A-0600680 Spacer (For 5-6mm, 1250W/1650W/1850W) MCO-A-0601200 Spacer (For 9mm, 1250W/1650W/1850W) TMS0408N TMS, M4×8 (N) HBS0516N HBS, M5×16 (N) HBS0508N HBS, M5×8 (N)(For 5-6mm) HBS0512N HBS, M5×12 (N)(For 9mm) HBS0508N HBS, M5×8 (N)(For 550W~1050W) HBS, M5×8 (N)(For 1250W/1650W/1850W)
  • Page 134 -C78-...
  • Page 136 3-2-1 ROLLER ASS'Y M7-3-210001 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-211101 Bracket M7-3-211200 Roller M7-3-211300 Collar BR686ZZ Bearing, 686ZZ H44-10950 Washer HBS0635HN HBS, M6×35 (H)(N) HN06 HN, M6 -C80-...
  • Page 138 3-2-2 MOVABLE STRAP GUIDE ASS'Y M7-3-220000 M7-3-220010 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-220000 Movable Strap Guide Ass'y (For 5-6mm) M7-3-220010 Movable Strap Guide Ass'y (For 9mm) M7-3-221101 Rotary Arm M7-3-221200 Spacer M7-3-221300 Link M7-3-221400 Movable Strap Guide (For 5-6mm) M7-3-221410 Movable Strap Guide (For 9mm) BR605ZZ...
  • Page 140 3-2-3 M4 MOTOR ASS'Y M7-3-230000 M7-3-230010 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-230000 M4 Motor Ass'y (For 5-6mm) M7-3-230010 M4 Motor Ass'y (For 9mm) Accumulator Main Roller (For 5-6mm) M7-3-231101 M7-3-231111 Accumulator Main Roller (For 9mm) M7-3-230100 M4 Motor Set TB-223 Washer T7-3-20110...
  • Page 142 3-2-4 ASSISTANT ROLLER SHAFT ASS'Y T7-3-20080 T7-3-20081 REF. PART NO. DESCRIPTION Q'TY REMARKS T7-3-20080 Assistant Roller Shaft Ass'y (For 5-6mm) T7-3-20081 Assistant Roller Shaft Ass'y (For 9mm) T7-3-20150 Shaft T7-3-20160 Assistant Roller (For 5-6mm) T7-3-20162 Assistant Roller (For 9mm) T7-3-20200 Spacer T7-3-20100 Assistant Roller Ass'y (For 5-6mm)
  • Page 143 ACCUMULATOR BOX GROUP M7-3-300002 (For 550W~1050W) M7-3-300012...
  • Page 144 ACCUMULATOR BOX GROUP M7-3-300002 (For 550W~1050W) M7-3-300012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-300002 Accumulator Box Group (For 5-6mm, 550W) M7-3-300002S Accumulator Box Group (Stainless Steel Model)(For 5-6mm, 550W) Accumulator Box Group (For 9mm, 550W) M7-3-300012 M7-3-300012S Accumulator Box Group (Stainless Steel Model)(For 9mm, 550W) M7-3-300032 Accumulator Box Group (For 5-6mm,...
  • Page 145 ACCUMULATOR BOX GROUP M7-3-300002 (For 550W~1050W) M7-3-300012 REF. PART NO. DESCRIPTION Q'TY REMARKS HBS0625N HBS, M6×25 (N)(For 5-6mm, 550W) HBS, M6×25 (N)(For 5-6mm, 650W~1050W) HBS0630N HBS, M6×30 (N)(For 9mm, 550W) HBS, M6×30 (N)(For 9mm, 650W~1050W) HBS, M6×40 (N) HBS0640N THS0608N THS, M6×8 (N) SW06 SW, M6 (For 550W)
  • Page 146 -C90-...
  • Page 147 ACCUMULATOR BOX GROUP M7-3-300053 (For 1250W/1650W/1850W) M7-3-300063...
  • Page 148 ACCUMULATOR BOX GROUP M7-3-300053 (For 1250W/1650W/1850W) M7-3-300063 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-300053 Accumulator Box Group (For 5-6mm, 1250W/1650W/1850W) M7-3-300053S Accumulator Box Group (Stainless Steel Model)(For 5-6mm, 1250W/1650W/1850W) M7-3-300063 Accumulator Box Group (For 9mm, 1250W/1650W/1850W) M7-3-300063S Accumulator Box Group (Stainless Steel Model)(For 9mm, 1250W/1650W/1850W) M7-3-301161 Enclosed Plate (For 5-6mm)
  • Page 149 AUTO STRAP EJECTING ASS'Y 3-3-1 M7-3-310003 M7-3-310012 -C93-...
  • Page 150 3-3-1 AUTO STRAP EJECTING ASS'Y M7-3-310003 M7-3-310012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-3-310003 Auto Strap Ejecting Ass'y (For 5-6mm) M7-3-310012 Auto Strap Ejecting Ass'y (For 9mm) M7-3-312700 Sensor Bracket M7-3-312800 Inlet Guide (For 5-6mm) M7-3-312810 Inlet Guide (For 9mm) M7-3-312900 Cover M7-3-313000...
  • Page 151 REEL CONTROL GROUP M7-4-100001 M7-4-100011...
  • Page 152 REEL CONTROL GROUP M7-4-100001 M7-4-100011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-4-100001 Reel Control Group (For 200mm) SEE PAGE C97 M7-4-100011 Reel Control Group (For 150mm)(Option) -C96-...
  • Page 153 REEL CONTROL GROUP M7-4-100001 M7-4-100011...
  • Page 154: Reel Control Group

    REEL CONTROL GROUP M7-4-100001 M7-4-100011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-4-100001 Reel Control Group (For 200mm) M7-4-100011 Reel Control Group (For 150mm)(Option) M7-4-101103 Inner Flange (For 200mm) T7-4-10112 Inner Flange (For 150mm)(Option) M7-4-101200 Shaft M7-4-101301 Base (L) M7-4-101401 Base (R) M7-4-101500 Collar LA-30240...
  • Page 155 OUTER FLANGE ASS'Y 4-1-1 M7-4-110001 M7-4-110010 For 200mm For 150mm (Option) -C99-...
  • Page 156 4-1-1 OUTER FLANGE ASS'Y M7-4-110001 M7-4-110010 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-4-110001 Outer Flange Ass'y (For 200mm) M7-4-110010 Outer Flange Ass'y (For 150mm)(Option) M7-4-111102 Outer Flange (For 200mm) T7-4-10122 Outer Flange (For 150mm)(Option) M7-4-111200 Plate (For 150mm)(Option) M7-4-111310 Spring (For 200mm) M7-4-111300 Spring (For 150mm)(Option) LA-30240...
  • Page 157 REEL CRANK ASS'Y 4-1-2 M7-4-120001 M7-4-120011 (For 150mm)(Option) -C101-...
  • Page 158 4-1-2 REEL CRANK ASS'Y M7-4-120001 M7-4-120011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-4-120001 Reel Crank Ass'y (For 200mm) M7-4-120011 Reel Crank Ass'y (For 150mm)(Option) M7-4-121100 Reel Crank M7-4-121200 Support Shaft (For 200mm) M7-4-121301 M7-4-121311 Shaft (For 150mm)(Option) M7-4-121401 Shaft M7-4-121500 Reel Nut Handle M7-4-121600 Bolt...
  • Page 159: Body Frame Unit

    BODY FRAME UNIT M7-5-900003 M7-5-900013 (For 850W/1050W/1650W/1850W) (Option) -C103-...
  • Page 160 BODY FRAME UNIT M7-5-900003 M7-5-900013 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-900003 Body Frame Unit (For 5-6mm, 550W) M7-5-900003S Body Frame Unit (Stainless Steel Model) (For 5-6mm, 550W) M7-5-900013 Body Frame Unit (For 9mm, 550W) M7-5-900013S Body Frame Unit (Stainless Steel Model) (For 9mm, 550W) M7-5-900023 Body Frame Unit (For 5-6mm, 650W)
  • Page 161 BODY FRAME UNIT M7-5-900003 M7-5-900013 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-100003 Body Frame With Foot Bar Group (For 550W) SEE PAGE C107 M7-5-100003S Body Frame With Foot Bar Group (Stainless Steel Model)(For 550W) M7-5-100013 Body Frame With Foot Bar Group (For 650W~1050W) M7-5-100013S Body Frame With Foot Bar Group (Stainless...
  • Page 162 BODY FRAME UNIT M7-5-900003 M7-5-900013 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-200062S Cover Group (Stainless Steel Model)(For 5- 6mm, 1250W) M7-5-200072 Cover Group (For 9mm, 1250W) M7-5-200072S Cover Group (Stainless Steel Model)(For 9mm, 1250W) M7-5-200082 Cover Group (For 5-6mm, 1650W/1850W) M7-5-200082S Cover Group (Stainless Steel Model)(For 5- 6mm, 1650W/1850W)
  • Page 163 BODY FRAME WITH M7-5-100003 FOOT BAR GROUP M7-5-100013 or 50 or 51 (For CSA)(Option) (For CSA)(Option) SEE PAGE C50 #6 (For 1250W/1650W /1850W) 23 or 50 27 or 51 23 or 50 (For CSA)(Option) (For 1250W/1650W /1850W) (For 1250W/1650W /1850W) -C107-...
  • Page 164 BODY FRAME WITH M7-5-100003 FOOT BAR GROUP M7-5-100013 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-100003 Body Frame With Foot Bar Group (For 550W) M7-5-100003S Body Frame With Foot Bar Group (Stainless Steel Model)(For 550W) M7-5-100013 Body Frame With Foot Bar Group (For 650W~1050W) M7-5-100013S Body Frame With Foot Bar Group (Stainless...
  • Page 165 BODY FRAME WITH M7-5-100003 FOOT BAR GROUP M7-5-100013 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-110012S Foot Bar Ass'y (Stainless Steel Model)(For 1250W/1650W/1850W) Foot Bar Ass'y (Stainless Steel Model)(For 1250W/1650W/1850W)(Option) M7-5-110021 Foot Bar Ass'y (For 650W~1050W) Foot Bar Ass'y (For 650W~1050W)(Option) M7-5-110021S Foot Bar Ass'y (Stainless Steel Model)(For 650W~1050W)
  • Page 166 BODY FRAME WITH M7-5-100003 FOOT BAR GROUP M7-5-100013 REF. PART NO. DESCRIPTION Q'TY REMARKS SW05 SW, M5 (For 1250W/1650W/1850W) SW, M5 (For CSA, 550W~1050W)(Option) SW, M5 (For CSA, 1250W/1650W/1850W) (Option) SW06 SW, M6 SW, M6 (Option) SW06S SW, M6 (Stainless Steel Model) SW, M6 (Stainless Steel Model)(Option) SW16 SW, M16...
  • Page 167 BODY FRAME WITH M7-5-100003 FOOT BAR GROUP M7-5-100013 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-104200 Plate (For CSA, 550W)(Option) M7-5-104200S Plate (Stainless Steel Model)(For CSA, 550W) (Option) M7-5-104210 Plate (For CSA, 650W~1050W)(Option) M7-5-104210S Plate (Stainless Steel Model)(For CSA, 650W~1050W)(Option) M7-5-104220 Plate (For CSA, 1250W/1650W/1850W) (Option) M7-5-104220S...
  • Page 168 -C112- -C112-...
  • Page 169 LOW TABLE BODY FRAME M7-5-100180 GROUP (OPTION) M7-5-100190 (For CSA)(Option) or 50 or 51 SEE PAGE C50 #6 (For CSA)(Option) (For 1250W/1650W /1850W) 23 or 50 27 or 51 23 or 50 (For CSA)(Option) -C113-...
  • Page 170 LOW TABLE BODY FRAME M7-5-100180 GROUP (OPTION) M7-5-100190 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-100180 Low Table Body Frame Group (For 550W) (Option) M7-5-100180S Low Table Body Frame Group (Stainless Steel Model)(For 550W)(Option) M7-5-100190 Low Table Body Frame Group (For 650W~1050W)(Option) M7-5-100190S Low Table Body Frame Group (Stainless Steel...
  • Page 171 LOW TABLE BODY FRAME M7-5-100180 GROUP (OPTION) M7-5-100190 REF. PART NO. DESCRIPTION Q'TY REMARKS LA-30251 Label HBS0616N HBS, M6×16 (N) HBS0616S HBS, M6×16 (Stainless Steel Model) HBS0516N HBS, M5×16 (N)(For 1250W/1650W/1850W) HBS0612N HBS, M6×12 (N)(For CSA)(Option) HBS0612S HBS, M6×12 (Stainless Steel Model)(For CSA) (Option) TMS0308N TMS, M3×8 (N)
  • Page 172 LOW TABLE BODY FRAME M7-5-100180 GROUP (OPTION) M7-5-100190 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-104500 Plate (For CSA, 1250W/1650W/1850W) (Option) M7-5-104500S Plate (Stainless Steel Model)(For CSA, 1250W/1650W/1850W)(Option) M7-5-104200 Plate (For CSA, 550W)(Option) M7-5-104200S Plate (Stainless Steel Model)(For CSA, 550W) (Option) M7-5-104210 Plate (For CSA, 650W~1050W)(Option) M7-5-104210S...
  • Page 173 FOOT BAR ASS'Y 5-1-1 M7-5-110002 M7-5-110012 -C117-...
  • Page 174 5-1-1 FOOT BAR ASS'Y M7-5-110002 M7-5-110012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-110002 Foot Bar Ass'y (For 550W) M7-5-110002S Foot Bar Ass'y (Stainless Steel Model)(For 550W) Foot Bar Ass'y (For 1250W/1650W/1850W) M7-5-110012 M7-5-110012S Foot Bar Ass'y (Stainless Steel Model)(For 1250W/1650W/1850W) M7-5-110021 Foot Bar Ass'y (For 650W~1050W) M7-5-110021S...
  • Page 175 5-1-1 FOOT BAR ASS'Y M7-5-110002 M7-5-110012 REF. PART NO. DESCRIPTION Q'TY REMARKS SW06 SW, M6 SW06S SW, M6 (Stainless Steel Model) SW, M5 SW05 SW05S SW, M5 (Stainless Steel Model) PW, M5 PW05 PW05S PW, M5 (Stainless Steel Model) PW06C PW, M6 (C) PW06CS PW, M6 (C)(Stainless Steel Model)
  • Page 176 -C120- -C120-...
  • Page 177 COVER GROUP M7-5-200002 (For 550W~1050W) M7-5-200012 43 or 44 (Option) SEE PAGE C153 #4 33 or 36 47 or 48 47 or 48 For 850W/1050W SEE PAGE (For CSA)(Option) C148 #21 -C121-...
  • Page 178 COVER GROUP M7-5-200002 (For 550W~1050W) M7-5-200012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-200002 Cover Group (For 5-6mm, 550W) M7-5-200002S Cover Group (Stainless Steel Model)(For 5- 6mm, 550W) M7-5-200012 Cover Group (For 9mm, 550W) M7-5-200012S Cover Group (Stainless Steel Model)(For 9mm, 550W) M7-5-200022 Cover Group (For 5-6mm, 650W)
  • Page 179 COVER GROUP M7-5-200002 (For 550W~1050W) M7-5-200012 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-102100 Handle (Option) M7-6-102100S Handle (Stainless Steel Model)(Option) Cover (For 550W/650W) M7-5-201600 M7-5-201600S Cover (Stainless Steel Model)(For 550W/650W) M7-5-201701 Table Support M7-5-201701S Table Support (Stainless Steel Model) M7-5-202500 Bracket (Option) Label (Option) LA-50240...
  • Page 180 COVER GROUP M7-5-200002 (For 550W~1050W) M7-5-200012 REF. PART NO. DESCRIPTION Q'TY REMARKS T5-2-10500 Cable Gland (PG9) T7-5-10210 Switch Actuator Block (For 550W/650W) T7-2-10280 T7-2-10281 Block (For 850W/1050W) T6-6-60130 HBS0508N HBS, M5×8 (N)(For 850W/1050W) HBS0508S HBS, M5×8 (Stainless Steel Model)(For 850W/1050W) HBS0516N HBS, M5×16 (N) HBS0525N...
  • Page 181 COVER GROUP M7-5-200062 (For 1250W/1650W/1850W) M7-5-200072 -C125-...
  • Page 182 COVER GROUP M7-5-200062 (For 1250W/1650W/1850W) M7-5-200072 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-200062 Cover Group (For 5-6mm, 1250W) M7-5-200062S Cover Group (Stainless Steel Model)(For 5- 6mm, 1250W) M7-5-200072 Cover Group (For 9mm, 1250W) M7-5-200072S Cover Group (Stainless Steel Model)(For 9mm, 1250W) M7-5-200082 Cover Group (For 5-6mm, 1650W/1850W)
  • Page 183 COVER GROUP M7-5-200062 (For 1250W/1650W/1850W) M7-5-200072 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-220081S Upper Table Front Ass'y (Stainless Steel Model)(For 9mm, 1650W/1850W) M7-5-230061 Upper Table Rear Ass'y (For 1250W) SEE PAGE C135 M7-5-230061S Upper Table Rear Ass'y (Stainless Steel Model)(For 1250W) M7-5-230071 Upper Table Rear Ass'y (For Photo Eye)(For 1250W)(Option)
  • Page 184 COVER GROUP M7-5-200062 (For 1250W/1650W/1850W) M7-5-200072 REF. PART NO. DESCRIPTION Q'TY REMARKS THS0630N THS, M6×30 (N) THS0630S THS, M6×30 (Stainless Steel Model) FLG05 FLG, M5 HN06 HN, M6 SW05 SW, M5 (For 1250W) SW, M5 (For 1650W/1850W) SW06 SW, M6 PW03 PW, M3 (For CSA)(Option) PW05...
  • Page 185 UPPER TABLE FRONT ASS'Y 5-2-1 M7-5-210001 (For 550W/650W) M7-5-210011 C129...
  • Page 186 5-2-1 UPPER TABLE FRONT ASS'Y M7-5-210001 (For 550W/650W) M7-5-210011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-210001 Upper Table Front Ass'y (For 5-6mm, 550W) M7-5-210001S Upper Table Front Ass'y (Stainless Steel Model)(For 5-6mm, 550W) Upper Table Front Ass'y (For 9mm, 550W) M7-5-210011 M7-5-210011S Upper Table Front Ass'y (Stainless Steel...
  • Page 187 UPPER TABLE FRONT ASS'Y 5-2-2 M7-5-220001 (For 850W~1850W) M7-5-220011 C131...
  • Page 188 5-2-2 UPPER TABLE FRONT ASS'Y M7-5-220001 (For 850W~1850W) M7-5-220011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-220001 Upper Table Front Ass'y (For 5-6mm, 850W~1050W) M7-5-220001S Upper Table Front Ass'y (Stainless Steel Model)(For 5-6mm, 850W/1050W) M7-5-220011 Upper Table Front Ass'y (For 9mm, 850W/1050W) M7-5-220011S Upper Table Front Ass'y (Stainless Steel...
  • Page 189 5-2-2 UPPER TABLE FRONT ASS'Y M7-5-220001 (For 850W~1850W) M7-5-220011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-211400 Bracket T6-5-11120 Table Roller (250mm)(For 850W/1050W) Table Roller (250mm)(For 1250W/1650W/1850W) T6-5-11121 Table Roller (250mm)(Stainless Steel Model)(For 850W/1050W) Table Roller (250mm)(Stainless Steel Model)(For 1250W/1650W/1850W) T6-5-11130 Table Roller Shaft (For 850W/1050W) Table Roller Shaft (For 1250W/1650W/1850W) T6-5-11131...
  • Page 190 -C134- -C134-...
  • Page 191 UPPER TABLE REAR ASS'Y 5-2-3 M7-5-230001 (For 850W~1850W) M7-5-230011 -C135-...
  • Page 192 5-2-3 UPPER TABLE REAR ASS'Y M7-5-230001 (For 850W~1850W) M7-5-230011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-230001 Upper Table Rear Ass'y (For 850W/1050W) M7-5-230001S Upper Table Rear Ass'y (Stainless Steel Model)(For 850W/1050W) M7-5-230011 Upper Table Rear Ass'y (For Photo Eye)(For 850W/1050W)(Option) M7-5-230011S Upper Table Rear Ass'y (For Photo Eye)(Stainless Steel Model)(For...
  • Page 193 5-2-3 UPPER TABLE REAR ASS'Y M7-5-230001 (For 850W~1850W) M7-5-230011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-231191S Upper Table Rear (For Photo Eye)(Stainless Steel Model)(For 1650W/1850W)(Option) M7-6-102100 Handle (Option) M7-6-102100S Handle (Stainless Steel Model)(Option) T6-5-11120 Table Roller (250mm)(For 850W/1050W) Table Roller (250mm)(For 1250W/1650W/1850W) T6-5-11121 Table Roller (250mm)(Stainless Steel...
  • Page 194 -C138- -C138-...
  • Page 195 EXTENSION TABLE GROUP M7-5-300001 (For 850W/1050W/1650W/1850W) M7-5-300011 42 or 43 42 or 43 36 or 37 23 or 24 36 or 37 23 or 24 42 or 43 23 or 24 23 or 24 42 or 43 -C139-...
  • Page 196 EXTENSION TABLE GROUP M7-5-300001 (For 850W/1050W/1650W/1850W) M7-5-300011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-300001 Extension Table Group (For 5-6mm, 850W) M7-5-300001S Extension Table Group (Stainless Steel Model)(For 5-6mm, 850W) M7-5-300011 Extension Table Group (For 9mm, 850W) M7-5-300011S Extension Table Group (Stainless Steel Model)(For 9mm, 850W) M7-5-300021 Extension Table Group (For 5-6mm,...
  • Page 197 EXTENSION TABLE GROUP M7-5-300001 (For 850W/1050W/1650W/1850W) M7-5-300011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-301411 Upper Table Front (For 9mm, 850W) M7-5-301411S Upper Table Front (Stainless Steel Model) (For 9mm, 850W) M7-5-301501 Upper Table Rear (Only 850W) M7-5-301501S Upper Table Rear (Only 850W)(Stainless Steel Model) M7-5-310001 Upper Table Front Ass'y (For 5-6mm,...
  • Page 198 EXTENSION TABLE GROUP M7-5-300001 (For 850W/1050W/1650W/1850W) M7-5-300011 REF. PART NO. DESCRIPTION Q'TY REMARKS TMS0512S TMS, M5×12 TMS0520S TMS, M5×20 FMS0512S FMS, M5×12 HN05 HN, M5 HN06 HN, M6 (For 850W) HN, M6 (For 1050W/1650W/1850W) SW06 SW, M6 (For 850W) SW, M6 (For 1050W/1650W) SW, M6 (For 1850W) SW06S SW, M6 (Stainless Steel Model)(For...
  • Page 199 UPPER TABLE FRONT ASS'Y 5-3-1 M7-5-310001 (For 1050W/1650W/1850W) M7-5-310011 C143...
  • Page 200 5-3-1 UPPER TABLE FRONT ASS'Y M7-5-310001 (For 1050W/1650W/1850W) M7-5-310011 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-310001 Upper Table Front Ass'y (For 5-6mm, 1050W/1650W) M7-5-310001S Upper Table Front Ass'y (Stainless Steel Model)(For 5-6mm, 1050W/1650W) M7-5-310011 Upper Table Front Ass'y (For 9mm, 1050W/1650W) M7-5-310011S Upper Table Front Ass'y (Stainless Steel...
  • Page 201 5-3-1 UPPER TABLE FRONT ASS'Y M7-5-310001 (For 1050W/1650W/1850W) M7-5-310011 REF. PART NO. DESCRIPTION Q'TY REMARKS ER07 Snap Ring, E-7 (For 1050W/1650W) Snap Ring, E-7 (For 1850W) ER07S Snap Ring, E-7 (Stainless Steel Model)(For 1050W/1650W) Snap Ring, E-7 (Stainless Steel Model)(For 1850W) -C145-...
  • Page 202 -C146- -C146-...
  • Page 203 UPPER TABLE REAR ASS'Y M7-5-320001 5-3-2 (For 1050W/1650W/1850W) M7-5-320020 C147...
  • Page 204 5-3-2 UPPER TABLE REAR ASS'Y M7-5-320001 (For 1050W/1650W/1850W) M7-5-320020 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-5-320001 Upper Table Rear Ass'y (For1050W/1650W) M7-5-320001S Upper Table Rear Ass'y (Stainless Steel Model)(For 1050W/1650W) M7-5-320020 Upper Table Rear Ass'y (For1850W) M7-5-320020S Upper Table Rear Ass'y (Stainless Steel Model)(For1850W) M7-5-321101 Upper Table Rear (For1050W/1650W)
  • Page 205 PEDAL CONTROL SET T7-6-40001 (OPTION) SEE PAGE C164 #2 -C149-...
  • Page 206 PEDAL CONTROL SET T7-6-40001 (OPTION) REF. PART NO. DESCRIPTION Q'TY REMARKS T6-6-10350 Connector (Foot Switch) T7-5-20130 Micro Switch TMS0308N TMS, M3×8 (N) TMS0308S TMS, M3×8 (Stainless Steel Model) -C150-...
  • Page 207: Electric Control Unit

    ELECTRIC CONTROL UNIT M7-6-900005 M7-6-900015 (Option) -C151-...
  • Page 208 ELECTRIC CONTROL UNIT M7-6-900005 M7-6-900015 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-900005 Electric Control Unit (For 220V~ 240V, 550W) M7-6-900005S Electric Control Unit (Stainless Steel Model)(For 220V~ 240V, 550W) M7-6-900015 Electric Control Unit (For 110V, 550W) M7-6-900015S Electric Control Unit (Stainless Steel Model)(For 110V, 550W) M7-6-900045 Electric Control Unit (For 220V~ 240V,...
  • Page 209 ELECTRIC CONTROL UNIT M7-6-900005 M7-6-900015 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-100221S Control Panel Group (America)(Stainless Steel Model)(For 1250W/1650W/1850W) M7-6-200003 Electric Control Group (Without Wire)(For SEE PAGE C159 220V~240V) M7-6-200003S Electric Control Group (Without Wire)(Stainless Steel Model)(For 220V~240V) M7-6-200013 Electric Control Group (Without Wire)(For 110V) M7-6-200013S Electric Control Group (Without...
  • Page 210 -C154- -C154-...
  • Page 211 CONTROL PANEL GROUP M7-6-100031 M7-6-100041 -C155-...
  • Page 212 CONTROL PANEL GROUP M7-6-100031 M7-6-100041 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-100031 Control Panel Group (Europe)(For 550W) M7-6-100031S Control Panel Group (Europe)(Stainless Steel Model)(For 550W) M7-6-100041 Control Panel Group (Europe) (For 650W~1050W) M7-6-100041S Control Panel Group (Europe)(Stainless Steel Model)(For 650W~1050W) M7-6-100081 Control Panel Group (Europe)(For 1250W/1650W/1850W)
  • Page 213 CONTROL PANEL GROUP M7-6-100031 M7-6-100041 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-100100S Control Panel Ass'y (Stainless Steel Model)(For 650W~1050W) M7-6-100190 Control Panel Ass'y (For 1250W/1650W/1850W) M7-6-100190S Control Panel Ass'y (Stainless Steel Model)(For 1250W/1650W/1850W) M7-6-102001 Magnet Catch T5-4-10222 Knob (Hole 6.0) T5-4-10232 Variable Resistor (5K)( 6.0) T6-6-40016...
  • Page 214 CONTROL PANEL GROUP M7-6-100031 M7-6-100041 REF. PART NO. DESCRIPTION Q'TY REMARKS EW720105BX11 Wire Ass'y X11/X13/X8 (Control Panel)(For 550W) EW720106CX11 Wire Ass'y X11/X13/X8 (Control Panel)(For 650W~1050W) EW720112FX11 Wire Ass'y X11/X13/X8 (Control Panel)(For 1250W/1650W/1850W) -C158-...
  • Page 215 ELECTRIC CONTROL GROUP M7-6-200003 M7-6-200013 51 or 52 53 or 54 51 or 52 51 or 52 53 or 54 53 or 54 53 or 54 53 or 54 -C159-...
  • Page 216 ELECTRIC CONTROL GROUP M7-6-200003 M7-6-200013 REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-200003 Electric Control Group (For 220V~ 240V) M7-6-200003S Electric Control Group (Without Wire)(Stainless Steel Model)(For 220V~240V) M7-6-200013 Electric Control Group (For 110V) M7-6-200013S Electric Control Group (Without Wire)(Stainless Steel Model)(For 110V) M7-6-201103 Electric Box M7-6-201201...
  • Page 217 ELECTRIC CONTROL GROUP M7-6-200003 M7-6-200013 REF. PART NO. DESCRIPTION Q'TY REMARKS TMS0412N TMS, M4×12 (N) TMS0420N TMS, M4×20 (N) TMS0420S TMS, M4×20 (Stainless Steel Model) TMS0406N TMS, M4×6 (N) HBS0540N HBS, M5×40 (N) HBS0540S HBS, M5×40 (Stainless Steel Model) HBS0510N HBS, M5×10 (N) HBS0516N HBS, M5×16 (N)
  • Page 218 -C162- -C162-...
  • Page 219 WIRES GROUP M7-6-300004 M7-6-300014 (1 OF 2) (X12) (X22) SEE PAGE C155 #51 (X14) (LCD) (Tension VR) SEE PAGE C155 #50 (X15) (Encoder) (X13) (SQ1) (X3) (X8) (X16) (SQ2) (X4) (X11) (X17) (X27) SEE PAGE C4 #29 (SQ3) (X18) SEE PAGE C166 #8 (SQ4) (X19) (SQ5)
  • Page 220 WIRES GROUP M7-6-300004 M7-6-300014 (1 OF 2) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-300004 Wires Group (For 550W) M7-6-300014 Wires Group (For 650W~1050W) M7-6-300024 Wires Group (For 1250W/1650W/1850W) EW720005BX22 Wire Ass'y X22 (Foot Switch)(For 550W) (Option) EW720006CX22 Wire Ass'y X22 (Foot Switch)(For 650W~1050W)(Option) EW720012FX22 Wire Ass'y X22 (Foot Switch)(For...
  • Page 221 WIRES GROUP M7-6-300004 M7-6-300014 (2 OF 2) (X4) (X32) (X1) (X2) SEE PAGE C164 #10 (X2) (X1) (X27) (X3) -C165-...
  • Page 222 WIRES GROUP M7-6-300004 M7-6-300014 (2 OF 2) REF. PART NO. DESCRIPTION Q'TY REMARKS EW720005BM04 Wire Ass'y X4 (Power for M4/M5 PCB) EW720005BM01 Wire Ass'y X1 (Power for M4/M5)(For 550W) EW720006CM01 Wire Ass'y X1 (Power for M4/M5)(For 650W~1050W) EW720012FM01 Wire Ass'y X1 (Power for M4/M5)(For 1250W/1650W/1850W) EW720005BH02 Wire Ass'y X2 (Power for H.T PCB)
  • Page 223 PHOTO EYE TIMER BOX GROUP M7-6-400000 (OPTION) C167...
  • Page 224 PHOTO EYE TIMER BOX GROUP M7-6-400000 (OPTION) REF. PART NO. DESCRIPTION Q'TY REMARKS M7-6-401100 M7-6-401200 P.C. Board EW720005B006 Wire Ass'y M7-6-400100 Photo Eye Timer Box Ass'y M7-6-301200 Photo Eye (PH1) SEE PAGE C3 T5-4-10222 Knob (Hole 6.0) T5-4-10232 Variable Resistor (5K)( 6.0) T6-6-10570 3P.

Table of Contents

Save PDF
