Transpak MINI-VERTI TP-202MV Operation, Safety & Spare Parts Manual

Semi-auto pallet, with battery
Hide thumbs
Table of Contents

Advertisement

Quick Links

TP-202MV
TP-202MVB
(with battery)
SEMI-AUTO
PALLET
TP-202MV
Original Instruction
MINI VERTI
07/2017

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI-VERTI TP-202MV and is the answer not in the manual?

Questions and answers

Related Manuals for Transpak MINI-VERTI TP-202MV

Summary of Contents for Transpak MINI-VERTI TP-202MV

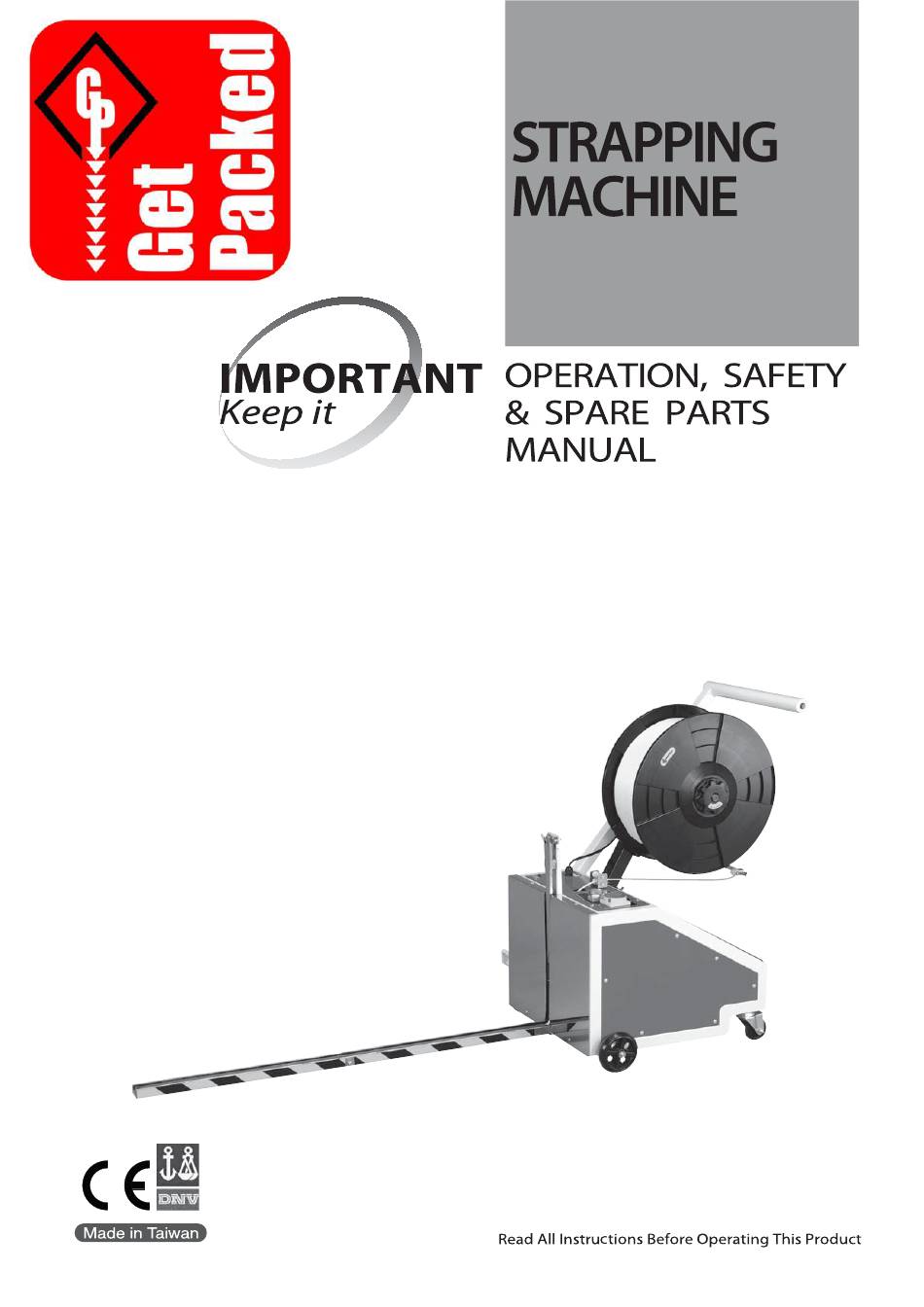

  • Page 1 SEMI-AUTO PALLET MINI VERTI TP-202MV TP-202MV TP-202MVB (with battery) Original Instruction 07/2017...

  • Page 2: Table Of Contents

    PART I CONTENTS 1. Safety Instructions ................1 2. Construction and Units ............... 3 3. General Safety Remarks ..............5 4. Machine Information ................7 5. Operating the Machine ............... 20 6. Adjustment ..................22 7. Maintenance ..................23 8. Troubleshooting Guide ..............…28 9.

  • Page 3: Safety Instructions

    1. Safety Instructions THIS MANUAL GIVES YOU INFORMATION ON SAFETY INSTRUCTIONS, SPECIFICATIONS, OPERATION AND MAINTENANCE OF STRAPPING MACHINES. BEFORE OPERATING OR SERVICING THE MACHINE, PLEASE REVIEW THE ENTIRE MANUAL AND FOLLOW THE SAFETY INSTRUCTIONS CAREFULLY. (1) Before Operating a. Verify that the power line voltage is correct. b.
  • Page 4 (6) Storage a. The store room must be dry. b. Do not expose the machine to extreme cold or heat environment. c. Place the machine on an even floor in order to avoid any distortion. (7) Other Reminders a. Do not alter or bypass protective interlocks. b.

  • Page 5: Construction And Units

    2. Construction and Units a. TP-202MV 3 Reel unit Holds the strap coil. (If the reel core size is 280mm, you can take off the center drum to have core size 200mm.) 4 Body frame group 2 Bandway unit (Sword unit & RH Bandway ass'y) 5 Electric control unit 1 Strapping head unit This unit is the most important part of the...
  • Page 6 b. TP-202MVB 3 Reel unit Holds the strap coil. (If the reel core size is 280mm, you can take off the center drum to have core size 200mm.) 6 Battery unit 4 Body frame group 2 Bandway unit (Sword unit & RH Bandway ass'y) 5 Electric control unit 1 Strapping head unit This unit is the most important part of the...

  • Page 7: General Safety Remarks

    3. General Safety Remarks (1) Basic Operation The manual and the safety remarks are to be read before use. The operation manual should be kept with the machine at all times for regular maintenance and inspections. This machine was built with state of the art technology and rigid adherence to safety standards.
  • Page 8 In case of any malfunction the machine must be stopped and locked until the defect has been eliminated. Generally make sure that nobody is at risk before starting up the machine. All personnel that will be operating this machine should be thoroughly trained in all phases of operation and safety.

  • Page 9: Machine Information

    (5) Grounding Instructions Shall Include the Following: This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock. This product is equipped with a cord that has a grounding wire and an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 10 (2) The Safety Devices This machine must only be operated with polypropylene strapping. The use of other synthetic straps may produce hazardous substances to health. Caution! Power Switch (QS1). This switch is lockable for safety. Danger of burns near the heating unit! (1) Dangerous points in the machine are covered by the screwed table top.
  • Page 11 (4) Technical Data a. TP-202MV Sealing method Heat Strap width : 9 mm to 15.5 mm (3/8" to 5/8") Strap reel diameter : 200 mm (8") Strap reel diameter(OPTION) : 280 mm (11") Width : 696 mm (27.4") Depth : 2035 mm (80.1") Electrical Requirement : AC 110V/220V/230V/240V...
  • Page 12 b. TP-202MVB Sealing method Heat Strap width : 9 mm to 15.5 mm (3/8" to 5/8") Strap reel diameter : 200 mm (8") Strap reel diameter(OPTION) : 280 mm (11") Width : 696 mm (27.4") Depth : 2459 mm (96.8") Electrical Requirement : AC 110V/220V/230V/240V (50/60Hz), 1PH Weight :...
  • Page 13 (5) How to Remove/Handle the Machine from the Pallet Two people stand on each side of the machine and remove the machine from the pallet to the floor. - 11 -...
  • Page 14 (6) Machine and Operating Elements a.TP-202MV (1) Power Switch Supply the power when switch is ON. Strap is automatically fed according with the time preset by (2) Feeding Length Knob the knob. (3) Reset Button To pull strap back into machine and/or to cut off strap. To feed strap out of machine manually.
  • Page 15 b. TP-202MVB (1) Power Switch Supply the power when switch is ON. Strap is automatically fed according with the time preset (2) Feeding Length Knob by the knob. (3) Reset Button To pull strap back into machine and/or to cut off strap. (4) Strap Feed Button To feed strap out of machine manually.
  • Page 16 c. UPS Operation Panel for TP-202MVB (a) Power Switch：It's to activate UPS. (b) LCD：It shows the potential of the battery. (c) LED：It shows the operation status of UPS. Green light means the power supply of either charging or strapping isn't from the battery but from the power company.
  • Page 17 (7) installation a. TP-201MV (a) Installation of Pushing Bar ○ Please connect the wiring plug of the pushing bar to the terminal of machine. Please refer to the illustration. ○ Put the pushing bar to the 4 M6 screw holes and then hand tighten the 4 sets of bolts (HBS0616N, SW06 &...
  • Page 18 ○ Also tighten the pushing bar support to the frame with 2 sets of M8 bolts and washers. ○ Tighten the 4 sets of M6 bolts and washers that you just hand tighten on the step 2. ○ After fixing the pushing bar, fasten the power cord with cable clamps and screws TMS0408N on the pushing bar.
  • Page 19 (b) Sword Assembling Lock Bandway Ass'y (LH) ○ and Bandway Ass'y (RH) ○ in place by FMS0610 ○ (c) Install the sword to the machine body Fit the sword into the Block ○ at the bottom of the machine until the sword is locked in place.
  • Page 20 b. TP-201MVB (a) Installation of Pushing Bar pushing bar ○ Please connect the wiring plug of the pushing bar to the terminal of machine. Please refer to the illustration. ○ Put the pushing bar to the 4 M6 Screw holes and then hand tighten the 4 sets of bolts and washers.
  • Page 21 pushing bar ○ After fixing the pushing bar, fasten the power cord with cable clamps and screws TMS0408N on the pushing bar. (b) Sword Assembling Lock Bandway Ass'y (LH) ○ and Bandway Ass'y (RH) ○ in place by FMS0610 ○ (c) Install the sword to the machine body Fit the sword into the Block ○...

  • Page 22: Operating The Machine

    5. Operating the Machine (1) How to Load P.P Strap Please make sure the power is off before you load the strap in the reel. Step 1 Please pay attention to the direction mark on the Outer Flange ○ . Put a coil of strap into the Inner Flange ○...
  • Page 23 (2) How to Operate a. TP-202MV 1. Turn main switch QS1 to ON. The heating element will reach the working temperature at approximately 2 minute. 2. Push the machine to let the sword unit pass through to the pallet. Have the front plate of the machine close to the package.

  • Page 24: Adjustment

    6. Adjustment (1) Strap Width Adjustment for strap in different width can be done with screw driver and wrench. The adjustment must be made in Three places, Fig.A. Fig.B. Fig.C. as shown below. For A, the width of band guide should be at 12.5mm when using 9mm and 12mm, strap and the width of band guide should be at 15.5mm when using 15mm strap.

  • Page 25: Maintenance

    (2) Outside Tension Adjustment The adjustment is made by tensioning adjustment tube A which is located at the left side of the machine. Tensioning adjustment tube A is turned clockwise to increase the strength and counterclockwise to decrease the strength. 7.
  • Page 26 g. How to replace the battery: (i) Fix 4 terminal brackets (on the wires for the battery) to the positive and negative pole of the battery accordingly. (refer to the illustration) (ii) Connect the UPS and the battery with the connection wire. The shorter wire is to connect the positive and negative pole of the battery.
  • Page 27 (2) Disconnect the Sword Unit from machine if it would not be used for a long time. Press the release button ○ located on the right side of the sword to disassemble the sword from the machine. Place the sword to the prearranged place. (3) How to Charge the Battery 1.
  • Page 28 (4) Maintenance of the Machine Before any maintenance or repairs on the machine, set the Main Power Switch to "O" (OFF). Wait about 5 minutes for cooling down the heater to avoid burns with this area. 1. Cleaning and Lubrication The high reliability and long service life of the strapping machine will depend on regular cleaning and maintenance.
  • Page 29 Monthly :( or 3,000 strapping cycles) Clean both sides of heater plate and polish with fine sandpaper if necessary. ATTENTION: Make sure the welding plate is cool first!! Check cam rollers of seal head for easy movement. Slide table back to home position automatically by the spring tension.

  • Page 30: Troubleshooting Guide

    8. Troubleshooting Guide (1) Strap Jams in the Groove Step 1. Turn the power switch off and pull out the strap strongly in tensioning direction. Step 2. In case this remedy does not work due to a serious jam, follow the instructions listed below.
  • Page 31 (2) The Strap Does Not Feed Past the Infeed Guide This failure is caused when the front bar is in the raised position (previous cycle has not been completed). Turn the power switch "off ", then "on" again. If this does not eliminate the failure, adjust the lever for LS1 to allow LS1 to be activated and de- activated correctly.

  • Page 32: Wiring Diagram

    9. Wiring Diagram - 30 -...
