  • Page 1 !" %! # # & '" $" # ( " ! ) Copyright 2003-2008 © Transpak Equipment Corp. All rights reserved. last updated; August 19, 2008...

  • Page 2: Table Of Contents

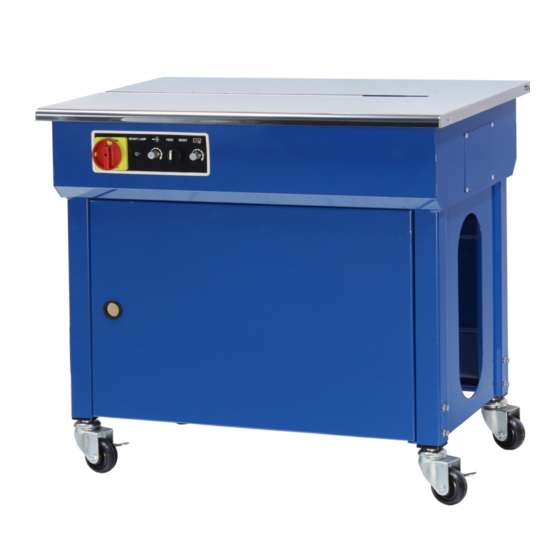

    Genesis TP-501/TP-502 Q&A CONTENTS Machine is out of service: ......................2 Machine could not stop at the home position: ................3 III. Machine keeps feeding strap:......................4 Sealing with a result of bad quality:....................4 When you turn on the machine, machine fails to make sealing right after Ready Lamp (T5-4-10260) has lit up.

  • Page 3: Machine Is Out Of Service

    Genesis TP-501/TP-502 Q&A Machine is out of service: 1. Check if Power Cord (TG-019/T5-4-10322/T5-4-10323) is loosening, broken or defective. 2. When heater reach welding temperature Ready Lamp (T5-4-10260) on the control panel will be on. Machine is ready to work only when ready Lamp is on 3.

  • Page 4: Machine Could Not Stop At The Home Position

    Genesis TP-501/TP-502 Q&A M1: Stop; M2: R e ve r s i n g M2: Start Home Position Cooling Time You could find this information from our technical training 8. Replace Heater (T5-1-12320) when Heater Lamp (T5-4-10260) does not light up after Heater (T5-1-12320) is being warmed up.

  • Page 5: Machine Keeps Feeding Strap

    Genesis TP-501/TP-502 Q&A M1: Stop; M2: R e ve r s i n g M2: Start Home Position Cooling Time You could find this information from our technical training 2. Please check if the SQ2 Micro Switch (TF-006) is broken or its connecting wires are loosening.

  • Page 6: (T5-4-10260) Has Lit Up. Sealing Will Be Back To Normal Again After You Wait For Awhile

    Genesis TP-501/TP-502 Q&A 4. BR635ZZ bearing for Press Bar (TA-069) is broken which leads the press bar incapable of making the straps sealed together after tensioning. 5. Return Spring (TB-114) for Heater Arm (TB-102) is either broken, coming off or worn which makes Heater Tongue (T5-1-12110) unable to enter the correct melting position.

  • Page 7: Machine Fails To Cut Off Pp Straps

    Genesis TP-501/TP-502 Q&A VI. Machine fails to cut off PP straps: 1. Move Cutter Holder (TA-239) to the right with a slight contact with Press Bar (TA-069). 2. Replace Press Bar (TA-069) when found worn out. 3. Replace Front Bar (TA-079) when found worn out.

  • Page 8: Machine Starts To Seal Before A Complete Tensioning

    Genesis TP-501/TP-502 Q&A VIII. Machine starts to seal before a complete tensioning: 1. SQ4 (TF-006/T7-1-10750) detect Strap Guide (C) (T5-1-24151) too early. Enlarge their distance (A) by moving SQ4 to the right slightly or bend Strap Guide (C) to the left a little as illustrated in the following drawing.

  • Page 9: Tension With A Result Of Bad Quality

    Genesis TP-501/TP-502 Q&A Tension with a result of bad quality: 1. Turn Tension Adjustment Nut (TB-133) clockwise for an increase in the tension pressure as illustrated in the following drawing. 2. The Bearing (BR635ZZ) for Rear Bar (TA-074) is broken or the tip of Rear Bar (TA-074) is worn which makes Rear Bar unable to hold the straps after tensioning.
