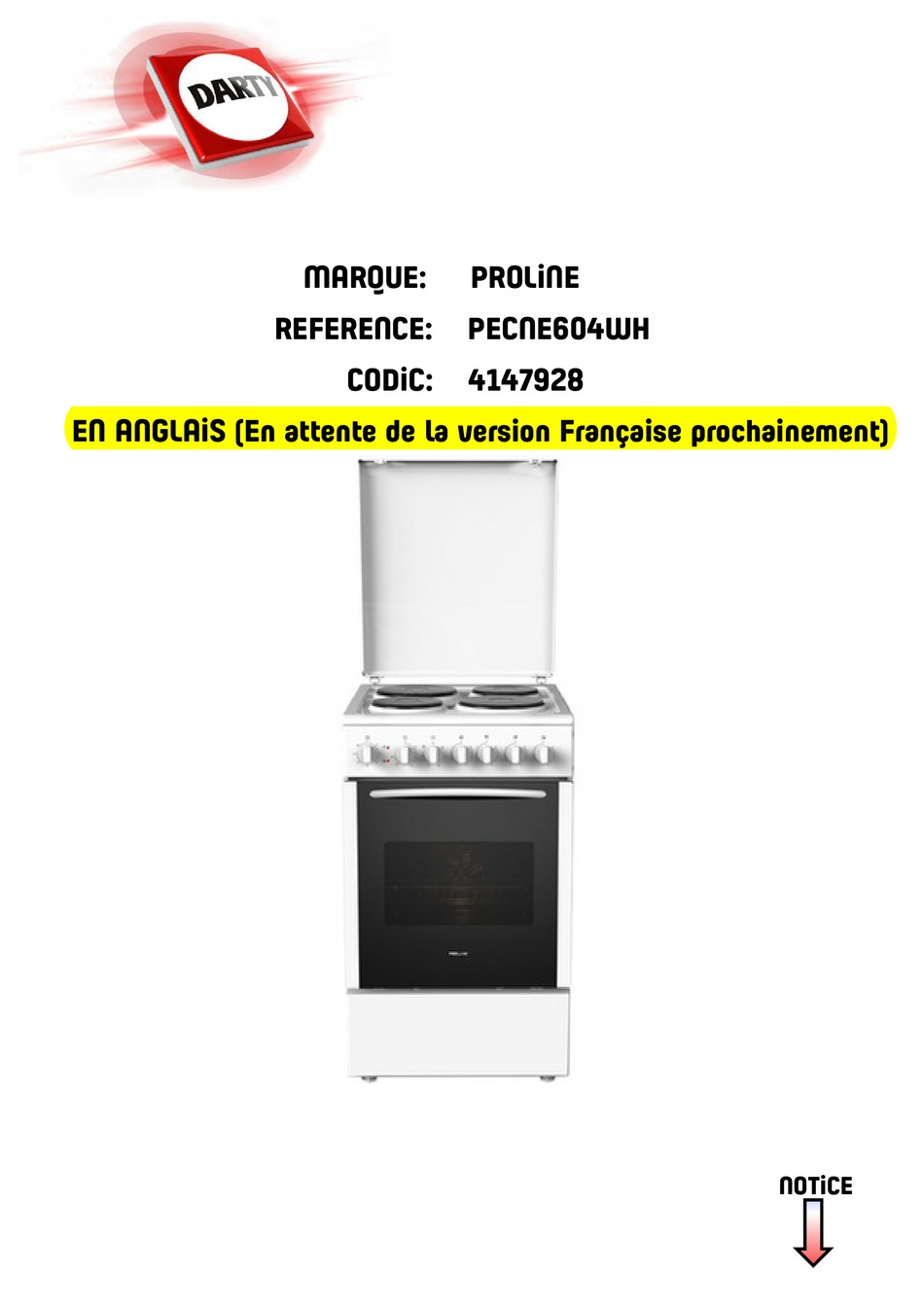

- Page 1 PROLINE MARQUE: PECNE604WH REFERENCE: 4147928 CODIC: EN ANGLAIS (En attente de la version Française prochainement) NOTICE...
- Page 2 Thank you for choosing us! Please read all instructions before using this appliance. This book contains valuable information about operation, care and service. Keep it in a safe place for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance so that the new...
- Page 3 since you should find all the instruction you require to ensure safe installation, use and maintenance. Always keep this owner s manual close to hand since you may need to refer to it in the future. 3 After removing the packaging check that the appliance is not damaged If you have any doubt do not use the appliance contact your nearest Service Centre of the store where you...
- Page 4 involved when using the appliance 6. The electrical safety of this appliance can only be guaranteed if the cooker is correctly and efficiently earthed, in compliance with current regulations on electrical safety. Always ensure that the earthing is efficient if you have any doubts call in a qualified electrician to check the system.
- Page 5 9 Ensure that the appliance is switched off before maintenance by switchi n g off the main switches and turning all knobs to “ ” position 10 The openings and slots used for ventilation and dispersion of heat on the rear and below the control panel must never be covered.
- Page 6 Mains Cable is damaged, consult a qualified electrician. do not allow the cooker to be used unsupervised by children or persons unfamiliar with it. 14 Always switch off the electrical supply to the cooker and allow it to cool down before carrying out any cleaning operations etc.
- Page 7 20 When using small electrical appliances near the hob, keep the supply cord away from the hot parts. 21 Make sure the knobs are in its OFF “ ” position when the appliance is not in use Also make all potentially dangerous parts of the appliance, safe, above all for children who could play with the appliance.
-
Page 8: Installation
Installation The following instructions should be read by a qualified technician to ensure that the appliance is installed regulated and technically serviced correctly in compliance with current regulations. Important: remember to disconnect the appliance from electricity by turning off the mains switch before regulating the appliance or carrying out any maintenance work. -
Page 9: Fitting The Safety Chain And Hook
Levelling Your Appliance Take out the 4 cooker feet from oven cavity, which w a s packed together with baking rack, and then screw them into the plinth in lower part of cooker These feet level off the oven when necessary. The height of the cooker can be adjusted by means of adjustable feet in the plinth Adjust the feet by tilting the cooker from the side Then install the product into position. - Page 10 After fix ing anti-ti t bracket, push the electric cooker inside cabinet as shown in Figure 4. For correct installation, the rear and right foot of cooker would be clipped by the anti-tilt bracket. Electrical connection WARNING THIS APPLIANCE MUST BE EARTHED. Power supply voltage and frequency: 220-240V A C .
-
Page 11: Safety Information
Safety Information When used properly your appliance is completely safe but as with any electrical product there are certain precautions that must be observed. PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE. Always Turn controls when you have finished cooking and when not in use. Stand back when opening an oven door to allow any build up of steam or heat to disperse Use dry good quality oven gloves when removing items from the oven grill Place pans centrally over the hotplate making sure handles are kept away from the edge of... -
Page 12: Product Description
DO NOT LEAVE UNATTENDED WHILE COOKING. Never use the appliance as a room heater Never use the grill to warm plates Never dry any items on either the hob or oven doors Never install the appliance next to curtains or other soft furnishings. Never use steam cleaners SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE In the event of a chip pan fire or any other pan fire. - Page 13 Operation Instructions Oven temperature Oven Function setting knob Timer control knobs knob Hob control knobs The cooker could be with different functions as below please refer to the functions for the cooker you buy Symbol Function description Oven Lamp: Enables the user to observe the progress of cooking without opening the door.
- Page 14 Hobs control: Note: Always ensure that all controls are in the OFF position, when the appliance is not in use. Note: Under no circumstances should the hob be used with aluminum foil in contact with the hob surface. The knobs for the hobs can be rotated in either direction to provide variable heat control Turn the hobs control knobs anticlockwise from OFF position to increase power, there are 6 positions for different power rating.
- Page 15 Safety requirements for deep fat frying 1. Use a deep pan, large enough to completely cover the appropriate heating area. 2. Never fill the pan more than one-third full of oil. 3. Never leave oil or fat unattended during the heating or cooking period. 4.
-
Page 16: Oven Control
We recommend not to use a utensil with a base diameter greater than Pressure cookers or other large pans should be used on the front cooking areas. Always ensure that saucepan handles are positioned safely. Choosing Your Utensils Do not use utensils with rough bases. - Page 17 Removing the door for easier cleaning We recommend you have someone to assist you during removal of the door 1 Open the door completely 2 The door hinge has a small latch Lift the latch on both hinges 3 Lift the door slightly as if closing and then with both hands supporting the door, pull it away from the oven.
-
Page 18: Troubleshooting
Troubleshooting Customer service Before contacting the authorized service center in case of problems while using your cooker check the problem guide below there may be nothing wrong with your cooker Problem This is normal and should cease after a Slight odour or small amount of smoke when short period. -
Page 19: Technical Characteristics
Technical Characteristics 50*60 cm Cooker 60*60 cm Cooker Top element 950W 950W Bottom element 1100W 1100W Grill element* 1600 2000W Convection element* 2000W 2000W Convection fan motor* Rotisserie motor* Lamp* Solid hotplate 145mm RR LF 1000W*2 1000W*2 Solid hotplate 180mm(RF, LR) 1500W*2 1500W*2 1500W, only Right and Rear...
