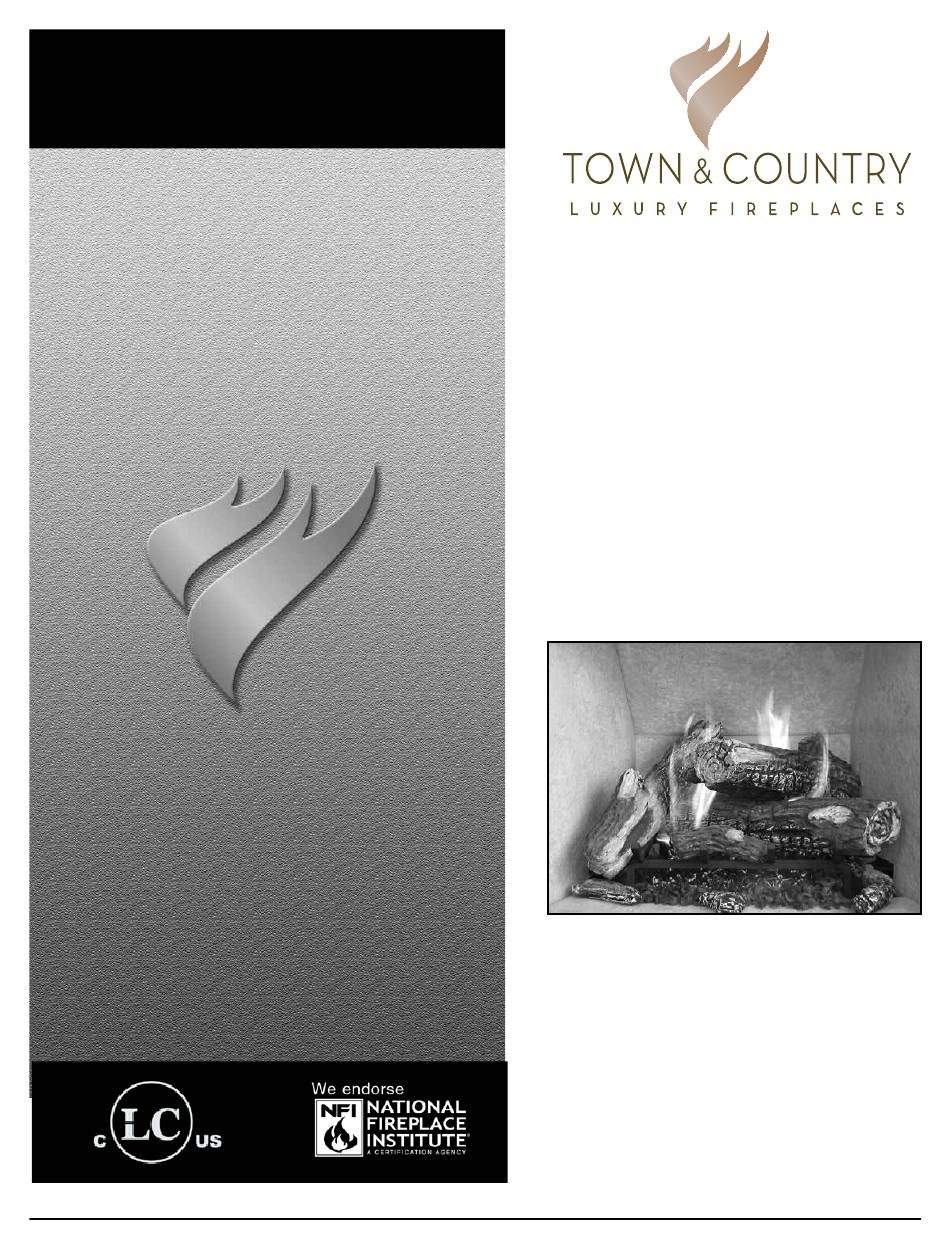

Town & Country Fireplaces TC36D Instructions Manual

Country home burner kit
Hide thumbs Also See for TC36D:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the
Installation and Operating Instructions supplied
with the fireplace and should be kept together.
Refer to the Installation and Operating Instructions
for proper gas supply, safety requirements and
operating instructions
Visit www. townandcountryfireplaces.net for the most recent version of this manual
191023-16
TC36D
COUNTRY HOME
BURNER KIT
INSTRUCTIONS
(NATURAL GAS ONLY)
SKU# 22150017
For TC36D & TC36D Arch
Series D
SKU# 22150017
100005912

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC36D and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC36D

Summary of Contents for Town & Country Fireplaces TC36D

  • Page 1 TC36D COUNTRY HOME BURNER KIT INSTRUCTIONS (NATURAL GAS ONLY) SKU# 22150017 For TC36D & TC36D Arch Series D Visit www. townandcountryfireplaces.net for the most recent version of this manual 191023-16 SKU# 22150017 100005912...

  • Page 2: Contents Of Package

    Contents of Package Log Grate Ember Material 7Pcs Log Set Air Deflector Burner Assembly Figure 1: TC36 and TC36 Arch Country Home burner kit contents. Burner/ Grate Installation Screws Figure 2: Firebox base. 1. Place the keyhole slots of the burner (Figure 3) over the two screws located on the firebox floor (Figure 2).
  • Page 3 Figure 3: Burner assembly over top of right side screw. Figure 4: Burner assembly pushed back against right side screw. 2. Slide the burner back to engage the screws in the small part of the keyhole slot and tighten screws (Figure 4). 3.
  • Page 4 Figure 6: Gas and supply tubes. 4. Attach the pilot and gas supply tubes to the bulk head fitting and tighten (Figure 6). Ensure the connections are gas tight. Ignition and sensor wires Bulkhead plate Figure 7: Ignition and sensor wire routing. 5.
  • Page 5 Flame sensor Ignition wire. wire. Interface module Figure 8: Interface module. 6. Attach the ignition and sensor wires to the Interface module as shown in Figure 8. 7. Reinstall the valve control center access panel (See Figure 5 on page 3). A panel set must now be installed before the log grate can be installed.
  • Page 6 Figure 9: Securing log grate to the floor. 8. Remove the two screws in the bottom of the unit then position the slots of the grate securing brackets over the holes in the floor shield and secure with the two screws (Fig. # 9). 9.

  • Page 7: Ember Material Placement

    Ember Material Placement GLOWING EMBERS Figure 11: Glowing Ember placement. A large bag of ember material is shipped with the fireplace and needs to be installed to ensure optimum performance and flame appearance. Pull apart the material into ember size pieces (approximately 1” squares) and gently place them into the burner pan.
  • Page 8 Log Set and Assembly 100005912 SKU# 22150017 191023-16...

  • Page 9: Log Placement

    Log Placement Gas plumbing and vent connections should be completed before proceeding. The logs are fragile, and should be handled with care. Unpack and inspect log set. There should be a total of seven logs. Position the logs as indicated by the following pictures. The three main logs have holes and / or pins. Engage each pin in the corresponding holes.
  • Page 10 Figure 14: 3rd log placement. 3. Place Log 3 on an angle and engage the holes in the bottom of Log 3 onto the pin in the back corner of the log grate and the pin in the middle of Log 1. 4.
  • Page 11 Figure 16: 5th log placement. 5. Place Log 5 on the right front panel, around the right leg of the log grate and with the charred end pointing towards the center of the fireplace. 6. Place Log 6 on the left front panel with the “Y” end pointing to the left side of the fireplace and the other end just in front of the left leg of the log grate.
  • Page 12 Figure 18: 7th log placement. 7. Place Log 7 in the front center of the fireplace, covering the joint between the two front panels. Figure 19: Completed log placement. 100005912 SKU# 22150017 191023-16...

  • Page 13: Gas Pressure Check

    Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from the supply pressure test port or manifold pressure test port. Verify gas pressures with the fireplace lit and on the highest setting. 1.

  • Page 14: Burner Flame Adjustment

    Burner Flame Adjustment The air shutter on the burner tube controls the primary combustion air to the gas burner and is preset at the factory for natural gas fuel. Some adjustment may be necessary to obtain desired flame and to eliminate carbon deposits. Evaluate flame appearance after the fireplace has reached operating temperature.

  • Page 15: Replacement Parts

    Replacement Parts (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. ITEM ..DESCRIPTION ..........PART NO. #4..PILOT ASSEMBLY ......80002855 #1..COUNTRY HOME BURNER ASSY ... 22150017 #5..MAIN SUPPLY TUBE ......80002875 #2..7 PCS LOG SET ......... 80001207 #3..
  • Page 16 © 2023 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your retailer Web site: www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
