Summary of Contents for Monoprice Dark Matter H3C2R-HQ
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ..................3 FEATURES ................................5 MINIMUM SYSTEM REQUIREMENTS ..................5 CUSTOMER SERVICE ..........................6 PACKAGE CONTENTS ..........................6 PRODUCT OVERVIEW ..........................7 Controls ................................ 7 Connections ............................. 8 INSTALLING THE STAND ........................9 REMOVING THE STAND ........................10 OSD MENU MAP ............................ -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 4 Prior to operation, check the unit and power cord for physical • damage. Do not use if physical damage has occurred. Before plugging the unit into a power outlet, ensure that the • outlet provides the same type and level of power required by the device.
-
Page 5: Features

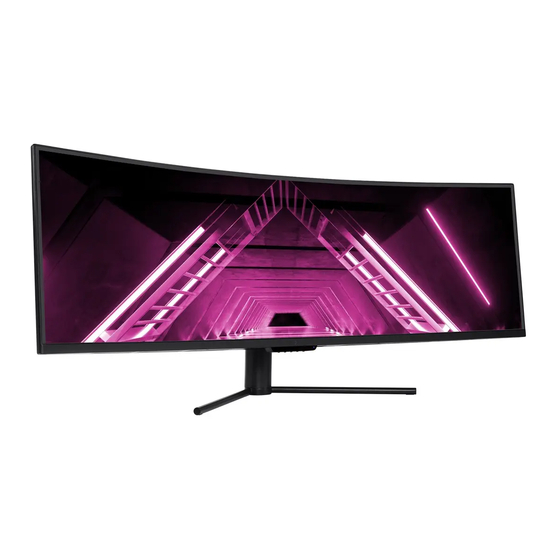

FEATURES 49" DQHD display with 1800R curvature • 2x HDMI® 2.0, and 2x DisplayPort® 1.4 video inputs • 5120 x 1440p @120Hz maximum video resolution • Samsung® LSM490YP02 panel with Quantum Dot® technology • 32:9 aspect ratio • 4ms response time •... -
Page 6: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 7: Product Overview
PRODUCT OVERVIEW Controls M: If the OSD menu is not displayed, press the M button to access the OSD menu. If the OSD menu is displayed, press the M button to enter a submenu. If editing a value, press the M button to save the edited value. -
Page 8: Connections
normally. A flashing blue LED indicates that either there no video source is detected, no horizonal or vertical signal is detected, or that the input voltage is low. Connections AUDIO: 3.5mm TRS stereo audio output for use with headphones, powered speakers, etc. DisplayPort 1: DisplayPort®... -
Page 9: Installing The Stand
INSTALLING THE STAND Perform the following steps to assemble the included stand and attach it to the monitor. Open the box, remove the monitor with the foam packaging still attached, and place it gently on a desktop or table. Remove the Stand Stem and Stand Base from the foam packaging, then attach the Stand Base to the Stand Stem using 3 of the 4 included C-Head Screws (the 4th screw is a spare). -
Page 10: Removing The Stand
Align the bracket on the end of the Stand Stem with the opening on the back of the monitor, then carefully insert it until it clicks into place. Invert the monitor and foam packaging piece to place the monitor on its stand, then remove the top foam packaging piece. -
Page 11: Osd Menu Map
Press the button on the rear of the monitor behind the Stand Stem to unlock the stand from the monitor, then remove the stand assembly. The monitor is now ready to be attached to a wall or desk mount or to be stored in the original packaging. - Page 12 Main Menu Submenu Options Description 1.8, 2.0, 2.2, Sets the Gamma Gamma 2.4, 2.6 level Standard, Selects one of the Photo, Picture picture modes for Movie, Setting use with different Game, FPS, types of content Color Setting Color Warm, Cool, Sets the color Temperature User...
- Page 13 Main Menu Submenu Options Description Compensates for gray scale display Dynamic screen and Luminous On, Off strengthens the Control expression of gray scale content Wide Screen, Sets the screen Aspect Ratio 4:3, 1:1, Auto aspect ratio Display HDMIEDID HDMI 4K, SwitchMode HDMI 5K Turns audio muting...
- Page 14 Main Menu Submenu Options Description Selects the input DP 1, DP 2, Sub Win2 source for window 2 HDMI 1, Input in multi-window HDMI 2 mode Selects the input DP 1, DP 2, Sub Win3 source for window 3 HDMI 1, Input in multi-window HDMI 2...
- Page 15 Main Menu Submenu Options Description Adjusts the vertical OSD V- 0~100 position of the OSD Position menu Sets the overall transparency/ 0~100 Transparency opacity of the OSD menu Sets the amount of time of inactivity OSD Time Out 5~100 before the OSD menu automatically closes Rotates the...
-
Page 16: Troubleshooting
TROUBLESHOOTING Q1: The screen is blank. A1: Ensure that power is turned on. Check the video cable connections. Try swapping out the video cable with a known good one. Ensure that the video source is turned on and producing video. Q2: The image is out of focus. - Page 17 Q6: The LED indicator is off. A6: Check the power connection. Ensure power is turned on. Q7: There is no video signal. A7: Confirm the PC and graphics card settings and compatibility. Inspect the condition of the monitor and graphics card connectors. Try swapping the video cable with a known good one.
-
Page 18: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 19 Default Color Temperature 6500K Contrast Ratio 3000:1 Backlighting Number of Colors More than 16.7 million Color Depth 8-bit sRGB 99%, NTSC 98%, DCI-P3 Color Gamut 95%, Adobe® RGB 93% Viewing Angles 178°/178° Response Time AMD® FreeSync™ Version AMD® FreeSync™ Refresh Rate 50 ~ 120 Hz Dot Pitch 0.2331 x 0.2331 mm...
-
Page 20: Regulatory Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be... -
Page 21: Notice For Industry Canada
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. - Page 22 Monoprice™, Dark Matter™, PixelPerfect™, the Dark Matter logo, the PixelPerfect logo, and all Monoprice logos are trademarks of Monoprice Inc. AMD® is a registered trademark of Advanced Micro Devices, Inc. in the United States and/or other jurisdictions. FreeSync™ is a trademark of Advanced Micro Devices, Inc.
