Example; Additional Notes - SpectraLink MOG600 Technical Bulletin

(2 of 2 necessary files
needed to upgrade
gateway firmware)
mog600.bin
pdt02c.bin
pft02c.bin
phintl.bin

Example:

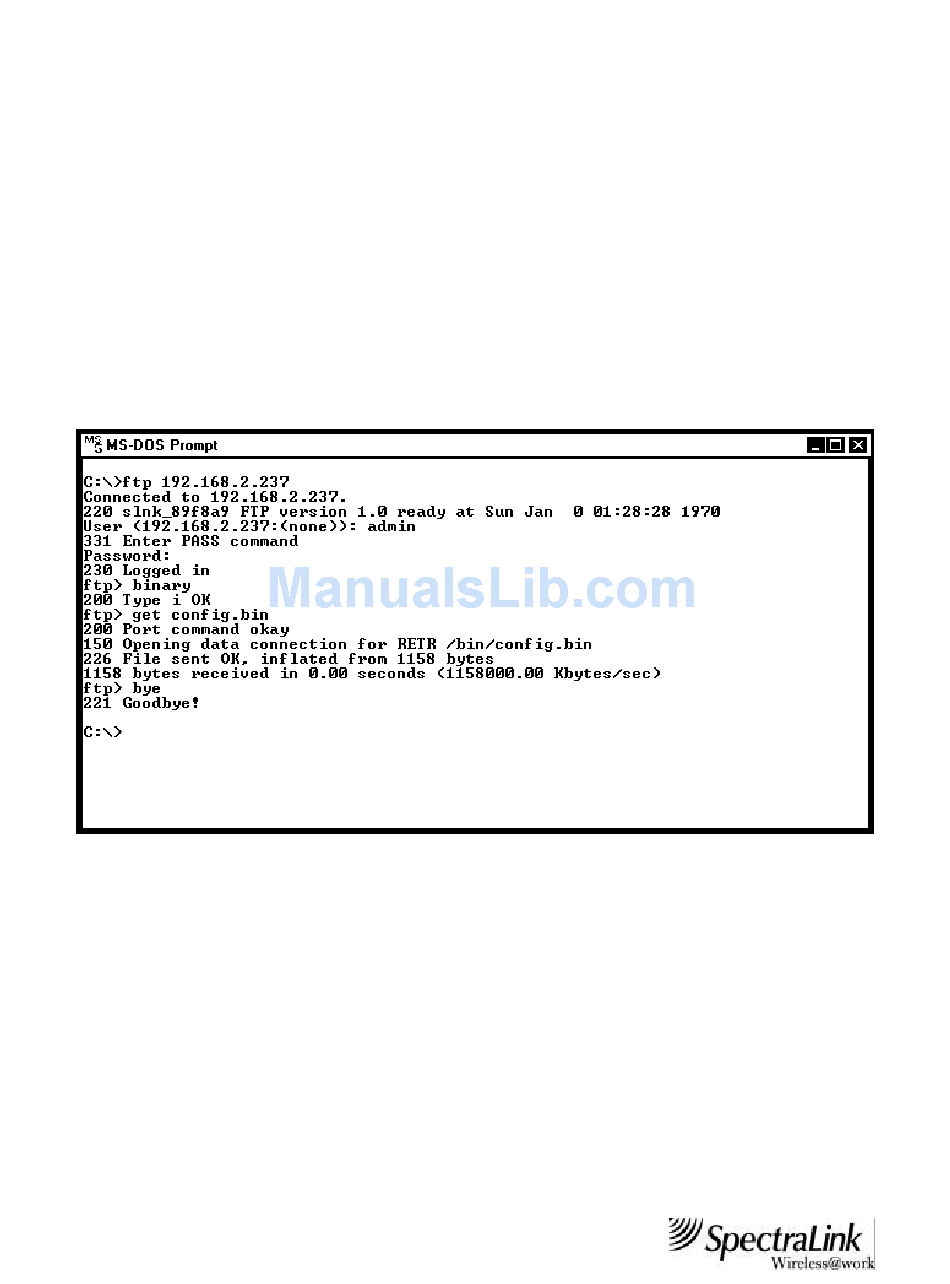

The following example shows how to backup a gateway's configuration

Additional Notes:

All files retrieved from the gateway or needed to place into the gateway
should be found in the folder in which the user begins the ftp session from.
10/02/00
config.bin
Functional code needed to upgrade OAI firmware
Functional code that can be downloaded over-the-air and used
by Direct Sequence Wireless Telephones
Functional code that can be downloaded over-the-air and
used by Frequency Hopping Wireless Telephones
International Image that can be downloaded over-the-air to
allow phones to conform to various International Standards
A complete file of all configuration data (MAC Addresses,
Names, Extensions, Macros, etc.) stored in the gateway
(Note: This is the only file that can be put & get from the
gateway.)
