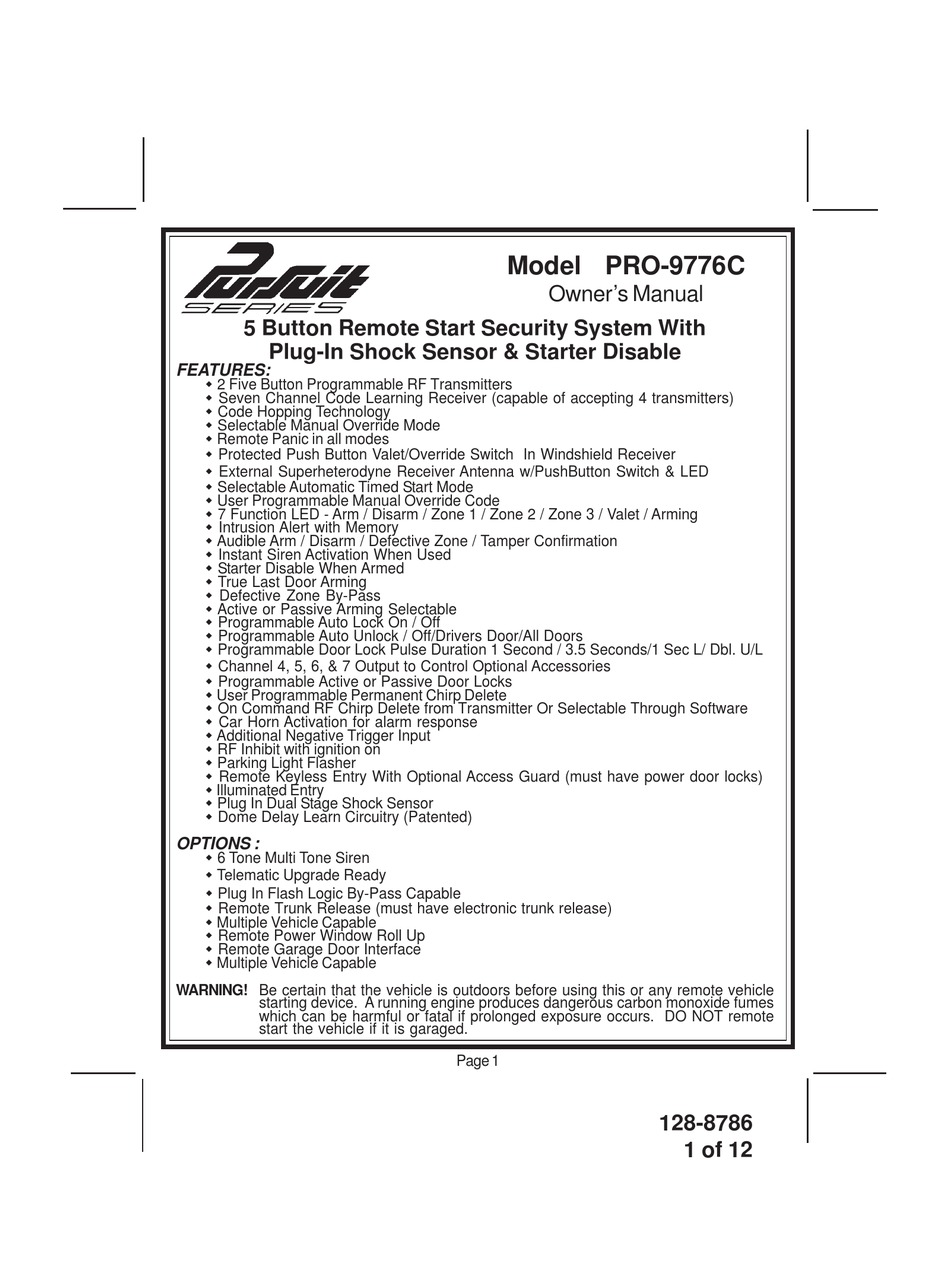

PURSUIT PRO-9776C Owner's Manual

5 button remote start security system with plug-in shock sensor & starter disable
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5 Button Remote Start Security System With
Plug-In Shock Sensor & Starter Disable
FEATURES:
 2 Five Button Programmable RF Transmitters
 Seven Channel Code Learning Receiver (capable of accepting 4 transmitters)
 Code Hopping Technology
 Selectable Manual Override Mode
 Remote Panic in all modes
 Protected Push Button Valet/Override Switch In Windshield Receiver
 External Superheterodyne Receiver Antenna w/PushButton Switch & LED
 Selectable Automatic Timed Start Mode
 User Programmable Manual Override Code
 7 Function LED - Arm / Disarm / Zone 1 / Zone 2 / Zone 3 / Valet / Arming
 Intrusion Alert with Memory
 Audible Arm / Disarm / Defective Zone / Tamper Confirmation
 Instant Siren Activation When Used
 Starter Disable When Armed
 True Last Door Arming
 Defective Zone By-Pass
 Active or Passive Arming Selectable
 Programmable Auto Lock On / Off
 Programmable Auto Unlock / Off/Drivers Door/All Doors
 Programmable Door Lock Pulse Duration 1 Second / 3.5 Seconds/1 Sec L/ Dbl. U/L
 Channel 4, 5, 6, & 7 Output to Control Optional Accessories
 Programmable Active or Passive Door Locks
 User Programmable Permanent Chirp Delete
 On Command RF Chirp Delete from Transmitter Or Selectable Through Software
 Car Horn Activation for alarm response
 Additional Negative Trigger Input
 RF Inhibit with ignition on
 Parking Light Flasher
 Remote Keyless Entry With Optional Access Guard (must have power door locks)
 Illuminated Entry
 Plug In Dual Stage Shock Sensor
 Dome Delay Learn Circuitry (Patented)
OPTIONS :
 6 Tone Multi Tone Siren
 Telematic Upgrade Ready
 Plug In Flash Logic By-Pass Capable
 Remote Trunk Release (must have electronic trunk release)
 Multiple Vehicle Capable
 Remote Power Window Roll Up
 Remote Garage Door Interface
 Multiple Vehicle Capable
WARNING! Be certain that the vehicle is outdoors before using this or any remote vehicle
starting device. A running engine produces dangerous carbon monoxide fumes
which can be harmful or fatal if prolonged exposure occurs. DO NOT remote
start the vehicle if it is garaged.
Model PRO-9776C
Owner's Manual
Page 1
128-8786
1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-9776C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PURSUIT PRO-9776C

Summary of Contents for PURSUIT PRO-9776C

  • Page 1 Model PRO-9776C Owner’s Manual 5 Button Remote Start Security System With Plug-In Shock Sensor & Starter Disable FEATURES:  2 Five Button Programmable RF Transmitters  Seven Channel Code Learning Receiver (capable of accepting 4 transmitters)  Code Hopping Technology ...

  • Page 2: Your " Code Hopping " Transmitters

    Your Remote Start Alarm System has many features and available options some of which are selected at time of installation. For your reference, the list on page 9 of this manual shows what features and options have been installed. Consult your installing dealer for options that may have been installed and are not listed.

  • Page 3: Arming The System - Passive (Automatic)

    when arming, then the chirps have been turned off and you should refer to the section titled "ELIMINATING THE ARM/DISARM CHIRPS" in this manual. ARMING THE SYSTEM - PASSIVE (AUTOMATIC) If the passive arming feature has been selected: 1. Turn the engine off, exit the vehicle, and close all doors, hood and trunk. The dash mounted LED will begin to flash rapidly indicating that the 30 second passive arming timer has begun.

  • Page 4: Silent Disarming

    If the siren did not sound upon disarm, then the chirps have been turned off. Refer to the section titled ELIMINATING THE ARM/DISARM CHIRPS. NOTE: If the optional 2 step door unlock circuit is installed, when the unlock transmitter button is activated, the drivers door only will unlock, pressing the unlock button a second time will cause all doors to unlock.

  • Page 5: Manually Overriding Your System

    mechanics. When the system is in valet mode, all alarm functions are bypassed, however the remote panic feature and remote door locks will remain operational. To use the valet mode, the system must first be disarmed either by using your keychain transmitter, or by activating your personalized manual override code.

  • Page 6: Eliminating The Normal Arm/Disarm Chirps

    NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for more than 5 seconds during any of the above steps, the unit will revert back to the last successfully stored code. Custom Code Programming Example: To Change the code from the factory pre-assigned code of 11 to “52”...

  • Page 7: Remote Panic Operation

    4. If the chirps were on before you started, the siren will emit 2 short chirps indicating that the chirps are now off. If the chirps were off before you started, the siren will emit one short chirp indicating that the chirps are now on. NOTE: If the vehicle battery is disconnected then reconnected, the unit will return to the default setting of chirps on.

  • Page 8: Remote Starting The Vehicle

    3) Be certain your foot is off the brake pedal. receiver's 4) Press the program/Push-Button switch 2 times within 5 seconds. The parking lights will flash two times indicating the mode was successfully entered. If your parking lights flashed four times, this indicates the turbo mode was on and is now turned off.
  • Page 9 WARNING ! Be certain that the vehicle is outdoors before using this or any remote vehicle starting device. A running engine produces dangerous carbon monoxide fumes which can be harmful or fatal if prolonged exposure occurs. DO NOT remote start the vehicle if it is garaged. TO BEGIN THE AUTOMATIC START UP TIMER 1.

  • Page 10: Telematic Upgrade

     Remote Trunk Release  Remote Window Closure  Rear Hatch Release  Right Or Left Slider Doors in An Equipped Van To activate the optional accessory, press the option button on the keychain transmitter. The optional accessory will immediately engage. ADDITIONAL REMOTE FUNCTION (CHANNEL 6) This system has an additional feature that can be connected to a number of different optional accessories.
  • Page 11 Page 11 128-8786 11 of 12...
  • Page 12 PRO-9776C SYSTEM FUNCTIONS AT A GLANCE ALARM DASH LED INDICATORS RAPID FLASHING PASSIVE ARMING SLOW FLASHING ARMED DISARMED ON SOLID VALET MODE 3 FLASH... PAUSE INTRUSION ZONE 3 2 FLASH...PAUSE INTRUSION ZONE 2 1 FLASH...PAUSE INTRUSION ZONE 1 ALARM SIREN CHIRP INDICATION...
