Forest garden ODA46 Assembly Instructions

Overlap Apex Shed
6' x 4'
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
This building is pre-treated with a factory base coat for
protection during storage and transit. We recommend that
you treat your new building as soon as possible after
assembly using a wood preservative treatment. Apply in
accordance with the manufacturers instructions.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Due to the nature of the material the doors may need some
trimming for a neater fit.
- Please keep all plastic bags and small parts away from
children
- The roof of this building is not a load bearing structure.
- This product must be built on a solid level base.
0333 7777 089
Technical Help line: 8.30 am and 5.00
pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled
to. If the product is not constructed in accordance with the
instructions, or is altered in anyway (e.g. painted), the
manufacturer cannot be held liable for any resulting damage.
Not to Scale
Fixing Pack (OPA46FP)
This fixing pack is used for several products.
There may be additional fixings.
Hasp &
Staple
Flush Hinge
Qty 2
10mm Felt tacks
Qty 100
REQUIRED TOOLS :
(NOT SUPPLIED)
SHARP KNIFE
SCISSORS
POZI DRIVE FLAT HEAD
TAPE MEASURE HAMMER
SCREWDRIVER SCREWDRIVER
Important :
Assembly of this
shed requires a
Must Pre drill for
minimum of two
each screw used.
adults.

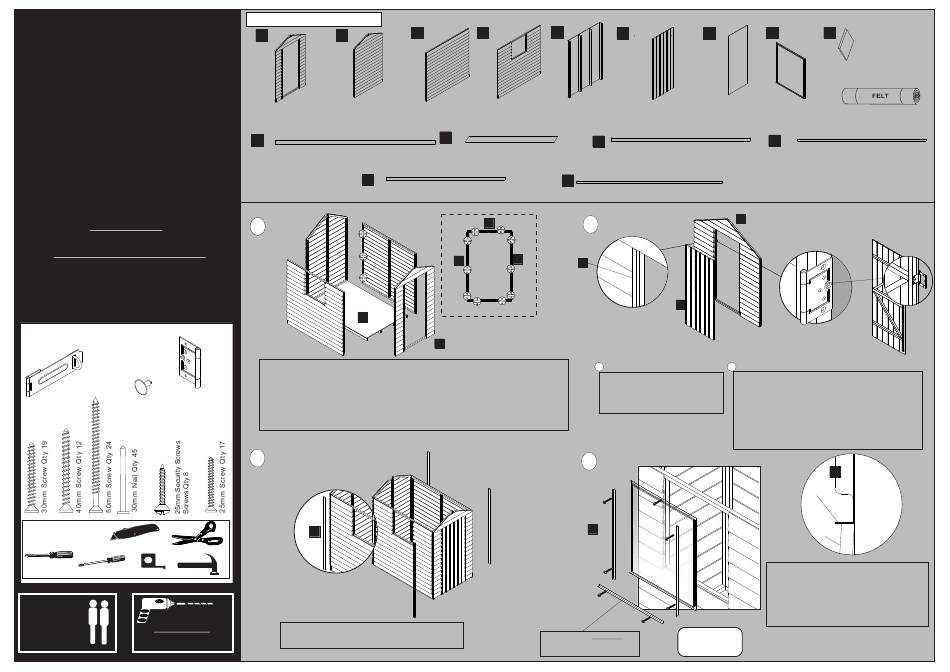

ODA46 PARTS LIST
C
A B
ODA4PE ODA6PS
ODA4DE
PLAIN END PLAIN SIDE
DOOR END
H J
45281753
1753mm BATTEN QTY 1
N
PLASTIC GLAZING STRIP QTY 3
1 1
E
Place the panels on top of the floor. Make sure that all the panels are tight and flush before
fixing them to each other using 3x50mm screws.
Make sure that the panels are sitting flush before fixing to the floor using 50mm screws making
sure that all of the screws are positioned so that they screw into the bearers underneath.
3x50mm screws for the plain and window sides.
2x50mm screws for the plain and door ends.
3
J
L
Place the corner strips so that they cover the joins
between the panels. Fix each in place using 3 x 30mm
screws
D E
ODA6WS SFL46
WINDOW PANEL FLOOR
K
L
51120810PAII58DT
810mm BARGE BOARD QTY 4
O
84996
Top View
2
B
D
C
O
A A
a
Fix the 20 x 1695mm strip to the side
of the door frame so that it is tight
with the cladding and flush with the
frame. Use 3 x 30mm screws.
4
N
Using scissors (carefully) cut
one of the plastic strips to
559mm.
F G H
SDRDT 17917658 PCWIN1
DOOR ROOF SHEET GLAZING
QTY 2 QTY 1
M
44121570DT
1570mm C/STRIP QTY 4
20121695PDT
20 x1695mm STRIP QTY 1
A
F
b
Place the hinge against the inside of the door frame and
position the large section of the hinge so that it is flush
with the inside of the framing as shown. Fix with 25mm
screws.
Open the hinge and fix the smaller section to the door
framing. Again make sure that the hinge is flush and that
the holes are positioned so that the 25mm screws locate
correctly into the batten.
Place the window from the outside so that the lip sits on
the bottom board as shown.
Place the plastic strips around the window so that one
side butts up against the cladding.
Fix the strips and the window in place using 2 x security
screws for each strip and one for the top of the window.
Attention:
Take care when placing
the screws. These can
not be backed out.
I
FIN20010512DT
Finial
QTY 1
85052 QTY 1
37281791
1791mm BATTEN QTY 2
H
Lip
Board
Issue 0115
