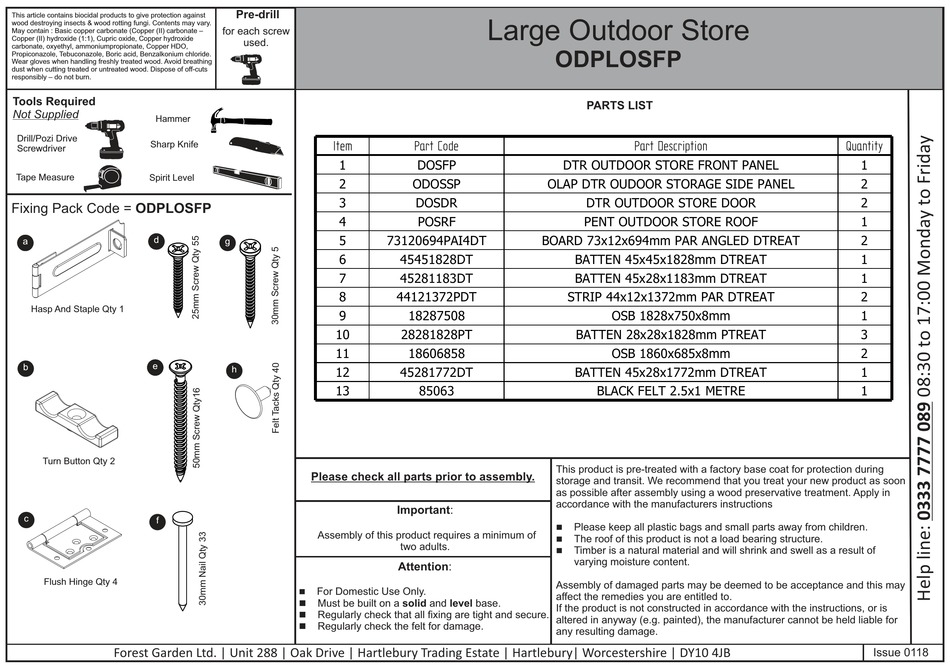

Forest garden ODPLOSFP Quick Start Manual

This article contains biocidal products to give protection against
wood destroying insects & wood rotting fungi. Contents may vary.
May contain : Basic copper carbonate (Copper (II) carbonate –
Copper (II) hydroxide (1:1), Cupric oxide, Copper hydroxide
carbonate, oxyethyl, ammoniumpropionate, Copper HDO,
Propiconazole, Tebuconazole, Boric acid, Benzalkonium chloride.
Wear gloves when handling freshly treated wood. Avoid breathing
dust when cutting treated or untreated wood. Dispose of off-cuts
responsibly – do not burn.

Tools Required

Not Supplied
Hammer
Drill/Pozi Drive
Sharp Knife
Screwdriver
Tape Measure
Spirit Level
Fixing Pack Code = ODPLOSFP
a d
a a
Hasp And Staple Qty 1
a e
b
Turn Button Qty 2
c
f
Flush Hinge Qty 4
Forest Garden Ltd. | Unit 288 | Oak Drive | Hartlebury Trading Estate | Hartlebury| Worcestershire | DY10 4JB
Pre-drill
for each screw
used.
Item
1
2
3
4
5 73120694PAI4DT
g
6 45451828DT
7 45281183DT
8 44121372PDT
9
10 28281828PT
11
h
12 45281772DT
13
Please check all parts prior to assembly.
Important:
Assembly of this product requires a minimum of
two adults.
Attention:
For Domestic Use Only.
n
Must be built on a
n
Regularly check that all fixing are tight and secure.
n
Regularly check the felt for damage.
n

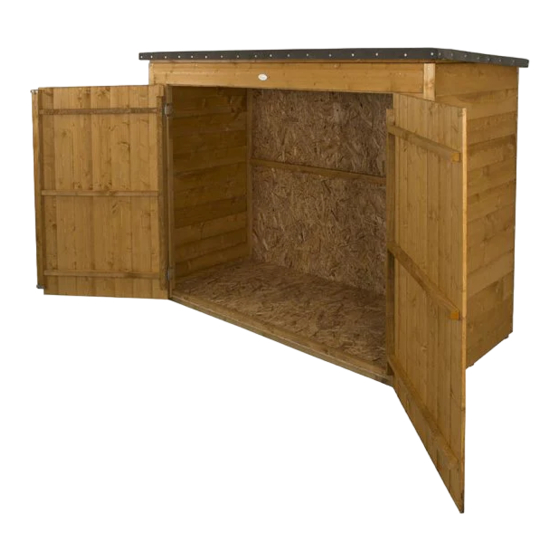

Large Outdoor Store
ODPLOSFP
Part Code
DOSFP DTR OUTDOOR STORE FRONT PANEL
ODOSSP OLAP DTR OUDOOR STORAGE SIDE PANEL
DOSDR
POSRF
BOARD 73x12x694mm PAR ANGLED DTREAT
BATTEN 45x45x1828mm DTREAT
BATTEN 45x28x1183mm DTREAT
STRIP 44x12x1372mm PAR DTREAT
18287508
BATTEN 28x28x1828mm PTREAT
18606858
BATTEN 45x28x1772mm DTREAT
85063
This product is pre-treated with a factory base coat for protection during
storage and transit. We recommend that you treat your new
as possible after assembly using a wood preservative treatment. Apply in
accordance with the manufacturers instructions
Please keep all plastic bags and small parts away from children.
n
The roof of this product is not a load bearing structure.
n
Timber is a natural material and will shrink and swell as a result of
n
varying moisture content.
Assembly of damaged parts may be deemed to be acceptance and this may
affect the remedies you are entitled to.
solid and level base.
If the product is not constructed in accordance with the instructions, or is
altered in anyway (e.g. painted), the manufacturer cannot be held liable for
any resulting damage.

PARTS LIST

Part Description
DTR OUTDOOR STORE DOOR
PENT OUTDOOR STORE ROOF
OSB 1828x750x8mm
OSB 1860x685x8mm
BLACK FELT 2.5x1 METRE
Quantity
1
2
2
1
2
1
1
2
1
3
2
1
1
product as soon
Issue 0118
