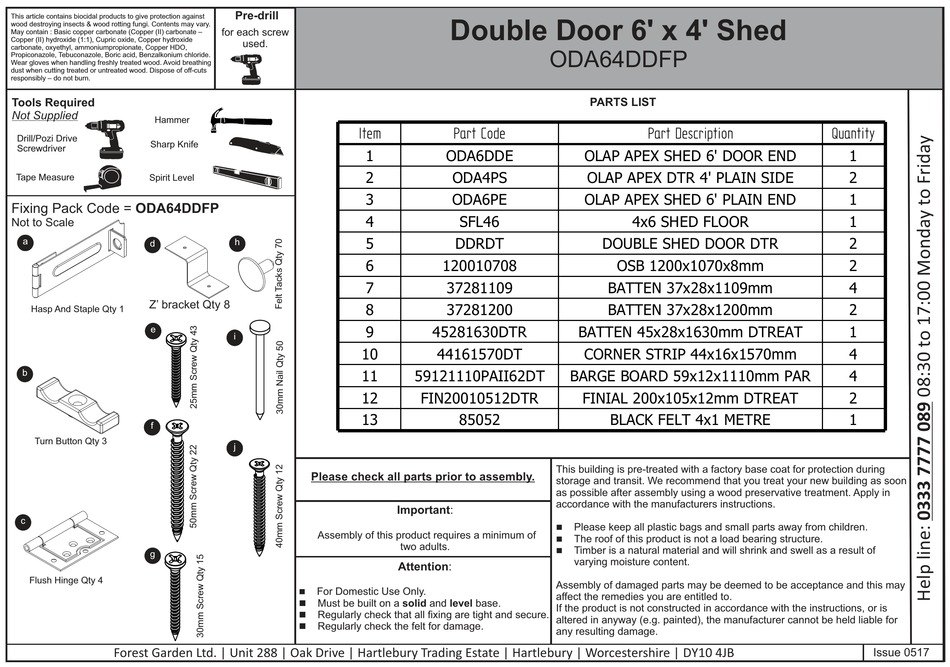

Forest garden ODA64DDFP Assembly Instructions

This article contains biocidal products to give protection against
wood destroying insects & wood rotting fungi. Contents may vary.
May contain : Basic copper carbonate (Copper (II) carbonate –
Copper (II) hydroxide (1:1), Cupric oxide, Copper hydroxide
carbonate, oxyethyl, ammoniumpropionate, Copper HDO,
Propiconazole, Tebuconazole, Boric acid, Benzalkonium chloride.
Wear gloves when handling freshly treated wood. Avoid breathing
dust when cutting treated or untreated wood. Dispose of off-cuts
responsibly – do not burn.
Tools Required
Not Supplied
Hammer
Drill/Pozi Drive
Sharp Knife
Screwdriver
Tape Measure
Spirit Level
Fixing Pack Code = ODA64DDFP
Not to Scale
a a
d
Z' bracket Qty 8
Hasp And Staple Qty 1
a e
b
a f
Turn Button Qty 3
c
g
Flush Hinge Qty 4
Forest Garden Ltd. | Unit 288 | Oak Drive | Hartlebury Trading Estate | Hartlebury | Worcestershire | DY10 4JB
Pre-drill
for each screw
used.
Item
1
2
3
4
5
h
6
7
8
9
f i
10
11
12
13
f j
Please check all parts prior to assembly.
Important:
Assembly of this product requires a minimum of
two adults.
Attention:
For Domestic Use Only.
n
Must be built on a
n
Regularly check that all fixing are tight and secure.
n
Regularly check the felt for damage.
n
Double Door 6' x 4' Shed
ODA64DDFP
Part Code
ODA6DDE
ODA4PS
ODA6PE
SFL46
DDRDT
120010708
37281109
37281200
45281630DTR BATTEN 45x28x1630mm DTREAT
44161570DT
59121110PAII62DT BARGE BOARD 59x12x1110mm PAR
FIN20010512DTR
85052
This building
storage and transit. We recommend that you treat your new building as soon
as possible after assembly using a wood preservative treatment. Apply in
accordance with the manufacturers instructions.
Please keep all plastic bags and small parts away from children.
n
The roof of this product is not a load bearing structure.
n
Timber is a natural material and will shrink and swell as a result of
n
varying moisture content.
Assembly of damaged parts may be deemed to be acceptance and this may
affect the remedies you are entitled to.
solid and level base.
If the product is not constructed in accordance with the instructions, or is
altered in anyway (e.g. painted), the manufacturer cannot be held liable for
any resulting damage.
PARTS LIST
Part Description
OLAP APEX SHED 6' DOOR END
OLAP APEX DTR 4' PLAIN SIDE
OLAP APEX SHED 6' PLAIN END
4x6 SHED FLOOR
DOUBLE SHED DOOR DTR
OSB 1200x1070x8mm
BATTEN 37x28x1109mm
BATTEN 37x28x1200mm
CORNER STRIP 44x16x1570mm
FINIAL 200x105x12mm DTREAT
BLACK FELT 4x1 METRE
is pre-treated with a factory base coat for protection during
Quantity
1
2
1
1
2
2
4
2
1
4
4
2
1
Issue 0517
