ETM 770-PRO Quick Start Manual

770-PRO
CELLULAR SIGNAL ANALYZER
Quick Start Guide
INTRODUCTION

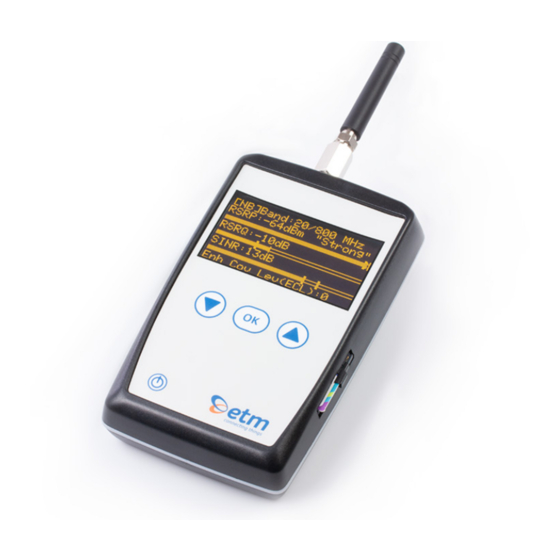

770-PRO is a handheld signal analyzer for cellular
2G/3G/4GCat M1/Cat NB2 network measurements.
Common applications include:
• Determine the best operator
• Check signal strength & coverage
• Send measured data to server
FEATURES
• 2G/3G/4G or 2G/LTE Cat M1/LTE Cat NB2 coverage
• Monochrome OLED display
• Rechargeable battery
• Mini USB for programming and charging
• Includes antenna, hard case and charger
ACCESSORIES
Carrying case
Power Adapter USB Car Charger
• Check working IP connection
• Select the best antenna
• Check parameters like Lac, cell
Antenna
USB to Mini USB
Adapter
Welcome to your ETM Product
Get started: This guide helps with initial product setup. Need more? Find
additional product information by scanning the QR code.
Support: For support, please visit
www.etmiot.com
If urgent, please call us using the number below.
Sigicom AB (ETM part of Sigicom Group)
Glasfibergatan 8, 125 45, Älvsjö, Sweden
Tel: +46 (0)8 25 28 75 E-mail:
www.etmiot.com
NETWORK COVERAGE
Model
Part.no
Module Cinterion PLS63-W + Cinterion TX62
GNSS GPS/GLONASS/BeiDou/Galileo
2G Bands
3G Bands
LTE 4G Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
Cat M1 Bands
Cat NB2 Bands 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 27, 28, 66, 71, 85
WANT A VIDEO USER GUIDE?
There is an ETM770 user guide available on Youtube, use
the link or scan the QR code to watch:
https:/ /www.youtube.com/watch?v=kGrbhHnXsos&t=117s
Buttons/Navigation
OK Button
Arrow Up
Arrow Down
On/Off/Restart
Turn off
Restart Device
or e-mail support@sigicom.com
sales@etmiot.se
770-PRO
20595
850/900/1800/1900MHz
1, 2, 3, 4, 5, 6, 8, 9, 19
38, 40, 41
Action button/Forward navigation
Used for navigation
Backwards button
Used for Navigation
Hold power button (3s)
Option 1:
Hold Arrow Up & Arrow Down (5s)
Option 2:
Navigate System > Restart Device
