GUIDE

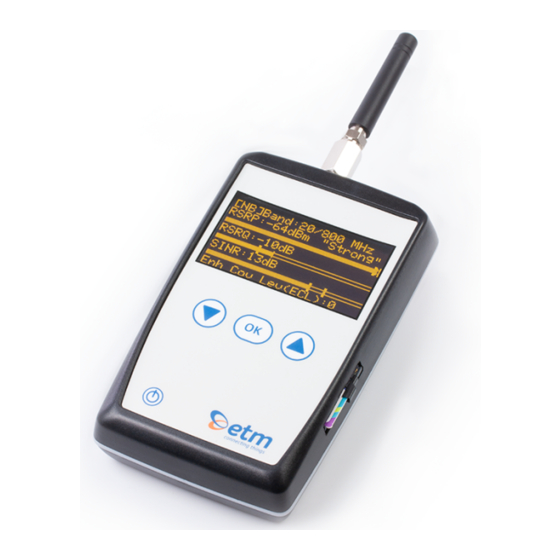

ETM770-10
CELLULAR NETWORK MONITORING TOOL
1
For Support Contact +46 8 25 28 75, sales@etmiot.se or +61 2 9956 7377, sales@etmiot.com.au
1802–20210005 Rev PA1, 2021-02-08
USER
2G/Cat-NB2/Cat-M1
Features:
•
Cat NB2 & Cat M1 Connectivity
•
2G (GSM/EGPRS) Connectivity
•
Select the most suitable antenna
•
OLED display
•
Send measured data to EWO server
•
Rechargeable battery
•
Sleep Mode for super low power
consumption
•
Includes antenna, hard case and
charger
