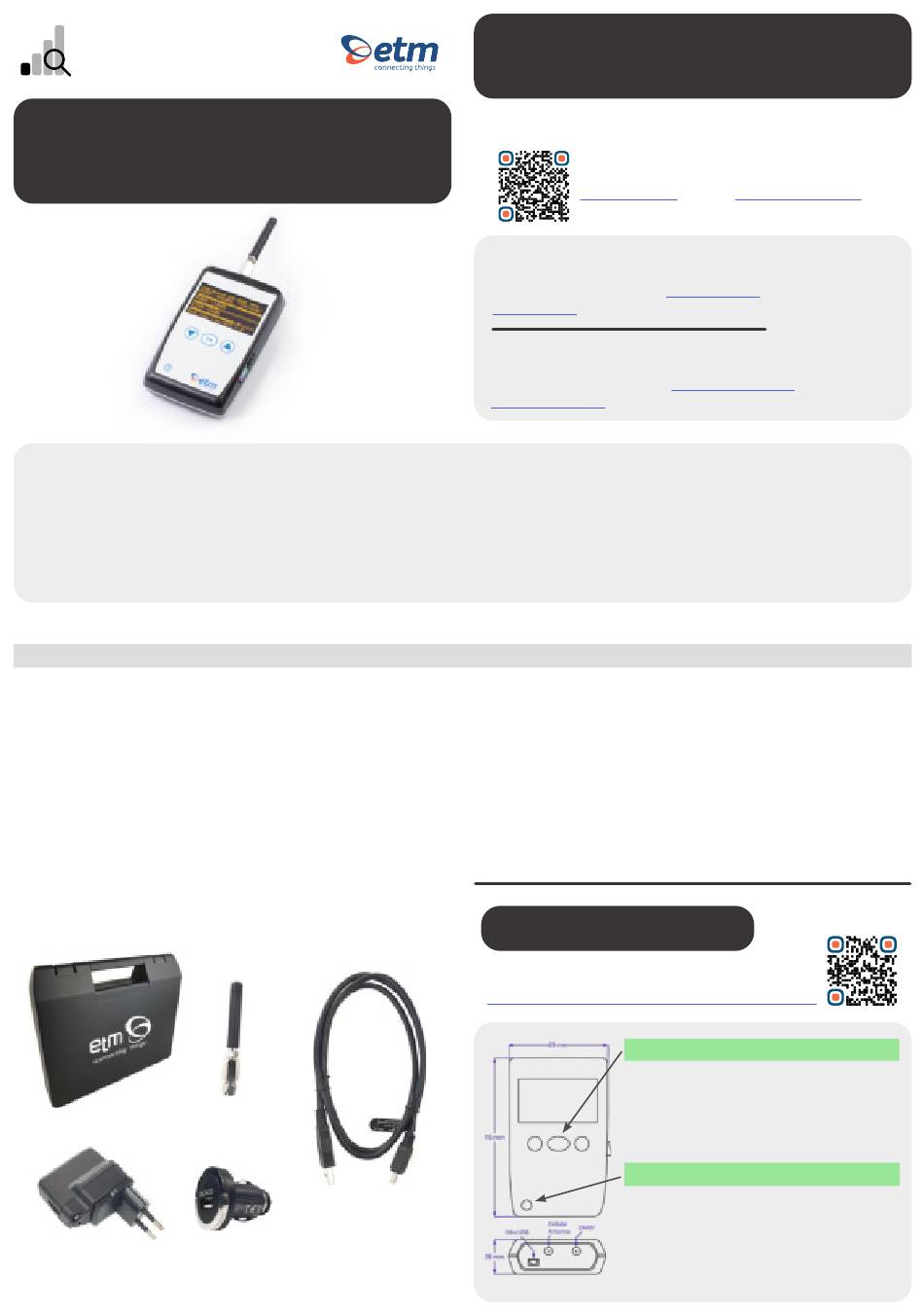

ETM 20593 Quick Start Manual

ETM770
CELLULAR SIGNAL ANALYZER
Quick Start Guide
ETM770
is a handheld signal analyzer
2G/3G/4G/Cat M1/Cat NB
for cellular
Common applications include:
• Determine the best operator
• Check signal strength & coverage
• Send measured data to server
ETM770 VERSIONS & COVERAGE
Model
Part.no
Module
GNSS
GSM/GPRS (2G)
UMTS (3G)
FDD-LTE (4G) 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
TDD-LTE (4G)
FDD-LTE
(Cat M1, NB1,
NB2)
ACCESSORIES
Carrying case
Power Adapter USB Car Charger
network measurements.
• Check working IP connection
• Select the best antenna
• Check parameters like Lac, cell
ETM770-LTE
20593
Cinterion PLS63-W
-
850/900/1800/1900MHz
1, 2, 3, 4, 5, 6, 8, 9, 19
38, 40, 41
-
Antenna
USB to Mini USB
Adapter
Welcome to your ETM Product
Get started: This guide helps with initial product setup. Need more? Find
additional product information by simply scanning the QR code.
Support: ETM offers multiple support options to help you
get the most out of your product. You can go onto
www.etmiot.com
If urgent, please call us using the numbers below.
ETM Mätteknik AB (HQ)
Ekbacksvägen 32, 168 69, Bromma, Sweden
Tel: +46 (0)8 25 28 75
www.etmiot.se
ETM Pacific Pty Ltd (APAC)
Suite 6, 273 Alfred Street, North Sydney NSW 2060, Australia
Tel: +61 (0)2 9956 7377
www.etmiot.com.au
FEATURES
• 2G/3G/4G/LTE Cat M1/LTE Cat NB1,2 worlwide coverage
• Monochrome OLED display
• Rechargeable battery with long lasting battery life
• Mini USB for programming and charging
• Includes antenna, hard case and charger
ETM770-IoT
20594
Cinterion TX62
GPS/GLONASS/BeiDou/Galileo/QZSS
850/900/1800/1900MHz
-
-
-
1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 27,
28, 66, 71, 85
WANT A VIDEO USER GUIDE?
There is an ETM770 user guide available on Youtube, use
the link or scan the QR code to watch:
https:/ /www.youtube.com/watch?v=kGrbhHnXsos&t=117s
or e-mail support@etmiot.com
E-mail: sales@etmiot.se
E-mail: sales@etmiot.com.au
ETM770-PRO
20595
PLS63-W & TX62
GPS/GLONASS/BeiDou/Galileo/QZSS
850/900/1800/1900MHz
1, 2, 3, 4, 5, 6, 8, 9, 19
1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
38, 40, 41
1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 27, 28,
66, 71, 85
Buttons/Navigation
OK Button Action button/Forward navigation
Arrow Up Used for navigation
Backwards button
Arrow Down Used for Navigation
On/Off/Restart
Turn off Hold power button (3s)
Restart Device
Option 1:
Hold Arrow Up & Arrow Down (5s)
Option 2:
Navigate System > Restart Device
