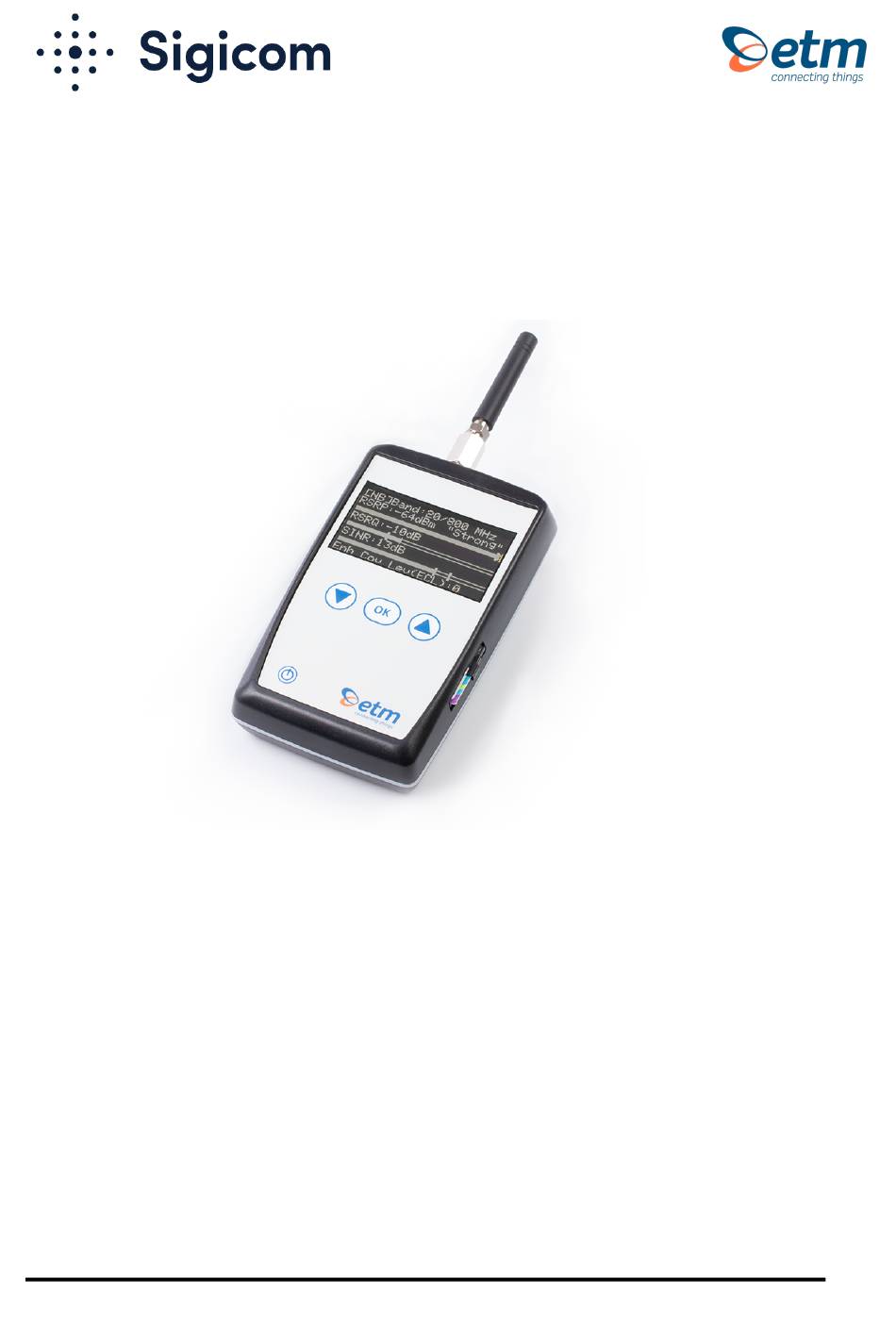

- Page 1 770-PRO Cellular Signal Analyzer Art no. 090-07700-0 Manual ver. A Manual Copyright ©Sigicom AB Art.no...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Technical data ................3 Button configuration ..............4 Device Menu Flowchart ..............5 Accessories ..................5 Device Info, Settings & Testing .............. 6 2.1 SMS remote configuration ............... 6 System .................... 7 2.2.1 Device Data ................8 2.2.2 Server Address ................ - Page 3 Developed originally by: ETM Mätteknik (Now part of Sigicom AB) Glasfibergatan 8 SE-125 45 ÄLVSJÖ Sweden Phone (Office): +46 8 449 97 50 Email: sales@etmiot.com Copyright ©Sigicom AB...
-
Page 4: Introduction
1. Introduction The 770-Pro is a tool used for analyzing cellular signals, originally developed by ETM Mätteknik, which is now a part of Sigicom Group. 770-Pro was developed to support both Cat M1, NB as well as 4G, 3G, 2G technology while also providing GPS positioning together with cellular data. -
Page 5: Button Configuration
1.2 Button configuration Action/Button Explanation Restart device Hold Arrow down + up 5s or System à Restart device in the device menu Power OFF Hold Power button 3s Sleep mode Hold Power button >5s OK Button Navigation Arrow Up Navigation, doubles as backwards button at top of menu Arrow Down Navigation... -
Page 6: Device Menu Flowchart
1.3 Device Menu Flowchart Flowchart showing the entire menu navigation of the tool. 1.4 Accessories The 770-Pro comes with a carrying case containing USB cable for programming/charging, charging brick, power adapters, car charger and quick start guide. Copyright ©Sigicom AB... -
Page 7: Device Info, Settings & Testing
2. Device Info, Settings & Testing 2.1 SMS remote configuration SMS COMMANDS EXPLANATION AND EXAMPLE ET-IP1=”IP Change the server address Address”:”Port” Example: ET-IP1=54.77.219.177:7162 (EWO server) ET-IP3=”IP Change the PING address Adress”:”Port” Example: ET-IP3=8.8.8.8:80 (Google) ETSAPN=“List Change APN list position”, “APN name” Example: ETSAPN=1,m2m.tele2.com ETSUP=“List position”, Change User/Password... -
Page 8: System
2.2 System Copyright ©Sigicom AB... -
Page 9: Device Data
2.2.1 Device Data Firmware version (TOP) Hardware number (HW#) IMEI Number Date and Time Module Temperature Supply Voltage Battery Voltage Rolling network Information 2.2.2 Server Address Add a server to receive data being sent from the device. This can be configured in the configuration tool shown below or via SMS command shown above. -
Page 10: Settings & Test
2.3 Settings & test 2.3.1 Select APN & Select User/Password Select which APN to use. APN can be added using the configuration tool shown below, or via SMS command shown above. The same principle goes for User and password. 2.3.2 Logging Log interval is where you activate automatic continuous logging of the signal measurements. -
Page 11: Scanning
3. Scanning 3.1 Scanning a signal Step 1: Select Radio Bands Broaden or narrow down your network scanning to only the bands you wish to scan. Note! Before selecting radio bands, please check what bands are available in your country/used by your SIM-card provider. Searching for inactive bands lead to negative results. - Page 12 Step 3: Scanning a signal Explanation The device is connected to a 4G band. The band is 7 and the frequency is 2600 MHz. RSRP - Reference Signal Received Power (the signal strength without noise and interference) measured in decibel meter (dBm). The signal is visualized in the signal bar below the data.
-
Page 13: Understanding Signal Parameters
3.2 Understanding Signal Parameters PARAMETER RSSI SINR RSRQ RSRP EC/IO Technology LTE & HSPA+ & EVDO Excellent > -65 > -5 > -84 > -2 > 12,5 Good -65 to - 10 to -9 to - -85 to - -2 to -5 12.5 Fair -75 to -... -
Page 14: View, Test And Upload/Download Scans
4. View, Test and Upload/Download Scans Explanation Band 7 / 2600 MHz Referenced Signal Received Power (RSRP) is -82 dBm with Min & Max values below. Referenced Signal Received Quality (RSRQ) is -7dB with Min & Max values below. Public Land Mobile Network (PLMN) is 240007: The channel is 2850. Scanned Network (Operator) 4.1 Communication Test Ping to test network communication. -
Page 15: Download Signal (Local)
4.3 Download Signal (Local) If logging is turned on while sending is turned off, the logged scans will be stored on the device. They can be downloaded using the configuration tool explained further down the manual. 4.4 Current Network Data Abbreviations described under appendix at the bottom of this manual. -
Page 16: Configuration Tool
5. Configuration Tool Another way of configuring your ETM770 is by using the configuration tool. Begin by downloading the latest configuration tool located under Resources on https://etmiot.com/. Proceed by connecting the unit to a computer with the provided USB charging cable. 1. - Page 17 1. When done configuring the unit, press the red button “WRITE MEMORY” to upload the configuration to the unit. 2. To see what configuration is already on the unit, press “READ MEMORY” when having the unit connected to the computer to read it onto the configuration tool.
-
Page 18: Appendix
6. Appendix Table below shows a brief explanation of the 3G network abbreviations. ABBREVIATION FULL EXPLANATION CHANN CHANNEL Shows the ARFCN (Absolute Frequency Channel Number) of the Radio Band Frequency. Primary Describes start and stop time for the time Synchronization slot that the device has been allocated. - Page 19 Table below shows a brief explanation of the 4G network abbreviations. ABBREVIATION FULL EXPLANATION EARFCN CHANNEL E-UTRA Absolute Radio Frequency Channel Number B (Band) Frequency Band E-UTRA frequency band DL bandwidth DL bandwidth UL bandwidth UL bandwidth Mode Duplex Mode TimeDivisionDuplex (TDD) or FrequencyDivisionDuplex (FDD) Mobile Country...
-
Page 20: Contact Information
7. Contact Information • Adress Sigicom AB Glasfibergatan 8 SE-125 45 ÄLVSJÖ Sweden • Phone +46 8 44 99 770 • Website www.etmiot.com www.sigicom.com • E-mail sales@etmiot.com support@sigicom.com Copyright ©Sigicom AB...
