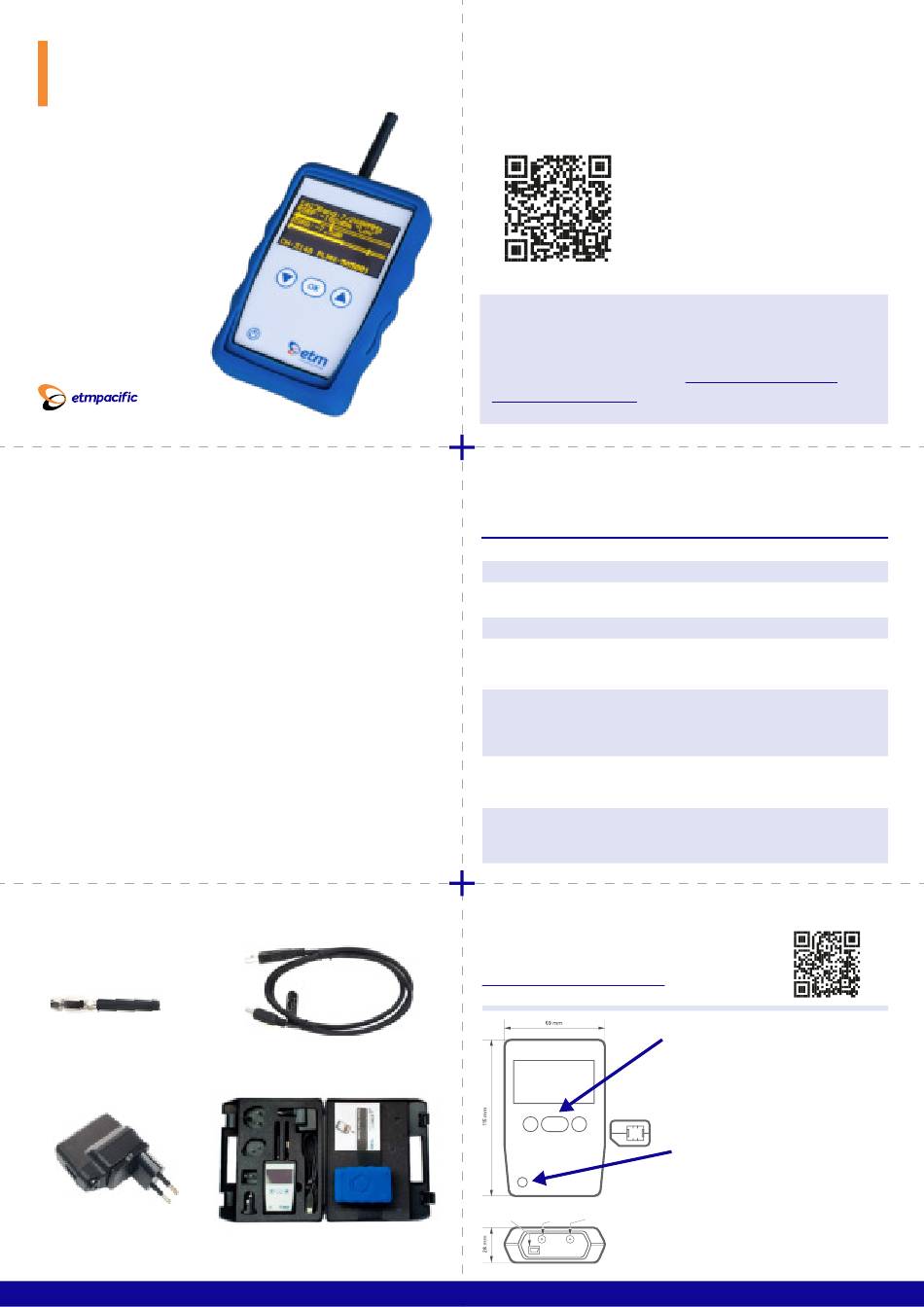

Quick Start Guide
ETM 770
CELLULAR SIGNAL
ANALYZER
INTRODUCTION
ETM770 is a handheld signal analyzer for cellular 2G/3G/4G
or 2G/Cat M1/Cat NB2 network measurements.
Common applications include:
•
Determine the best operator
•
Check signal strength & coverage
•
Send measured data to server
FEATURES
•
2G/3G/4G or 2G/LTE Cat M1/LTE Cat NB2 coverage
•
Monochrome OLED display
•
Rechargeable battery
•
Mini USB for programming and charging
•
Includes antenna, hard case and charger
ACCESSORIES
Antenna
Power Adapter
•
Check working IP connection
•
Select the best antenna
•
Check parameters like Lac, cell
USB to Mini USB
Adapter
Carrying case
Welcome to your ETM Product
Get started: This guide helps with initial product setup. Need more?
Find additional product information by simply scanning the QR code.
Support: ETM offers multiple support
options to help you get the most out of your
product. You can go onto etmpacific.com.au
or e-mail support@etmpacific.com.au.
If urgent, please call us using the numbers
below
ETM Pacific Pty Ltd (APAC)
Suite 20, 273 Alfred Street,
North Sydney NSW 2060, Australia
Tel: +61 (0)2 9956 7377 E-mail:
www.etmpacific.com.au
NETWORK COVERAGE
Model ETM770-LTE
Part.no 20543
Module Cinterion PLS62-W
GNSS -
2G 850/900/1800/1900MHz
3G 800/850/900/
AWS/1800/1900/2100 Mhz
(B1/B2/B4/B5/B8/B9/B19)
LTE 4G 700/800/850/900/
AWS/1800/1900/2100/2600 MHz
(B1/B2/B3/B4/B5/B7/B8/
B12/B18/B19/B20/B28)
Cat M1 -
Cat NB2
-
WANT A VIDEO USER GUIDE?
There is an ETM770 user guide available on
Youtube, use the link or scan the QR code to watch:
https://youtu.be/1PLVtn6GDLs
SIM
Primary
AUX Antenna
Mini USB
Antenna
sales@etmpacific.com.au
ETM770-IoT
20591
Quectel BG95-M3
GPS/GLONASS/BeiDou/
Galileo/QZSS
850/900/1800/1900MHz
-
-
B1/B2/B3/B4/B5/B8/B12/
B13/B18/B19/B20/B25/
B26/B27/B28/B66/B85
B1/B2/B3/B4/B5/B8/B12/
B13/B18/B19/B20/B25/
B28/B66/B71/B85
Buttons/Navigation
OK Button Action button/Forward navigation
Arrow Up Used for navigation
Backwards button
Arrow Down Used for Navigation
On/Off/Restart
Turn off
Hold power button (3s)
Sleep mode Hold power button more than (5s)
Restart Device Option 1:
Hold Arrow Up & Arrow Down (5s)
Option 2:
Navigate System > Restart Device
