Stainless Steel Pump
MODEL:
TPV-L
80879

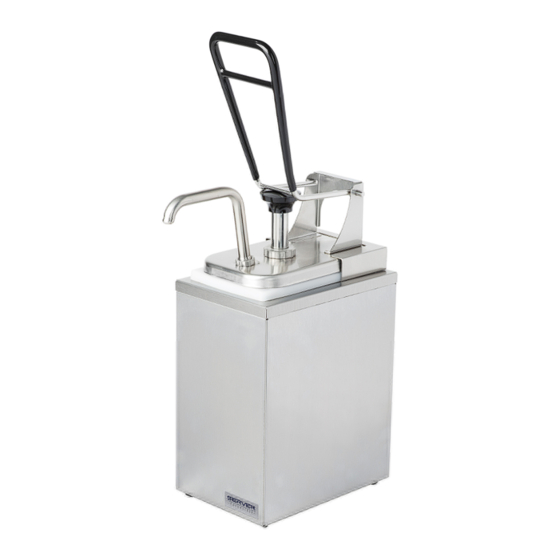

Fits a 3 ½ qt
fountain jar
Thank You
for purchasing our Thick Product Pump
with a lever to reduce the force required to serve
thick toppings. This quality NSF listed pump delivers
precise portions and lasts for years of service.
CONSISTENT PORTIONS—SERVE BETTER
Advertisement
Table of Contents
Related Manuals for Server TPV-L
Summary of Contents for Server TPV-L
- Page 1 Stainless Steel Pump MODEL: TPV-L 80879 Fits a 3 ½ qt fountain jar Thank You for purchasing our Thick Product Pump with a lever to reduce the force required to serve thick toppings. This quality NSF listed pump delivers precise portions and lasts for years of service.
- Page 2 PUMP 80879 PARTS KNOB PORTION CONTROL 82023-000 LOCKING COLLAR 82021 Gaging Collar(s) set the portion. 82022 LG COLLAR: 1/4 fl oz reduction 83529 SM COLLAR: 1/8 fl oz reduction HEAD TUBE Pump is preset to deliver 1/2 fl oz portions, 82017 using (2) 82022 Large Gaging Collars.
- Page 3 “Not acceptable for dispensing potentially Be aware of the product you are serving and the hazardous foods.” temperature the product is required to maintain. Server Products, Inc. cannot be responsible for the serving of potentially hazardous product. PUMP CLEANING FLUSH & RINSE YES! all pump surfaces with hot water.
- Page 4 CLEAN-IN-PLACE PROCEDURE FOR PUMPS CLEAN • Pump out all (if any) remaining food product from inside pump body. • Wash and rinse off outside of pump body. • Flush out and rinse inside of pump. • Place lower end of pump into container full of water and operate pump until all (if any) remaining product is expelled and only warm water flows from discharge...
- Page 5 DISASSEMBLY If pump has been in use, first rinse and flush pump. See PUMP CLEANING on page 3. During disassembly, collect small parts in a container to prevent loss. REMOVE PLUNGER & LID Turn locking collar (and discharge tube nut if used) counterclockwise to loosen and remove.
- Page 6 ASSEMBLY WASH ALL PARTS PROPERLY BEFORE EVERY USE. See page 3. PREPARE PISTON INSTALL SMALL O-RING into seal. INSTALL SEAL onto piston head. Apply food equipment lubricant to outside of seal. TIP: Flared end of seal should face away from piston head. SLIDE WASHER onto piston.
- Page 7 INSTALL LARGE O-RING into valve body. Apply food equipment lubricant on o-ring. INSTALL CYLINDER onto valve body. TILT wide edge of cylinder under nub on rim of valve body. FIT TABS on cylinder into corresponding notches in valve body. PRESS DOWN firmly and ROTATE cylinder clockwise to secure into slots.
- Page 8 SERVER PRODUCTS GENERAL SERVICE, LIMITED WARRANTY REPAIR OR RETURNS Before sending any item to Server Products for service, repair, or return, contact Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Typically, units are repaired and ship out within 48 hours of receipt.
