- Page 1 S C H M I D T c o n t r o l i n s t r u m e n t s Edition FS-422 01.2.E Series: FS-422 Model: FS1-422 FSP-422 FSH-422 Instruction Manual FSW-422 FSL-422 FSB1-422 Valid as of: 01.10.2016 • Please keep the manual for future reference! Software »Tension Inspect 3«...
-
Page 2: Table Of Contents
Contents 1 Warranty and liability ....................3 1.1 Notices within the instruction manual ..............3 1.2 Responsibilities of the operating company ............. 3 1.3 Responsibilities of the personnel ................3 1.4 Informal safety measures ..................4 1.5 Training of the personnel ..................4 1.6 Intended use ...................... -
Page 3: Warranty And Liability
Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device. -
Page 4: Informal Safety Measures
The device is intended exclusively to be used as a tension meter. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall Hans Schmidt & Co GmbH be held liable for damage resulting from misuse. -
Page 5: Available Models

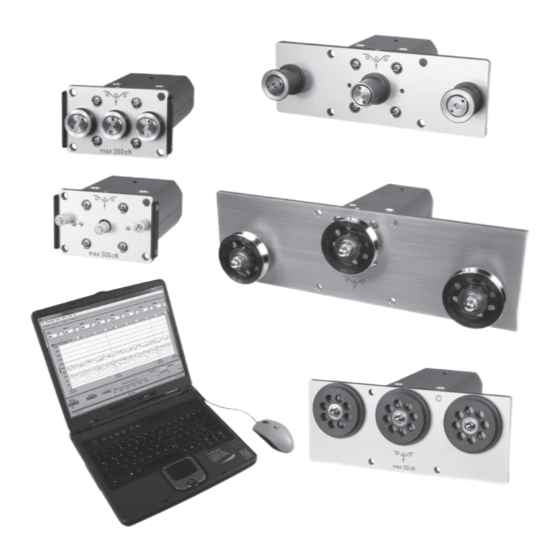

Available models General information These instruction manual refer to the FS1-422 model of the FS series; they are also applicable to the following models: FSP-422, FSH-422, FSW-422, FSL-422, FSB1-422 The individual models of the FS series are also available with the following modifications... -
Page 6: Available Fsp Models With Rs-422 Interface
1000 (FS1-500-422 and higher ranges) U-Groove Hard-coated aluminium 2000 Code U (FS1-500-422 and higher ranges) 2.1.2 Available FSP models with RS-422 interface Model with **Schmidt Tension *Measuring Head Tension Range Calibration Range [cN] Width [mm] Material FSP-100-422 0 - 100 PA: 0.12 mm Ø... -
Page 7: Available Fsh Models With Rs-422 Interface
2.1.3 Available FSH models with RS-422 interface Model with Tension *Measuring Head **Schmidt Tension Range Range [cN] Width [mm] Calibration Material FSH-1000-422 0 - 1000 PA: 0.30 mm Ø FSH-2000-422 0 - 2000 PA: 0.50 mm Ø FSH-5000-422 0 - 5000 PA: 0.80 mm Ø... -
Page 8: Available Fsl Models With Rs-422 Interface
* Outer dimensions of front plate. ** Suitable for 95% of applications. PA = Polyamide Monofilament Should the process material differ significant from the SCHMIDT calibration material in size, rigidity or shape, we recommend special calibration using customer supplied material. -
Page 9: Specifications Of The Fs-422 Series
Hans Schmidt & Co GmbH. Certification to the CE specification does not extend to, and shall be invalid for any other combina- tion. Under no circumstances shall Hans Schmidt & Co GmbH be held liable for any damage resulting from the use of non-SCHMIDT sensors or cables. -
Page 10: Delivery Includes
Hans Schmidt & Co GmbH provides no warranty or liability for self-made cables. The model number, the serial number, the calibration label (option) and the SCHMIDT Quality Seal are provided on the cylindrical portion of the sensor. -
Page 11: Connecting The Sensors
3.4 Connecting the sensors - Install the sensor in the desired position at the measuring location using the provided mounting holes (frontplate or housing). - Connect the sensor(s), the RS-422 / RS-232 converter, and the PC. fig. 3.4a Mounting holes front plate Mounting holes Housing... -
Page 12: Internal Adjustment Of The Sensors
If the material path is other than vertical or if the process material deviates significantly from the SCHMIDT calibration material, you need to carry out static zero and gain adjust- ment as described in chapters 3.5.1 and 3.5.2. -
Page 13: Zero Adjustment
3.5.1 Zero adjustment Mounting holes 4x Gain Zero Material path symbol Guide rollers 2x Measuring fig. 3.5a fig. 3.5b roller fig. 3.5c Weight - Install the sensor in the desired position at the measuring location using the provided mounting holes. - Allow approx. -
Page 14: Gain Adjustment
The question of finding the right frequency of calibration accuracy verification depends on several different factors: Operating time and load of the SCHMIDT tension meter Tolerance band defined by the customer Changes to the tolerance band compared to previous calibrations Therefore, the interval between verifications of calibration must be determined by the user’s Quality Assurance Department, based on the user’s experience. -
Page 15: Verification Of Calibration And Determination Of Repair Costs
6.1 Verification of calibration and determination of repair costs Flow chart for verifying the calibration of used tension meters, incoming and outgoing veri- fication with Inspection Certificate 3.1 according to DIN EN 10204 Delivery Visual inspection and functional test Unit can be Vertification of the calibrated calibration... -
Page 16: Correspondence
Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: Hans Schmidt & Co GmbH Schichtstr. 16 84478 Waldkraiburg Germany More than 75 years - Worldwide - Hans Schmidt &...
