SafeWaze FS870 Manual

FS870 / FS870N / FS870S
Reusable Roof Anchor
WARNING
This product is part of a personal fall arrest, work positioning, suspension or rescue system. The
manufacturer's instructions must be provided to users of this equipment. The user must follow the
manufacturer's instructions for each component of the system. The user must read and understand these
instructions before using this equipment. Manufacturer's instructions must be followed for proper use
and maintenance of this equipment. Alterations to this product, misuse of this product, or failure to follow
instructions may result in serious injury or death.
IMPORTANT
Questions regarding the use, care, or suitability of this equipment for your application? Contact
Safewaze.
IMPORTANT
Record identification information before using this product. Identification information may be found on
the equipment label. This information should be recorded in the "Inspection Log" located at the back of
this manual
OSHA 1926 Subpart M, ANSI Z359.1
This manual is intended to meet the manufacturer's instructions as required by
ANSI Z359 and should be used as part of an employee training program as required
by OSHA.
User Information
Date of First Use:
Serial#:
Trainer:
User:
Do not throw away these instructions!
Read and understand these instructions before using equipment!
INTRODUCTION
Thank you for purchasing a Safewaze Anchorage Connector. This manual must be read and understood
in its entirety, and used as part of an employee training program as required by OSHA or any applicable
state agency. This manual and any other instructional material must be available to the user of the
equipment. The user must understand how to safely and effectively use these anchors, and all fall
protection equipment used in conjuction with the anchor.
APPLICABLE SAFETY STANDARDS
When used according to instructions, SafeWaze Anchors meet all applicable ANSI Z359.1 standards
and OSHA regulations for fall protection. Applicable standards and regulations depend on the type of
work being done, and may include state-specific regulations. Refer to local, state, and federal (OSHA)
requirements for additional information concerning the governing of occupational safety
regarding Personal Fall Arrest Systems (PFAS).
WORKER CLASSIFICATIONS
Understand the definitions of those who work in proximity of or may be
exposed to fall hazards.
Qualified Person: "Qualified Person" means one who, by possession of a recognized degree,
certificate, or professional standing, or who by extensive knowledge, training, and experience, has
successfully demonstrated his ability to solve or resolve problems relating to the subject matter, the
work, or the project.
Competent Person: "Competent Person" means one who is capable of identifying existing and
predictable hazards in the surroundings or working conditions which are unsanitary, hazardous, or
dangerous to employees, and who has authorization to take prompt corrective measures to eliminate
them.
Authorized Person: "Authorized Person" means a person approved or assigned by the employer to
perform a specific type of duty or duties or to be at a specific location or locations at the job site.
It is the responsibility of a Qualified or Competent person to supervise the job site and
ensure safety regulations are complied with.
MANUAL - 870/870N/870S
PRODUCT SPECIFIC APPLICATIONS
Purpose: Safewaze Anchors are designed to be used as part of a Personal Fall Arrest System (PFAS).
- A competent person shall train users on this equipment in accordance with OSHA
and ANSI.
- Never exceed a free fall distance of 6 ft. A free fall of more than 6 ft could cause
excessive arrest forces that could result in serious injury or death.
- Safewaze Anchors have a maximum capacity of ANSI 310 lbs / OSHA 420 lbs
including any tools, clothing, accessories, etc..., unless otherwise rated by Safewaze.
- Structures for attachment of Safewaze Anchors shall support a minimum 5,000 lbs or
be designed with a safety factor of two by a Qualified Person.
- All Safewaze anchors must IMMEDIATELY be removed from service if subjected
to fall arrest forces.
- Safewaze anchors shall be inspected by the end user prior to each usage and
by a Competent Person other than the user at least annually. These inspections
shall be documented.
LIMITATIONS
Fall Clearance: There must be sufficient clearance below the anchorage connector to arrest a fall
before the user strikes the ground or an obstruction. When calculating fall clearance, account for a
MINIMUM 2' safety factor, deceleration distance, user height, length of lanyard/SRL, and all other
applicable factors. (See Figure 1)
(including all clothing, tools, and equipment) is 130-310 lbs
***Diagram shown is an example
fall clearance calculation ONLY.
Lanyard Length
Required
distance
Deceleration
from
distance (3.5' total)
Anchorage
(17.5' total)
Height of harness dorsal
worker's feet
Safety factor
Swing Falls: Prior to installation or use, make considerations for eliminating or minimizing all swing
fall hazards. Swing falls occur when the anchor is not directly above the location where a fall occurs.
Always work as close to in line with the anchor point as possible. Swing falls significantly increase
the likelihood of serious injury or death in the event of a fall. (See Figure 2)
COMPATIBILITY OF CONNECTORS
Connectors are compatible with connecting elements when they have been designed to work together
in such a way that their sizes and shapes do not cause their gate mechanisms to inadvertently open
regardless of how they become oriented. Connectors (hooks, carabiners, and D-rings) must be
capable of supporting at least 5,000 lbs. (22.2 kN). Connectors must be compatible with the anchorage
or other system components (see Figure 4). Do not use equipment that is not compatible.
Non-compatible connectors may unintentionally disengage (see Figure 3). Connectors must be
compatible in size, shape, and strength. Self-locking snap hooks and carabiners are required by ANSI
Z359 and OSHA guidelines. Contact Safewaze if you have any questions about compatibility
NOTE: SOME SPECIALITY CONNECTORS HAVE ADDITIONAL
REQUIREMENTS. CONTACT SAFEWAZE WITH QUESTIONS.
FIGURE 3 - UNINTENTIONAL DISENGAGEMENT
1 - Non Compliant Part
I I
225 Wilshire Ave SW, Concord NC, 28025 Phone: 800-230-0319
FIGURE 1
For all applications: worker weight capacity range
Fall Clearance Diagram
(6' Total)
D-ring from
(6' total)
(2' total)
FIGURE 2
A FALL-ARREST
.
4 - And parts
disengage.
3 - Gate opens
2 - Gate presses
against
non-compliant
part
I I
Fax: 704-262-9051 Email: info@safewaze.com
Using a connector that is undersized or irregular in shape (1) to connect a snap hook or carabiner could
allow the connector to force open the gate of the snap hook or carabiner. When force is applied, the gate
of the hook or carabiner presses against the non-compliant part (2) and forces open the gate (3). This
allows the snap hook or carabiner to disengage (4) from the connection point.
MAKING CONNECTIONS
Snap hooks and carabiners used with this equipment must be double locking and/or twist lock. Ensure
all connections are compatible in size, shape and strength. Do not use equipment that is not compatible.
Ensure all connectors are fully closed and locked.
Safewaze connectors (snap hooks and carabiners) are designed to be used only as specified in each
product's user's instructions. See figure 4 for examples of inappropriate connections. Do not connect
snap hooks and carabiners:
• To a D-ring to which another connector is attached.
• In a manner that would result in a load on the gate (with the exception of tie back hooks). NOTE:
Large snap hooks must not be connected to objects which will result in a load on the gate if the hook
twists or rotates. Snap hooks marked with ANSI Z359.12 and are equipped with a 3,600 lb (16 kN)
gate. Check the marking on your snap hook to verify its compatibility.
NOTE: Large throat snap hooks must not be connected to standard size D-rings or similar
objects which will result in a load on the gate if the hook or D-ring twists or rotates, unless
the snap hook complies with ANSI Z359.12 and is equipped with a 3,600 lb (16 kN) gate.
Check the marking on your snap hook to verify that it is appropriate for your application.
• In a false engagement, where features that protrude from the snap hook or carabiner catch on the
anchor, and without visual confirmation seems to be fully engaged to the anchor point.
• To each other.
• By wrapping the web lifeline around an anchor and securing to lifeline except as allowed for Tie Back
models.
• To any object which is shaped or sized in a way that the snap hook or carabiner will not close and
lock, or that roll-out could occur.
• In a manner that does not allow the connector to align properly while under load.
FIGURE 4 - INAPPROPRIATE CONNECTIONS
SPECIFIC ANCHOR APPLICATIONS
Personal Fall Arrest: Safewaze Anchors are designed as an anchor point to support
a maximum of 1 Personal Fall Arrest System (PFAS) when utilized for fall protection
applications. The structure to which the anchor is attached must withstand loads applied
in the directions permitted by the system of at least 5,000 lbs. Maximum allowable free
fall is 6'.
Restraint: Safewaze Anchors are authorized for use in Restraint
applications. The structure to which the anchor is attached must withstand loads applied
in the directions permitted by the system of at least 1,000 lbs NO free fall is permitted.
Restraint systems may only be used on surfaces with slopes up to 4 / 12 (vertical /
horizontal). For Restraint applications, the allowable attachment points to harness are
Dorsal D-ring, Chest D-ring, Side D-rings, and Shoulder D-rings.
Work Positioning: Safewaze Anchors are authorized for use in Work
Positioning applications. Work Positioning allows a worker to be supported during
suspension while freeing both hands to conduct work operations. The structure to which
the Anchor is attached must withstand loads applied in the directions permitted by the
system of at least 3,000 lbs. Maximum allowable free fall is 2'. For positioning
applications, the allowable attachment points to harness are the Side D-rings.
Rescue/Confined Space: Safewaze Anchors are authorized for use in Rescue/Confined
Space applications. Rescue systems are utilized to safely recover a worker from a
confined location or after exposure to a fall. Composition of rescue systems can vary
based upon the type of rescue involved. The structure to which the Anchor is attached
must withstand loads applied in the directions permitted by the system of at least 3,000
lbs. NO free fall is permitted. For rescue applications, the allowable attachment points to
harness are Dorsal D-ring, Chest D-ring and Shoulder D-rings.
All above referenced applications have a worker weight capacity range of
ANSI 310 lbs / OSHA Up to 420 lbs (including all clothing, tools, and equipment).
The FS870 version of the Reusable Roof Anchor does not include
fasteners. The FS870 can be installed on both wooden and steel
roofs. The required fasteners and installation instructions for both
types of substrates are indicated in Figures 5 -10 of this manual.
Fasteners used for installation must be the same or equivalent to
those indicated in these instructions.

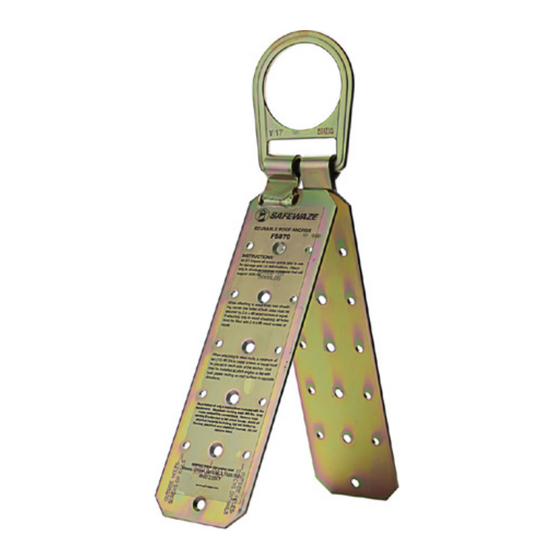

FS870
Reusable Hinged Roof Anchor
I
