SafeWaze FS813 Series Instruction Manual

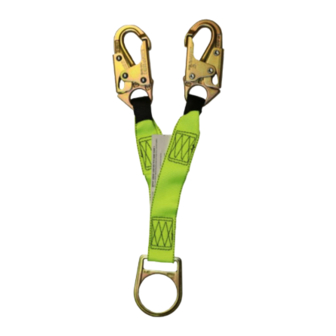

D-ring Extender
Instruction Manual
FS813 and FS814 Series
WARNING
This product is part of a personal fall arrest system. The manufacturer's instructions
must be provided to users of this equipment. The user must follow the manufacturer's
instructions for each component of the system. The user must read and understand
these instructions before using this equipment. Manufacturer's instructions must be
followed for proper use and maintenance of this equipment. Alterations to this product,
misuse of this product, or failure to follow instructions may result in serious injury or
death.
IMPORTANT
Questions regarding the use, care, or suitability of this equipment for your application?
Contact Safewaze.
IMPORTANT
Record identification information before using this product. Identification information
may be found on the equipment label. This information should be recorded in the
"Inspection Log" located at the back of this manual.
OSHA 1926 Subpart M, OSHA 1910.66, ANSI Z359.1
This manual is intended to meet the manufacturer's instructions
as required by ANSI Z359 and should be used as part of an
employee training program as required by OSHA.
User Information
Date of First Use:
Serial#:
Trainer:
User:
Do not throw away these instructions!
Read and understand these instructions before using equipment!
INTRODUCTION
Thank you for purchasing the Safewaze D-ring Extender. This manual must be read
and understood in its entirety, and used as part of an employee training program
as required by OSHA or any applicable state agency. This manual and any other
instructional material must be available to the user of the equipment. The user must
understand how to safely and effectively use the D-ring Extender, and all fall protection
equipment used in conjuction with the extender..
220-00029
APPLICABLE SAFETY STANDARDS
When used according to instructions, the D-ring Extender meets all applicable ANSI
Z359 standards and OSHA regulations for fall protection. Applicable standards and
regulations depend on the type of work being done, and may include state-specific
regulations. Refer to local, state, and federal (OSHA) requirements for additional
information concerning the governing of occupational safety regarding
Personal Fall Arrest Systems (PFAS).
WORKER CLASSIFICATIONS
Understand the definitions of those who work in proximity of or may be
Qualified Person: "Qualified" means one who, by possession of a recognized degree,
certificate, or professional standing, or who by extensive knowledge, training, and
experience, has successfully demonstrated his ability to solve or resolve problems
relating to the subject matter, the work, or the project.
Competent Person: "Competent person" means one who is capable of identifying
existing and predictable hazards in the surroundings or working conditions which are
unsanitary, hazardous, or dangerous to employees, and who has authorization to take
prompt corrective measures to eliminate them.
Authorized Person: "Authorized person" means a person approved or assigned by
the employer to perform a specific type of duty or duties or to be at a specific location
or locations at the job site.
It is the responsibility of a Qualified or Competent person to supervise the job
site and ensure safety regulations are complied with.
LIMITATIONS
Fall Clearance: There must be sufficient clearance below the anchorage connector to
arrest a fallbefore the user strikes the ground or an obstruction. When calculating fall
clearance, account for a MINIMUM 2' safety factor, deceleration distance, user height,
length of Lanyard/SRL, and all other applicable factors. (See Figure 1)
NOTE: THE USE OF A SAFEWAZE D-RING EXTENDER CAN INCREASE FALL
CLEARANCE. USER MUST ALLOW FOR THE LENGTH OF D-RING EXTENDER
WHEN CALCULATING FALL CLEARANCE
***Diagram shown is an example
fall clearance calculation ONLY.
(Original Working Length
prior to a fall event with energy
absorber deployment
Deceleration/Elongation
Required
distance (5' Total)
distance
from
Anchorage
(19' Total)
Height of harness dorsal
I I
225 Wilshire Ave SW, Concord NC, 28025 Phone: 800-230-0319
exposed to fall hazards.
FIGURE 1
For all applications: worker weight capacity range
(including all clothing, tools, and equipment) is
ANSI 130-310 lbs., OSHA 420 lbs.
Fall Clearance Diagram - Foot Level Tie-Off
Lanyard Length
(6' Total)
Harness Stretch
(1' Total)
D-ring from
worker's feet
(5' Total)
Safety factor
(2' Total)
I I
Fax: 704-262-9051 Email: info@safewaze.com
PRODUCT SPECIFIC APPLICATIONS
Purpose: The Safewaze D-ring Extender is designed to be used as part of a Personal
Fall Arrest System (PFAS).
- A competent person shall train users on this equipment in accordance
with OSHA and ANSI.
- Never exceed a free fall distance of 6 ft. A free fall of more than 6 ft
could cause excessive arrest forces that could result in serious injury or
death.
- The Safewaze D-ring Extender has a maximum capacity of ANSI
310 lbs including any tools, clothing, accessories, etc..., OSHA 420 lbs,
unless otherwise rated by Safewaze.
- All Safewaze D-ring extenders must IMMEDIATELY be removed from
service if subjected to fall arrest forces.
- Safewaze D-ring extenders shall be inspected by the end user prior to
each usage and by a Competent Person other than the user at least
annually. These inspections shall be documented.
Swing Falls: Prior to installation or use, make considerations for eliminating or
minimizing all swing fall hazards. Swing falls occur when the anchor is not directly
above the location where a fall occurs. Always work as close to in line with the anchor
point as possible. Swing falls significantly increase the likelihood of serious injury or
death in the even of a fall. (See Figure 2)
FIGURE 2
FALL-ARREST A
COMPATIBILITY OF CONNECTORS
Connectors are compatible with connecting elements when they have been designed
to work together in such a way that their sizes and shapes do not cause their
gate mechanisms to inadvertently open regardless of how they become oriented.
Connectors (hooks, carabiners, and D-rings) must be capable of supporting at least
5,000 lbs. (22.2 kN). Connectors must be compatible with the anchorage or other
system components (See Figure 4). Do not use equipment that is not compatible.
Non-compatible connectors may unintentionally disengage (See Figure 3). Connectors
must be compatible in size, shape, and strength. Self-locking snap hooks and
carabiners are required by ANSI Z359 and OSHA guidelines. Contact Safewaze if you
have any questions about compatibility.
NOTE: SOME SPECIALITY CONNECTORS HAVE ADDITIONAL
REQUIREMENTS. CONTACT Safewaze WITH QUESTIONS.
FIGURE 3 - UNINTENTIONAL DISENGAGEMENT
1 - Non Compliant Part
3 - Gate opens
2 - Gate presses
against
non-compliant
part
Using a connector that is undersized or irregular in shape (1) to connect a snap hook
or carabiner could allow the connector to force open the gate of the snap hook or
carabiner. When force is applied, the gate of the hook or carabiner presses against
the non-compliant part (2) and forces open the gate (3). This allows the snap hook or
carabiner to disengage (4) from the connection point.
MAKING CONNECTIONS
Snap hooks and carabiners used with this equipment must be double locking and/
or twist lock. Ensure all connections are compatible in size, shape and strength. Do
not use equipment that is not compatible. Ensure all connectors are fully closed and
locked.
Safewaze connectors (snap hooks and carabiners) are designed to be used only
as specified in each product's user's instructions. See figure 4 for examples of
inappropriate connections. Do not connect snap hooks and carabiners:
• To a D-ring to which another connector is attached.
• In a manner that would result in a load on the gate (with the exception of tie back
hooks).
• NOTE: Large snap hooks must not be connected to objects which will result in a
load on the gate if the hook twists or rotates. Snap hooks marked with ANSI Z359.12
and are equipped with a 3,600 lb (16 kN) gate. Check the marking on your snap
hook to verify its compatibility.
I
Web: safewaze.com
4 - And parts
disengage.
