User Manual
FS808
60', 80' AND 100'
PORTABLE ROPE HORIZONTAL
LIFELINE
Compliant with OSHA 1910, OSHA 1926 Subpart M
and ANSI A10.32
2010
V1.0 2017 Copyright SAFEWAZE ™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS808 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SafeWaze FS808

  • Page 1 User Manual FS808 60’, 80’ AND 100’ PORTABLE ROPE HORIZONTAL LIFELINE Compliant with OSHA 1910, OSHA 1926 Subpart M and ANSI A10.32 2010 V1.0 2017 Copyright SAFEWAZE ™...
  • Page 2: Table Of Contents

    7 COMPONENTS AND SPECIFICATIONS ..8 8 INSTALLATION AND USE ........ 9 9 UNINSTALL GUIDE ......... 10 10 FALL CLEARANCE CHART ......10 11 INSPECTION AND MAINTENANCE ....11 12 INSPECTION LOG .......... 12 12 LABELS ............13 Page 2 V1.0 2017 Copyright SAFEWAZE ™...
  • Page 3: Introduction & Scope Of Use

    OSHA or any applicable state agency. This manual and any other instructional material must be available to the user of the equipment. The user must understand how to safely and effectively use the FS808, and all fall protection equipment used in conjunction with the FS808.
  • Page 4: Applicable Safety Standards

    Product Specific Applications Personal Fall Arrest: SAFEWAZE™ FS808 Horizontal Lifelines can be used as part of a complete Personal Fall Arrest System (PFAS) for a maximum of 4 users (310 lbs/person 2-user maximum, 220 lbs/person 4-user maximum). The structure utilized for attachment must be capable of withstanding a load of 5,000 lbs in all directions permitted by the system.
  • Page 5: Limitations

    ***Diagram shown is an example fall clearance calculation ONLY. Lanyard Length (6’ Total) Required distance Deceleration from distance (4’ total) Anchorage (18’ total) Height of harness dorsal D-ring from worker’s feet (6’ total) Safety factor (2’ total) Page 5 V1.0 2017 Copyright SAFEWAZE ™...
  • Page 6: Compatibility Of Connections

    (see Figure 3). Connectors must be compatible in size, shape, and strength. Self-locking snap hooks and carabiners are required by ANSI Z359 and OSHA guidelines. Contact SAFEWAZE™ if you have any questions about compatibility. NOTE: SOME SPECIALITY CONNECTORS HAVE ADDITIONAL REQUIREMENTS.
  • Page 7 Ensure all connectors are fully closed and locked. SAFEWAZE™ connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user’s instructions. See figure 4 for examples of inappropriate connections.
  • Page 8: Components And Specifications

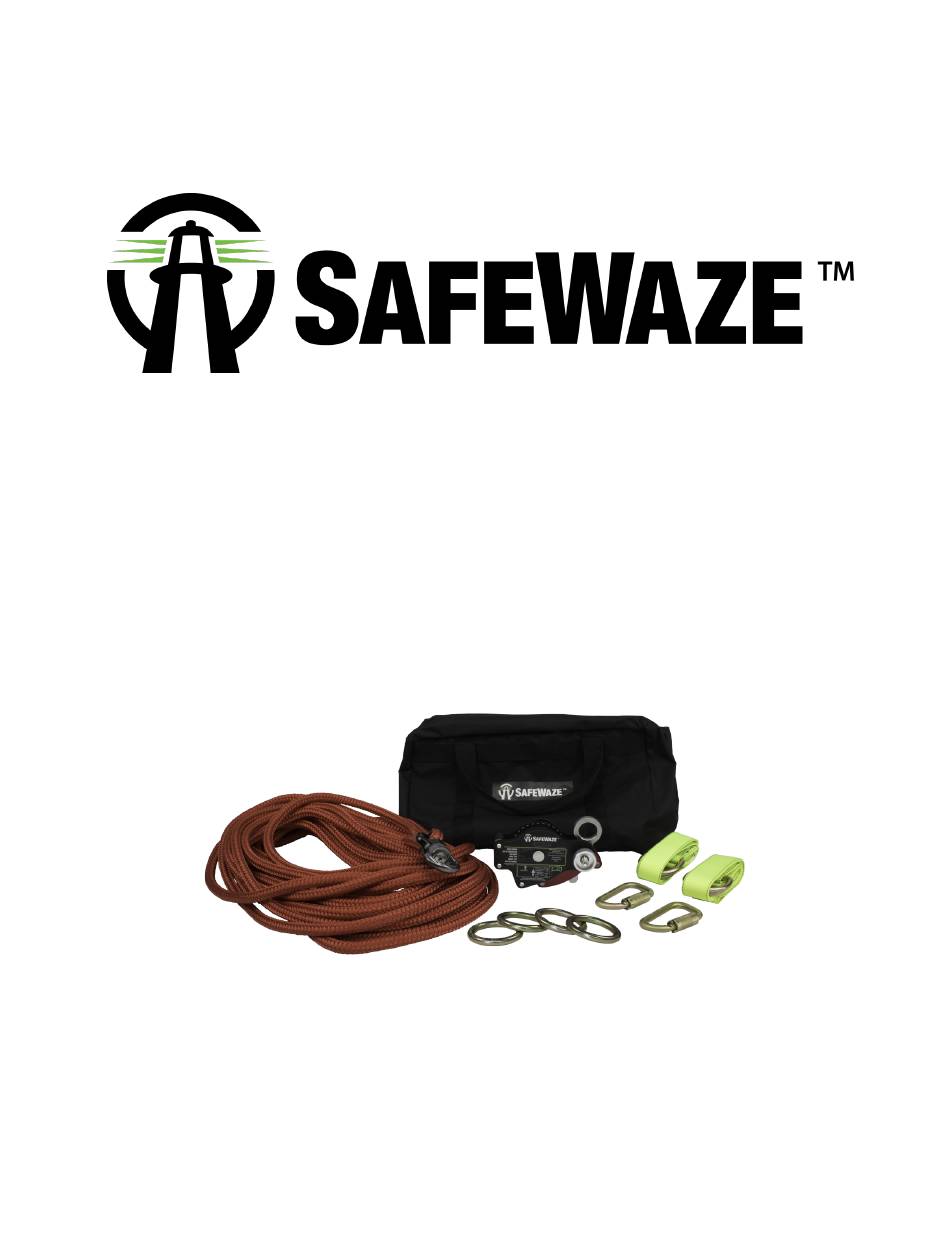

    User Manual FIGURE 4 - INAPPROPRIATE CONNECTIONS Components and Specifications Storage / Transport Bag Tensioner Cross Arm Straps Carabiners Rope Lifeline O-rings Page 8 V1.0 2017 Copyright SAFEWAZE ™...
  • Page 9: Installation And Use

    The sag of the lifeline should not exceed 4 in (100 mm). Housing Plate Drum of Tensioner Swivel Eye End of Rope to Anchorage Free End of Rope at Cam and Lever Tensioner Housing Plate Pins Page 9 V1.0 2017 Copyright SAFEWAZE ™...
  • Page 10: Uninstall Guide

    Sample Image of Installed Tensioner FS808 Fall Clearance Chart SAFEWAZE Required Clearance for up to 4 Users Maximum 100 ft span Fall Clearance with Fall Clearance with...
  • Page 11: Inspection And Maintenance

    NEVER ATTEMPT TO SERVICE THIS UNIT OR TAMPER WITH ITS FUNCTION IN ANY WAY! Storage When not installed, the SAFEWAZE™ FS808 Horizontal Lifeline should be stored in a cool, dry place out of direct sunlight. Do not store in areas where damage from environmental factors such as heat, light, excessive moisture, oil, chemicals and their vapors, or other degrading elements may be present.
  • Page 12: Inspection Log

    User Manual Inspection Log INSPECTED DATE CONDITION OF SYSTEM Page 12 V1.0 2017 Copyright SAFEWAZE ™...
  • Page 13: Labels

    User Manual Labels Page 13 V1.0 2017 Copyright SAFEWAZE ™...
  • Page 14 User Manual WARRANTY SAFEWAZE™ 322 Industrail Court Concord, NC 28025 PHONE: 1-704-262-7893 FAX: 1-704-262-9051 EMAIL: info@safewaze.com Web: safewaze.com V1.0 2017 Copyright SAFEWAZE ™...
