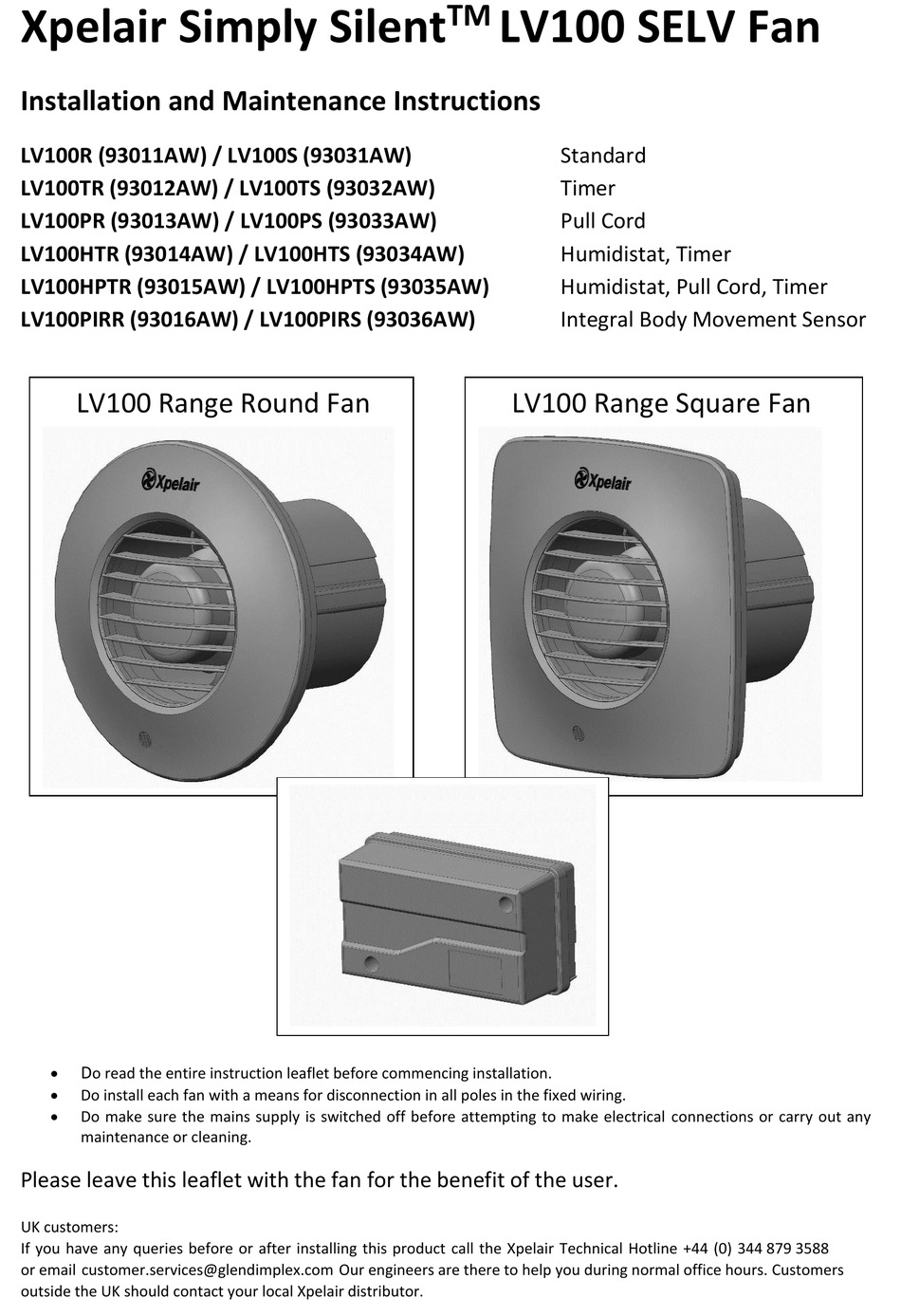

Xpelair Simply Silent
Installation and Maintenance Instructions
LV100R (93011AW) / LV100S (93031AW)
LV100TR (93012AW) / LV100TS (93032AW)
LV100PR (93013AW) / LV100PS (93033AW)
LV100HTR (93014AW) / LV100HTS (93034AW)
LV100HPTR (93015AW) / LV100HPTS (93035AW)
LV100PIRR (93016AW) / LV100PIRS (93036AW)

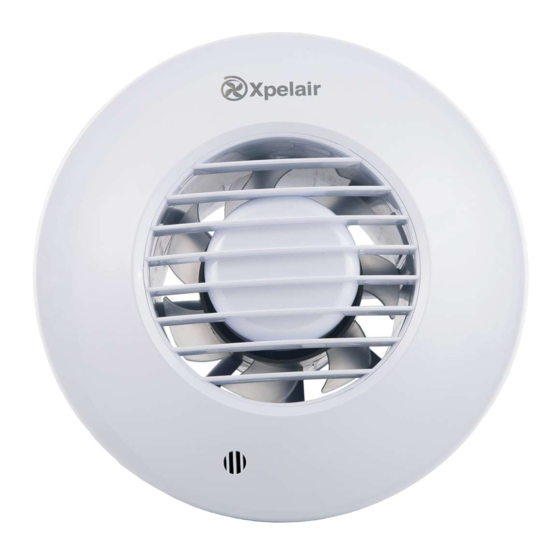

LV100 Range Round Fan
D
o read the entire instruction leaflet before commencing installation.
Do install each fan with a means for disconnection in all poles in the fixed wiring.
Do make sure the mains supply is switched off before attempting to make electrical connections or carry out any
maintenance or cleaning.
Please leave this leaflet with the fan for the benefit of the user.
UK customers:
If you have any queries before or after installing this product call the Xpelair Technical Hotline +44 (0)
outside the UK should contact your local Xpelair distributor.
TM
LV100 SELV Fan
Our engineers are there to help you during normal office hours. Customers
Standard
Timer
Pull Cord
Humidistat, Timer
Humidistat, Pull Cord, Timer
Integral Body Movement Sensor
LV100 Range Square Fan
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Xpelair Simply Silent LV100R
Summary of Contents for Xpelair Simply Silent LV100R
- Page 1 Please leave this leaflet with the fan for the benefit of the user. UK customers: If you have any queries before or after installing this product call the Xpelair Technical Hotline +44 (0) Our engineers are there to help you during normal office hours. Customers...
-
Page 2: Overall Dimensions (Mm)
Children shall not play with the appliance. Cleaning and maintenance of the appliance shall not be made by children. All Xpelair Simply Silent LV100 AC fans have the following features: Two speed extraction (selectable at installation) ... -
Page 3: Front Cover Removal
Back plate fixing positions Front Cover Removal Depress Cover Latch with tool & remove Cover... - Page 4 Factory settings: Timer 15 minutes, RH 75% Maximum 30 minutes Minimum 30 seconds...
-
Page 5: Wiring And Setting Up
Wiring and setting up... - Page 6 Wiring and setting up Where to locate the fan. Locate it as high as possible. At least 110mm from the edges of the mounting surface to the centre of the hole. As far away as possible from and opposite to the main source of air replacement to ensure airflow across the room (e.g.
-
Page 7: Installation
Appropriate ancillaries for termination. These items are available from Xpelair: 3m flexible ducting Ref: 89663AA. If the duct passes through a cold space use insulated duct ref: 89847AA. Soffit Grille Ref: 89742AW. - Page 8 For Australia Only – LV100R / LV100S / LV100PR / LV100PS / LV100PIRR / LV100PIRS Connection to the supply can be made by a flexible 2-core cable complete with 3 pin plug for insertion into an approved 10A GPO or directly wired through an approved 10A wall mounted surface switch with at least 3mm clearance between contacts. For Australia Only –LV100TR / LV100TS / LV100HTR / LV100HTS / LV100HPTR / LV100HPTS These models are permanently connected to the supply and operation is controlled by a remote switch.
- Page 9 Fan Settings. SPEED SETTING Fan speed is determined by the wiring on the Low Volt side of the transformer. Wire the 7-12V fan connection to the 7V terminal on the transformer for low speed, or the 12V transformer terminal for high speed. Alternately the fan can be wired with a change-over switch (as shown above –...
- Page 10 Wire the Transformer MAKE SURE THE MAINS SUPPLY IS ISOLATED 26. If surface mounting, route Low Volt (7V/12V ac) and mains supply cables through the appropriate knockouts into their respective compartments. When using the side entries a hole suitable for the cable size should be made centrally in the rectangular section.
- Page 11 This page has been left blank for the addition of any notes you may wish to make.
- Page 12 Telephone: +353 (0)1 8523400 Email: customer.services@glendimplex.com Email: serviceireland@glendimplex.com Web: www.xpelair.co.uk Warranty: Contact your local distributor or Xpelair direct for details. Technical advice and service: Contact your local Xpelair distributor. Xpelair: A brand of Glen Dimplex Hea�ng and Ven�la�on Part No: 25...
