(3)Model:GWHD(36)NK3BO GWHD(42)NK3BO

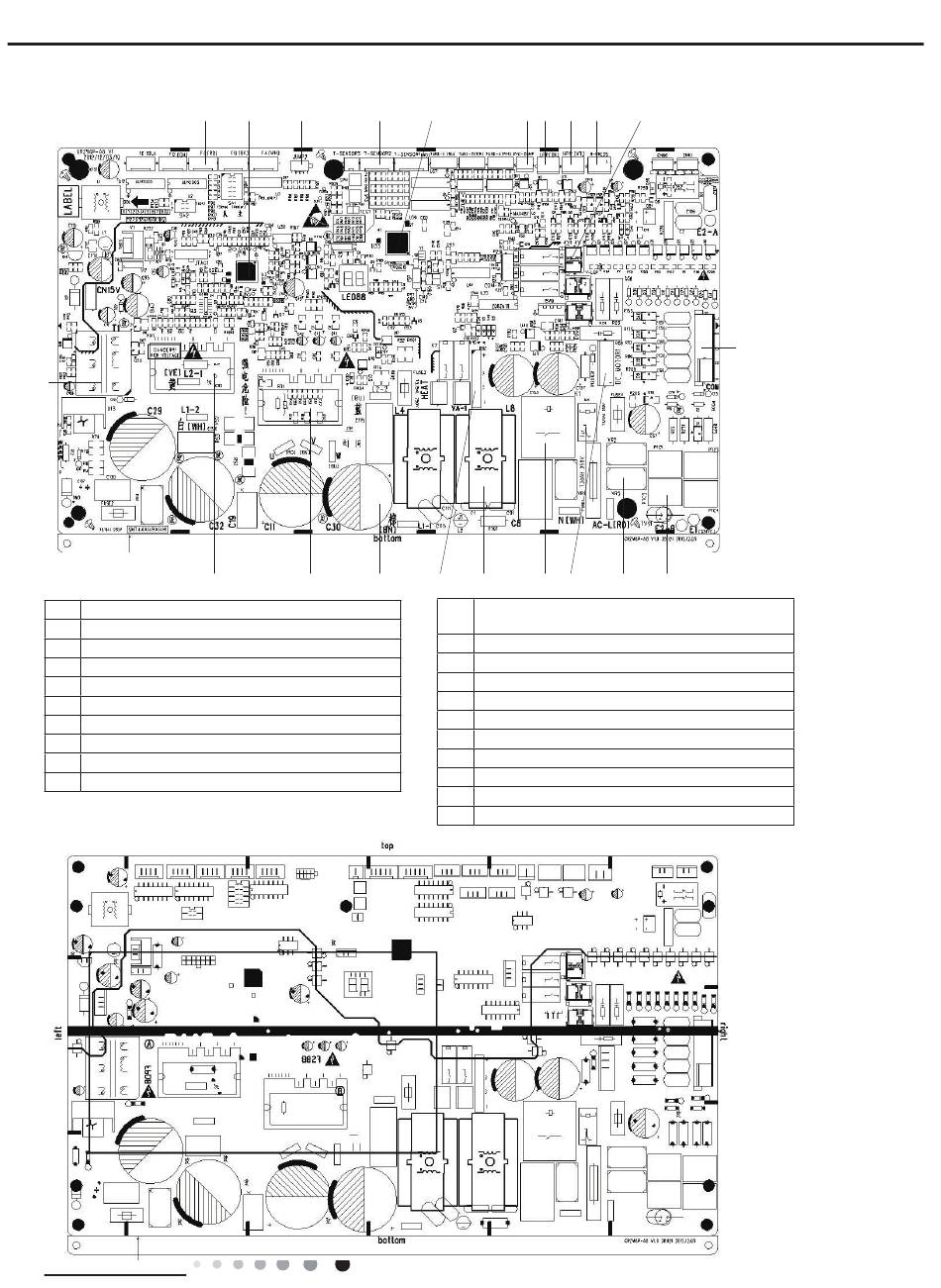

● Top view
21
1 Terminal of expansion valve
2 G-MatrikII chip
3 Jumper cap
4 Terminal of temperature sensor
5 STM8S207 chip
6 Overload protection terminal of compressor
7 Low-pressure protection terminal
8 Low-pressure switch 1
9 High-pressure switch 2
10 Terminal of 4-way valve
● Bottom view
Technical Information
1 2 3 4
20 19 18
5 6 7 8
9
17 16 15 14
11 Communication interface between indoor unit
and outdoor unit
12 PTC resistance
13 Piezoresistor
14 DC fan terminal
15 Relay
16 Common-mode induction
17 Rectifier
18 Electrolytic capacitor
19 IPM module
20 PFC module
21 Transformer
10
11
13 12
