Summary of Contents for Gree Trendy Series

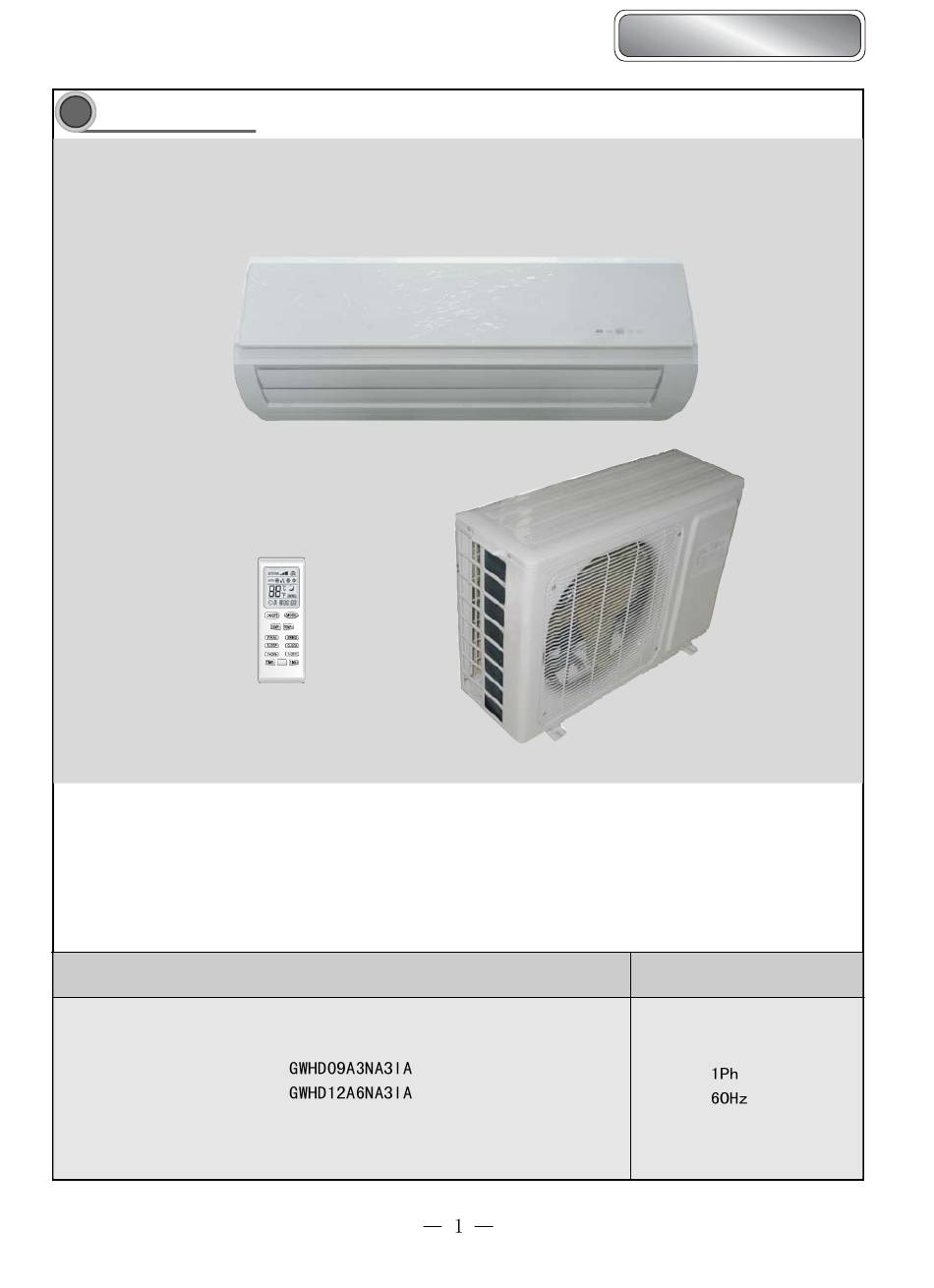

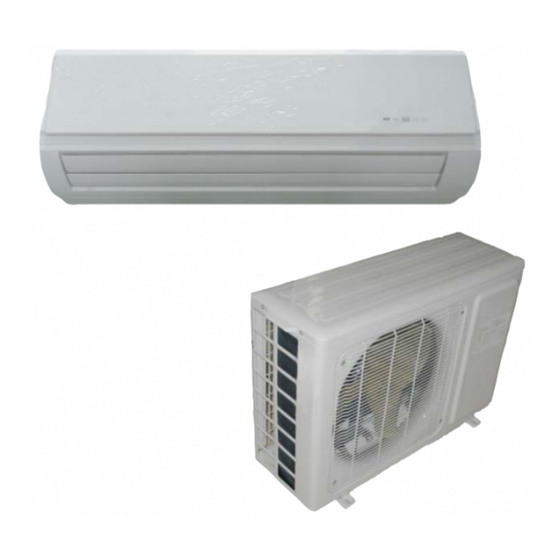

- Page 1 Trendy Series Summary and features CANCEL Model Remarks 115V R410A...
-
Page 2: Specifications And Technical Parameters
Specifications and technical parameters Model GWHD09A3NA3IA GWHD12A6NA3IA Function COOLING HEATING COOLING HEATING Rated Voltage 115V 115V Frequency(Hz) (High/Standard *) 60HZ 60HZ Total Capacity (W) (High/Standard 3100/2500 (W) 3800/2750 (W) 4100/3500 (W) 4400/3850 (W) Total Capacity (Btu/h) (High/ 10600/9000(Btu/h) 13000/9500(Btu/h) 14000/12000(Btu/h) 15000/13000(Btu/h) Standard *): Power Input (W) (High/ Standard*) 1250/730... - Page 3 Trendy Series Model of Outdoor Unit GWHD09A3NA3IA/O GWHD12A6NA3IA/O Compressor Manufacturer/trademark SANYO SANYO Compressor Model C-6RZ092H1AB C-6RZ092H1AB Compressor Type Twin rotory Twin rotory L.R.A. (A) Compressor RLA(A) 3.92 3.92 Compressor Power Input(W) Overload Protector Int11l-3979 Int11l-3979 Throttling Method Capillary throttling Capillary throttling...
- Page 4 Part name Indoor Unit Window receiver Outdoor Unit...
- Page 5 Trendy Series Overall and Installing Dimension O verall and Installing Dimension of Indoor Unit Air inlet grill Left piping hole Top view Right piping hole Unit:mm Rear view Wall-mounting plate...
- Page 6 O verall and Installing Dimension of Outdoor Unit Unit: mm Bolt Wrench...
-
Page 7: Circuit Diagram
Trendy Series Circuit Diagram These circuit diagrams are subject to change without notice. Please refer to the ones stuck on the machines. - Page 8 Manual of functions of remote controller and operation method Manual of functions of remote controller This manual is applicable to DC inverter Trendy Series: GWHD09A3NA31A, GWHD12A6NA31A. The centigrade is used for the following function manual, if there will be the Fahrenheit degree, that will be TF=TCX1.8+32.
- Page 9 Trendy Series When Tamb. Tpreset 2 , the compressor will be stopped, and outdoor fan will be stopped after 30 seconds,the indoor fan will run at low speed. Under this mode, the switchover valve will not be powered on, and the setting temperature range is 16 ~30 Tpreset Tamb.
-
Page 10: Overload Protection
Protection function in each mode Overload protection When tube temp. is detected high, the compressor runs in limited frequency or slow-frequency. When the temp. is over standard, then compressor stop running. In auto Heat or Heat mode, the indoor fan will blow for 60s and then stop. In other modes, the indoor fan will run at the setting speed. - Page 11 Trendy Series Swing control It could be operated by the remote control to operate the on/off of swing button, swing is only valid when the indoor fan is running. After powered on, the stepping motor rotate to 0 position, to turn off the air outlet vent; After unit is turned on, it returns to the max.
-
Page 12: Disassembly Procedures
Disassembly procedures 7 7 7 7 7 Disassembly procedures for indoor unit Operation procedures/pictures Disassembling the front panel and electric box cover Unloose the clasps on both sides and lift the panel upward. Unplug the two connecting terminals of the display and slide out the rear clasp from the groove to take off the front panel.(you can use panel support bar to support the panel) Screw off the fixing screws of... - Page 13 Trendy Series Operation procedures/pictures Disassembling the front panel body Unclench the 3 screw covers and screw off the 3 pieces of screws that fix the panel body. Unloose the front and rear clasps to take off the panel body. screw covers...
- Page 14 Operation procedures/pictures Disassembling the electric box Tube sensor Screw off the two pieces of screws that fix the electric Screws box and unloose the clasp. Pull out the tube sensor, unloose the grounding nut and unplug the motor Grounding nut connecting terminal take out the electric box.
- Page 15 Trendy Series Disassembly Procedures for Outdoor Unit Operating Procedures / Photos Disassemble Top Cover Handle Use screw driver screw off 3pcs screw fixing on the screw handle, then can take down the handle. Screw off 3pcs screw around the top cover then can take down the top cover.
- Page 16 Operating Procedures / Photos Disassemble electric install plate Screw out the 3 bolts that fixing on electric install electric box cover plate, plug out lead inserter of compressor and fan to take off electric install plate. bolts Disassemble Right Side Plate Screw out the 5 bolts on rear side plate can take off right side plate.
- Page 17 Trendy Series Operating Procedures / Photos Disassemble Motor and Motor Support Motor Support Unscrew the four tapping screws fixing the motor, and remove the motor. Unscrew the two tapping tapping screws screws fixing the motor support, and lift the motor support to remove it.
- Page 18 Operating Procedures / Photos Disassemble valves Unscrew the two screws fixing the big valve, unsolder the soldering point between the big valve and the return-air duct and remove the big small valve valve. (Note: when unsoldering the soldering point, use wet cloth to completely wrap the big valve to prevent valve body from being harmed by high temperature.)
- Page 19 Trendy Series Exploded View and Components and Parts List Exploded View of Indoor Unit...
- Page 20 Components and Parts List of Indoor Unit Part Code Description GWHD09A3NA3IA/I Wall-Mounting Frame 01252220 Rear Case 222020012 Pipe Clamp 24242001 Evaporator Assy 01002070 Cross Flow Fan 10352001 Ring of Bearing 76512203 Water Tray 20182070 Pendular Lever 10582408 Pendular Lever 10542004 Pendular Lever 10542005 Pendular Clamp...
- Page 21 Trendy Series Exploded View of Components and Parts of Indoor Unit...
- Page 22 Components and Parts List of Indoor Unit Part Code Description GWHD12A6NA3IA/I Wall-Mounting Frame 01252384 Rear Case 22202050 Evaporator Assy 010021811 Cross-Flow Fan 10352005 Ring of Bearing 76712015 Drainage Pipe 0523001401 Water Tray 201820302 Swing Louver 10512041 Swing Linkage 10582439 Front Grill 01472004 Front Case 20002295...
- Page 23 Trendy Series Exploded View of Outdoor Unit...
- Page 24 Components and Parts List of Outdoor Unit Part Code Description GWHD09A3NA3IA/O GWHD12A6NA3IA/O Front Panel 01533007 01533007 Clap Board 01233025 01233025 Drainage Connecter 06123401 06123401 Reactor Support Assy 01203102 01203102 Overload Protector 00183003 00183003 Compressor C- 00102004 00102004 6RZ092H1AB Bolt 70210007 70210007 Compressor Gasket 76710236...
-
Page 25: Troubleshooting
Trendy Series 9 9 9 9 9 Troubleshooting Trouble shooting 1 Analysis in this section is used for Linge Wind D.C. Variable Frequency Series. Before analysis, you can diagnose according to the code displayed on indoor unit or indicator display on outdoor unit. (Refer to Malfunction display section). - Page 26 Adjust the set temperature Improper setting of temperature Whether cooling (heating) loa Check the estimated load of cooling (heating) is proper Vacuumize after leakage detection and leakage repair. Charge refrigerant Leakage or shortage of refrigerant according to specification. Leakage occurs between high and Replace the compressor low pressure inside compressor Malfunction of...
- Page 27 Trendy Series Check the circuit according to circuit diagram Abnormal power supply of outdoor unit When unit is Damage of outdoor main control board Replace the main control board cooling or heating, both compressor a nd outdoor fan don't Replace the power module...
- Page 28 Blockage or breakage of drainage hose Replace the drainage hose Water leakage Wrap of refrigerant pipe connector is not Re-wrap and make it tight tight enough Fan of indoor unit contacts other parts Adjust fan location Take out the foreign substance There is foreign substance in indoor unit Adjust support washer of the compressor and Compressor shakes too much...
- Page 29 Trendy Series Malfunction display section Linge Wind D.C. Variable Frequency Series When malfunction or protection occurs in the air conditioner, corresponding code will be displa yed on the screen of the indoor unit and the indicator of outdoor unit will blink accordingly as well.
- Page 30 2.Analysis or handling of some of the malfunction display: 1. Compressor discharge protection Possible reasons: shortage of refrigerant; blockage of air filter; poor ventilation or air flow short pass for condenser; the system has noncondensing gas (such as air, water etc.); blockage of capillary assy (including filter);...
- Page 31 Trendy Series Module protection: Handling method: Check if the voltage between power module P and N is too low and if the current is too high. In normal condition, voltage between P and N should be about 370V. Abnormal Check power supply circuit of outdoor unit...
