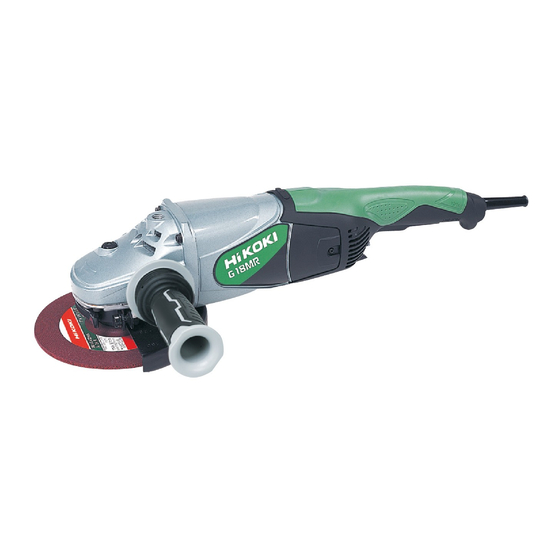

Disc Grinder
Model G 18MR • G 23MR
G 23MRU
Handling instructions
NOTE:
Before using this Electric Power Tool, carefully read through these
HANDLING INSTRUCTIONS to ensure efficient, safe operation. It
is recommended that these INSTRUCTIONS be kept readily
available as an important reference when using this power tool.
G23MR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 18MR and is the answer not in the manual?

Questions and answers

Related Manuals for HIKOKI G 18MR

Summary of Contents for HIKOKI G 18MR

  • Page 1 Disc Grinder Model G 18MR • G 23MR G 23MRU Handling instructions G23MR NOTE: Before using this Electric Power Tool, carefully read through these HANDLING INSTRUCTIONS to ensure efficient, safe operation. It is recommended that these INSTRUCTIONS be kept readily...
  • Page 2 17. Avoid unintentional starting. Do not carry a plugged- GENERAL OPERATIONAL PRECAUTIONS in tool with a finger on the switch. Ensure switch is off when plugging in. WARNING! When using electric tools, basic safety 18. Use outdoor extension leads. When tool is used precautions should always be followed to reduce the outdoors, use only extension cords intended for risk of fire, electric shock and personal injury, including...
  • Page 3 SPECIFICATIONS Model G18MR G23MR G23MRU Voltage (by areas)* (110V, 220V, 230V, 240V) Input* 2400 W No-load speed 8500/min 6600/min Outer dia. 180 mm 230 mm Wheel Inner dia. 22 mm Peripheral speed 80 m/s Weight* 5.4 kg Starting current limiter* *1 Be sure to check the nameplate on product as it is subject to change by areas.
  • Page 4 6. Conducting a trial run 5. Precautions immediately after finishing operation Ensure that the abrasive products is correctly mounted After switching off the machine, do not put it down and tightened before use and run the tool at no-load until the depressed center wheel has come to a for 30 seconds in a safe position, stop immediately if complete stop.
  • Page 5 For your continued safety and electrical shock HiKOKI Power Tools are constantly being improved protection, carbon brush inspection and replacement and modified to incorporate the latest technological on this tool should ONLY be performed by a HiKOKI advancements. Authorized Service Center. 4. Replacing supply cord Accordingly, some parts may be changed without prior notice.
  • Page 7 Item Item Part Name Part Name SEAL LOCK SCREW M5 × 14 BRUSH COVER TAPPING SCREW (W/FLANGE) D4 × 16 SPRING WASHER HEX. SOCKET HD. BOLT (W/FLANGE) D5 × 30 CARBON BRUSH PUSHING BUTTON HANDLE (B) BRAND SPRING LABEL GEAR COVER ASS’Y BRUSH HOLDER SPECIAL NUT BEARING LOCK...
  • Page 8 Hitachi Koki Co., Ltd. Code No. C99126112 Printed in Malaysia...

This manual is also suitable for:

G 23mrG 23mru
