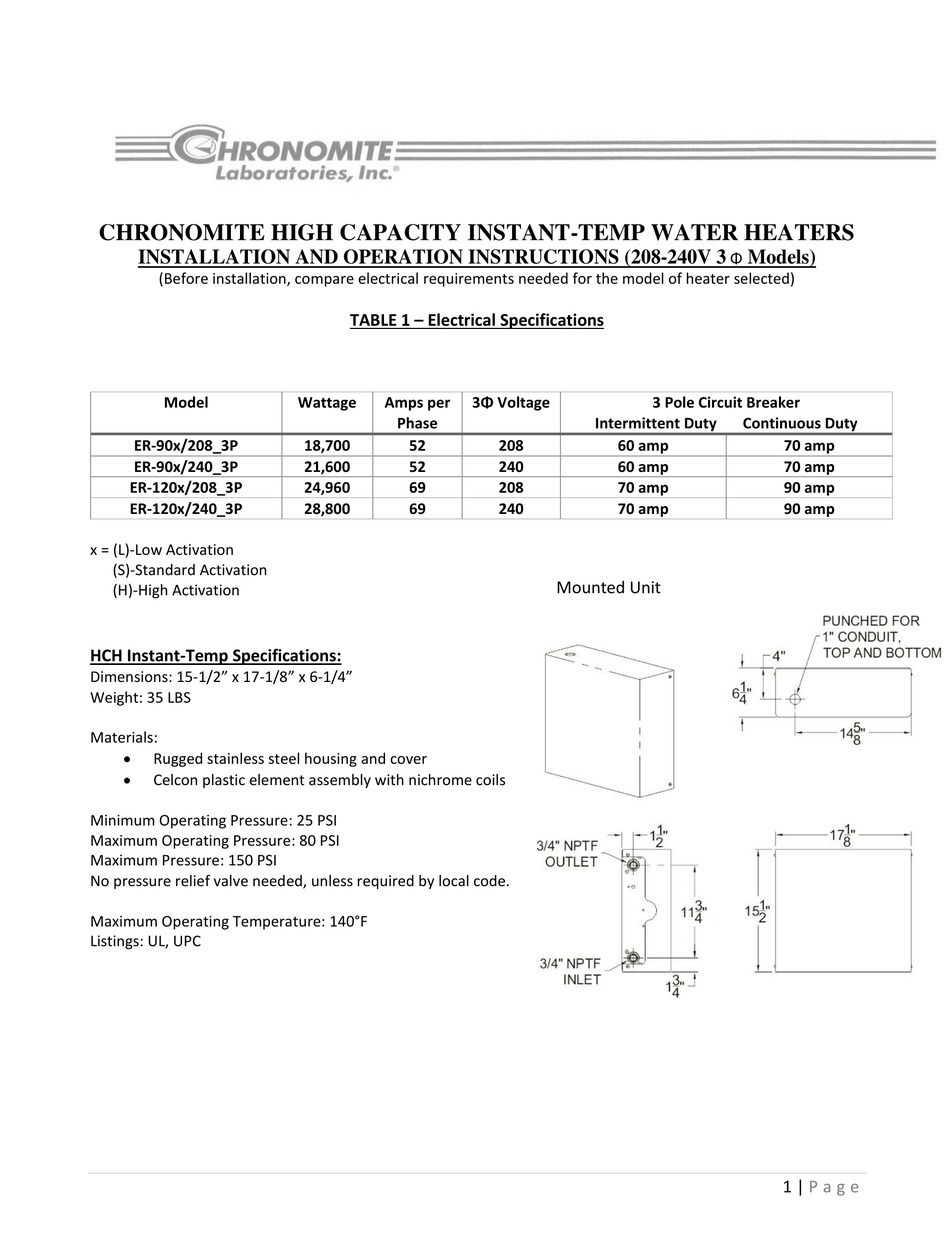

CHRONOMITE HIGH CAPACITY INSTANT-TEMP WATER HEATERS
INSTALLATION AND OPERATION INSTRUCTIONS (208-240V 3
(Before installation, compare electrical requirements needed for the model of heater selected)
Model
ER-90x/208_3P
ER-90x/240_3P
ER-120x/208_3P
ER-120x/240_3P
x = (L)-Low Activation
(S)-Standard Activation
(H)-High Activation
HCH Instant-Temp Specifications:
Dimensions: 15-1/2" x 17-1/8" x 6-1/4"
Weight: 35 LBS
Materials:
Rugged stainless steel housing and cover
Celcon plastic element assembly with nichrome coils
Minimum Operating Pressure: 25 PSI
Maximum Operating Pressure: 80 PSI
Maximum Pressure: 150 PSI
No pressure relief valve needed, unless required by local code.
Maximum Operating Temperature: 140°F
Listings: UL, UPC
TABLE 1 – Electrical Specifications
Wattage
Amps per
3Φ Voltage
Phase
18,700
52
21,600
52
24,960
69
28,800
69
3 Pole Circuit Breaker
Intermittent Duty
208
60 amp
240
60 amp
208
70 amp
240
70 amp
Mounted Unit
Models)
Φ
Continuous Duty
70 amp
70 amp
90 amp
90 amp
1 |
P a g e
