CHRONOMITE HIGH CAPACITY INSTANT-TEMP WATER HEATERS
INSTALLATION AND OPERATION INSTRUCTIONS (208-240V Models)
(Before installation, compare electrical requirements needed for the model of heater selected)
2 Module Heaters (60-80 amp)
Model Wattage
ER-60x/208_12500 12,500
ER-60x/240_14400 14,400
ER-80x/208_16600 16,600
ER-80x/240_19200 19,200
3 Module Heaters (90-120 amp)
Model Wattage
ER-90x/208_18700 18,700
ER-90x/240_21600 21,600
ER-120x/208_25000 25,000
ER-120x/240_28800 28,800
x = (L)-Low Activation
(S)-Standard Activation
(H)-High Activation

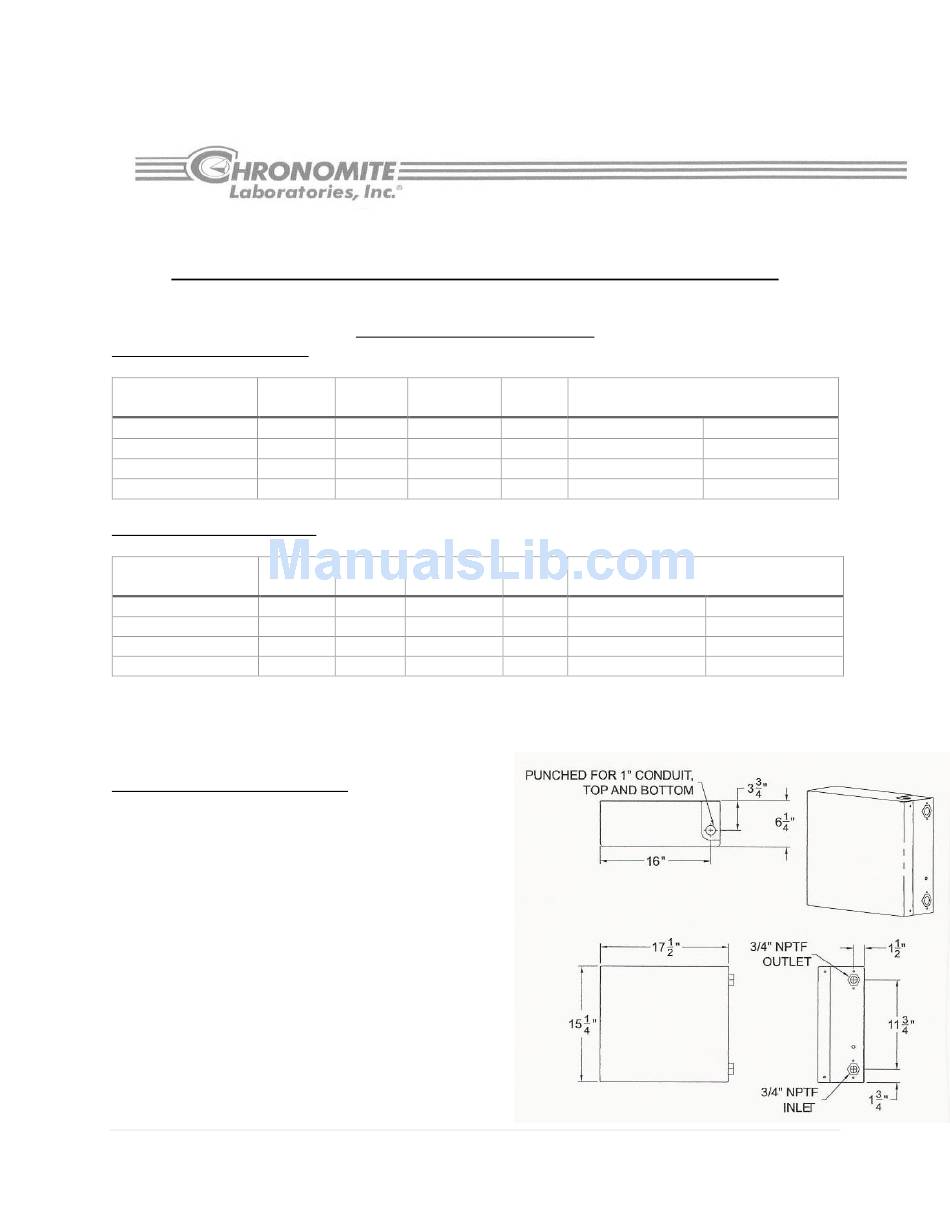

HCH Instant-Temp Specifications:
Dimensions: 15-1/4" x 17-1/2" x 6-1/4"
Weight: 24 LBS (2 module) / 26 LBS (3 module)
Materials:

Rugged steel housing and cover

Celcon plastic element assembly with nichrome
coils
Minimum Operating Pressure: 25 PSI
Maximum Operating Pressure: 80 PSI
Maximum Pressure: 150 PSI
No pressure relief valve needed, unless required by local
code.
Maximum Operating Temperature: 140°F
Listings: UL, UPC
TABLE 1 – Electrical Specifications
Total 1Φ Voltage Circuits
Amps
60 208 2
60 220-240 2
80 208 2
80 220-240 2
Total 1Φ Voltage Circuits
Amps
90 208
90 220-240
120 208
120 220-240
Double Pole Circuit Breakers
Intermittent Duty
Qty 2 x 30 amp
Qty 2 x 30 amp
Qty 2 x 40 amp
Qty 2 x 40 amp
Double Pole Circuit Breakers
Intermittent Duty
3 Qty 3 x 30 amp
3 Qty 3 x 30 amp
3 Qty 3 x 40 amp
3 Qty 3 x 40 amp
Continuous Duty
Qty 2 x 40 amp
Qty 2 x 40 amp
Qty 2 x 50 amp
Qty 2 x 50 amp
Continuous Duty
Qty 3 x 40 amp
Qty 3 x 40 amp
Qty 3 x 50 amp
Qty 3 x 50 amp
Mounted Unit
