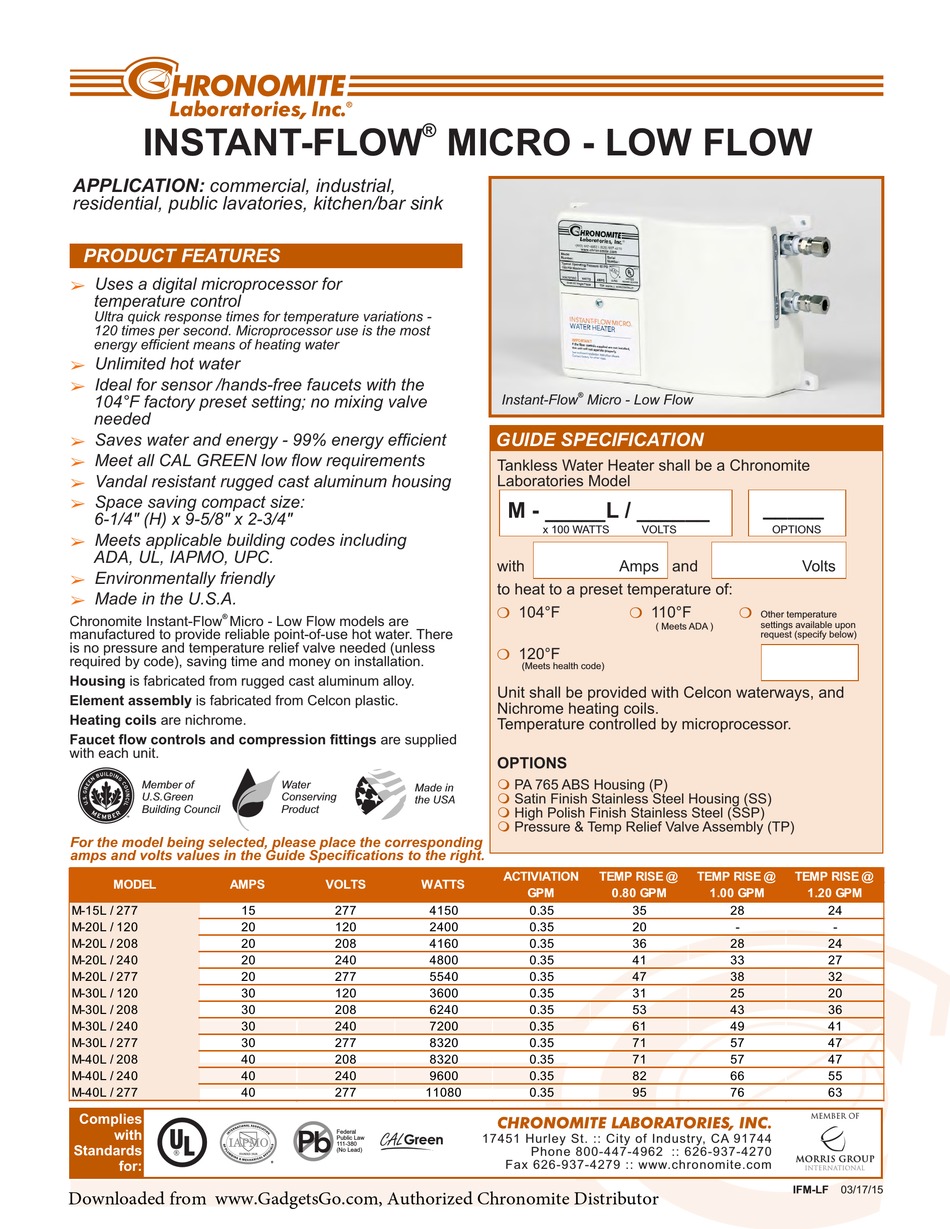

INSTANT-FLOW MICRO - LOW FLOW
APPLICATION: commercial, industrial,
residential, public lavatories, kitchen/bar sink

PRODUCT FEATURES

Uses a digital microprocessor for
â
temperature control
Ultra quick response times for temperature variations -
120 times per second. Microprocessor use is the most
energy efficient means of heating water
Unlimited hot water
â
Ideal for sensor /hands-free faucets with the
â
104°F factory preset setting; no mixing valve
needed
Saves water and energy - 99% energy efficient
â
Meet all CAL GREEN low flow requirements
â
Vandal resistant rugged cast aluminum housing
â
Space saving compact size:
â
6-1/4" (H) x 9-5/8" x 2-3/4"
Meets applicable building codes including
â
ADA, UL, IAPMO, UPC.
Environmentally friendly
â
Made in the U.S.A.
â
®
Chronomite Instant-Flow Micro - Low Flow models are
manufactured to provide reliable point-of-use hot water. There
is no pressure and temperature relief valve needed (unless
required by code), saving time and money on installation.
Housing is fabricated from
rugged cast aluminum alloy.
Element assembly is fabricated from Celcon plastic.
Heating coils are nichrome.
Faucet flow controls and compression fittings are supplied
with each unit.
Member of
U.S.Green
Building Council
For the model being selected, please place the corresponding
amps and volts values in the Guide Specifications to the right.
MODEL
AMPS
M-15L / 277
15
M-20L / 120
20
M-20L / 208
20
M-20L / 240
20
M-20L / 277
20
M-30L / 120
30
M-30L / 208
30
M-30L / 240
30
M-30L / 277
30
M-40L / 208
40
M-40L / 240
40
M-40L / 277
40
Complies
with
Standards
for:
Downloaded from www.GadgetsGo.com, Authorized Chronomite Distributor
®
Water
Made in
Conserving
the USA
Product
VOLTS
WATTS
277
4150
120
2400
208
4160
240
4800
277
5540
120
3600
208
6240
240
7200
277
8320
208
8320
240
9600
277
11080
Federal
Public Law
111-380
(No Lead)
®
Instant-Flow Micro - Low Flow
GUIDE SPECIFICATION
Tankless Water Heater shall be a Chronomite
Laboratories Model
M - _____L / ______
x 100 WATTS
VOLTS
with
Amps and
to heat to a preset temperature of:
104°F
110°F
m
m
( Meets ADA )
m
120°F
(Meets health code)
Unit shall be provided with Celcon waterways, and
Nichrome heating coils.
Temperature controlled by microprocessor.
OPTIONS
m
PA 765 ABS Housing (P)
m
Satin Finish Stainless Steel Housing (SS)
m
High Polish Finish Stainless Steel (SSP)
m
Pressure & Temp Relief Valve Assembly (TP)
ACTIVIATION
TEMP RISE @
GPM
0.80 GPM
0.35
35
0.35
20
0.35
36
0.35
41
0.35
47
0.35
31
0.35
53
0.35
61
0.35
71
0.35
71
0.35
82
0.35
95
17451 Hurley St. :: City of Industry, CA 91744
Phone 800-447-4962 :: 626-937-4270
Fax 626-937-4279 :: www.chronomite.com
_____
OPTIONS
Volts
m
Other temperature
settings available upon
request (specify below)
TEMP RISE @
TEMP RISE @
1.00 GPM
1.20 GPM
28
24
-
-
28
24
33
27
38
32
25
20
43
36
49
41
57
47
57
47
66
55
76
63
IFM-LF
03/17/15
