INSTANT-FLOW SR - STANDARD FLOW
APPLICATION: commercial, industrial,
residential, lavatory, shower, kitchen/bar sink,
service sink, scrub sink

PRODUCT FEATURES

Unlimited hot water
â
Saves water and energy - 99% energy efficient
â
Vandal resistant rugged cast aluminum housing
â
Space saving compact size:
â
6-1/4" (H) x 9-5/8" x 2-3/4"
(159 (H) x 244 x 70mm)
Meets applicable building codes
â
including ADA, UL, IAPMO, UPC, CSA.
Environmentally friendly
â
Made in the U.S.A.
â

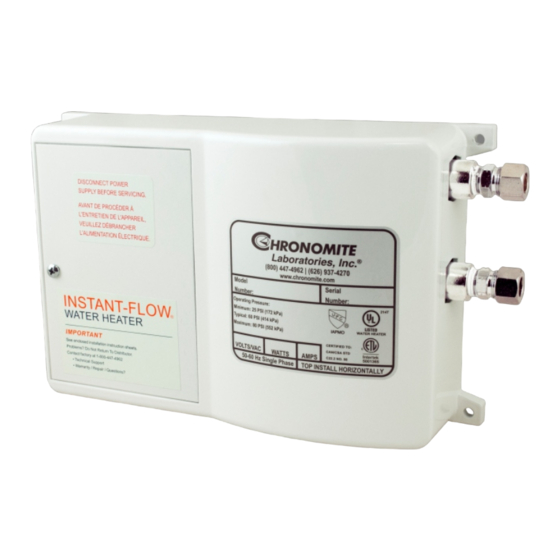

Chronomite Instant-Flow SR- Standard Flow models are
manufactured to provide reliable point-of-use hot water.
There is no pressure and temperature relief valve
needed (unless required by code), saving time and
money on installation.
Housing is fabricated from rugged cast aluminum alloy.
Element assembly is fabricated from Celcon plastic.
Heating coils are nichrome.
Faucet flow controls are supplied with each unit. 3/8"
compression fittings are supplied (standard). Optional
1/2" and 3/4" male NPT water connections available.
Member of
U.S.Green
Building Council
For the model being selected, please place the
corresponding amps, volts and temperature rise values
in the Guide Specifications to the right.
MODEL AMPS
SR-30/208
SR-30/240
SR-30/277
SR-40/208
SR-40/240
Complies LISTED TO:
UL STD 499
with
Standards
CERTIFIED TO:
for:
CAN/CSA STD C22.2 NO. 88
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Configure products and create specs with ease.
®
®
Water
Conserving
Product
VOLTS
30 208
30 240
30 277
40 208
40 240
ELECTRIC TANKLESS WATER HEATER - POINT OF USE
®
Instant-Flow SR - Standard Flow
GUIDE SPECIFICATION
Tankless Water Heater shall be a Chronomite
Laboratories Model
SR - _______ / _______
AMPS
with
to heat 1.0 GPM (3.8 LPM) at a temperature rise of
Made in
the USA
Unit shall be provided with Celcon waterways, and
Nichrome heating coils
OPTIONS
m PA 765 ABS Housing (P)
m
Satin Finish Stainless Steel Housing (SS)
m
High Polish Finish Stainless Steel (SSP)
m Pressure & Temp Relief Valve Assembly (TP)
m 1/2" Male NPT (NPT08)
m Disconnect Switch, Rotary 40A - Lockable
Nema 4X (2095-1)
ACTIVATION
WATTS
GPM
6240 0.65
7200 0.65
8310 0.65
8320 0.65
9600 0.65
17451 Hurley St. :: City of Industry, CA 91744 U.S.A.
Phone 800-447-4962 :: 626-937-4270
Fax 626-937-4279 :: www.chronomite.com
Get Started www.mgispecbuilder.com
VOLTS
Amps and
°F
°F TEMPERATURE RISE @
1.00 GPM 1.25 GPM
43 34
49 39
57 45
57 45
66 52
_____
OPTIONS
Volts
1.50 GPM
28
33
38
38
44
IFSR 09/06/18
